2.4.2 CS5480 Serial Port Config Item
In the Connect menu, the CS5480 Serial Port Config item allows the user to select different types of serial
communication — UART or SPI. See Figure 14.

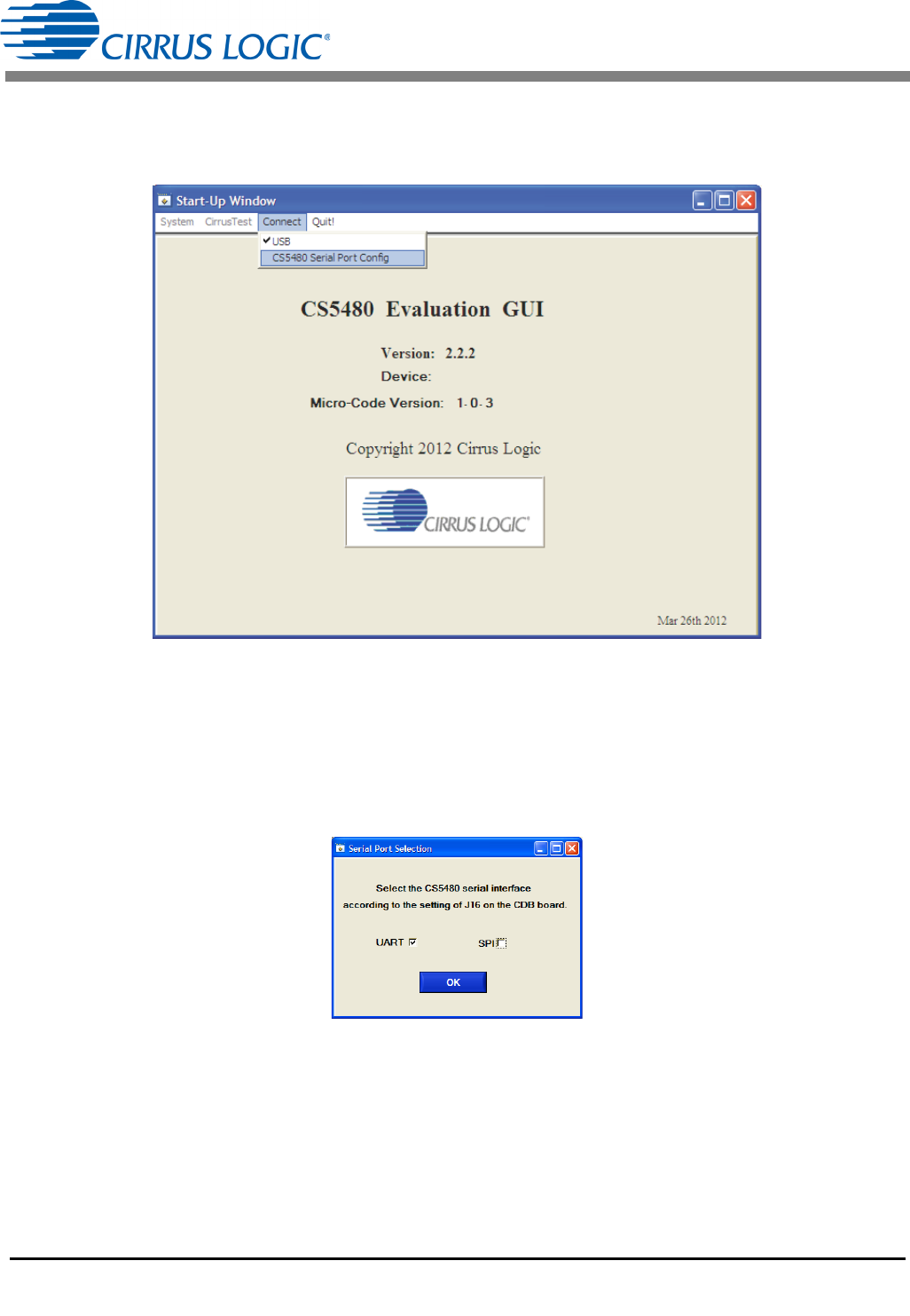

Figure 14. Connect Menu Showing Serial Connection Options
Before the software is configured, it is necessary to set J16 on the CDB5464U board to either UART or
SPI communication. To select UART communication install jumper J16 in the SSEL to UART position. To
select SPI communication install jumper J16 in the SSEL to SPI position.
To select UART communications, position jumper J16 to the SSEL to UART position and select UART in
the Serial Port Selection window. See Figure 15.
Figure 15. UART Serial Port Selection Window, UART Selected
