Evaluation Board for CS4349

Features

 Stand-Alone or PC GUI Board Control

 CS8416 Receives S/PDIF-Compatible Digital

Audio

 Headers for External PCM Audio Input

 Demonstrates Recommended Layout and

Grounding Arrangements.

 Requires Only a Digital Signal Source and

Power Supplies for a Complete Digital-to-

Analog Converter System

Description

The CDB4349 evaluation board is an excellent platform

for quickly evaluating the CS4349 24-bit, 24-pin, stereo

D/A converter. Evaluation requires an analog signal an-

alyzer, a digital signal source, a PC for controlling the

CS4349 (only required for Control Port Mode), and a

power supply. Analog line-level outputs are provided via

RCA phono jacks.

The CS8416 digital audio receiver IC provides the sys-

tem timing necessary to operate the digital-to-analog

converter and will accept S/PDIF-compatible audio da-

ta. The evaluation board may also be configured to

accept external timing and data signals for operation in

a user application during system development.

ORDERING INFORMATION

CDB4349 Evaluation Board

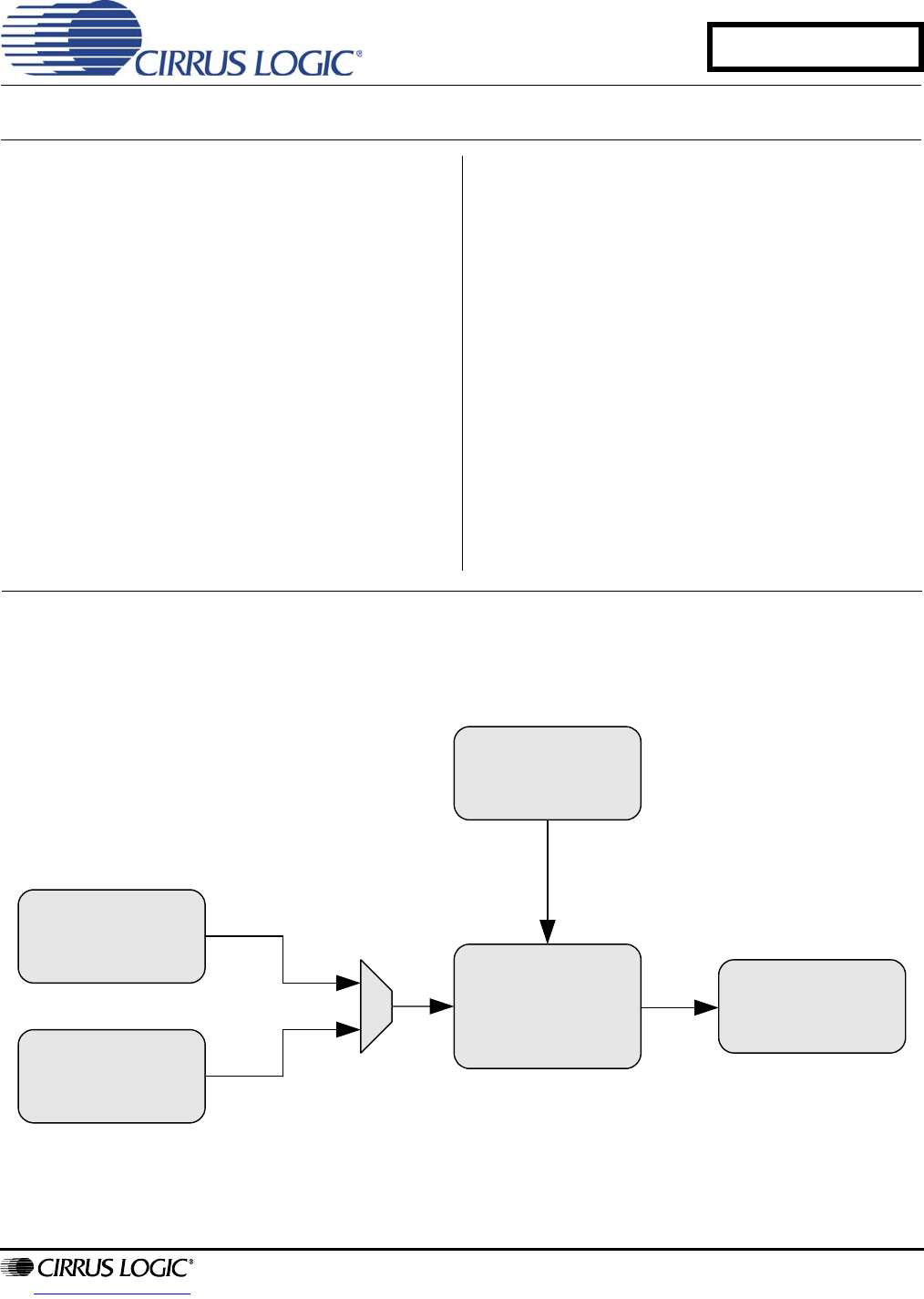

CS4349

Analog Outputs

and Filtering

Inputs for PCM

Clocks and Data

CS8416

Digital Audio

Interface

Hardware or

Software Board

Control

JUN '08

DS782DB1

CDB4349
