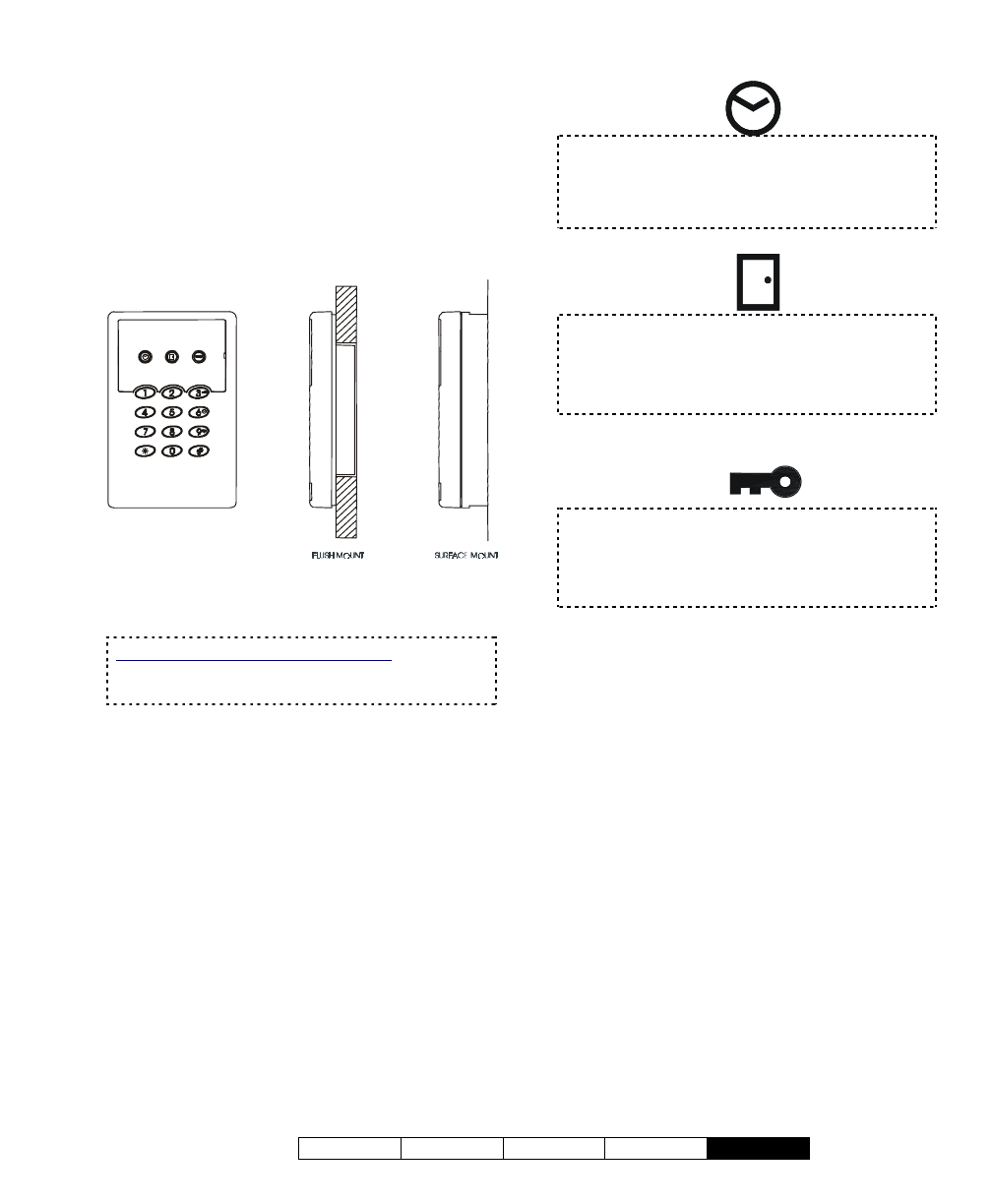

MONITOR AFx Arming Station
LEDs
The optional MONITOR AFx Arming Station
has three LEDs to indicate door, system and
arming status. The following list indicates the
LED messages and audible results from the
Arming Station. For detailed information on
Keypad Tones, see
MONITOR Keypad Tones.
Work-late and arming LEDs Alternating:
This may indicate that the arming station has been
wired incorrectly.
Work Late LED
Solid yellow lit within 15 minutes to the scheduled
closing time.
Off if the area is not scheduled or there are more
than 15 minutes to the scheduled closing time.
Door State LED
Solid red if the door is locked.
Solid green if the door is unlocked.
Flashing red at disarming if there was an alarm in
the area.
Armed LED
Solid green if the area is disarmed (Off).
Solid red if the area is set to the "Stay" arming-level
(only the perimeter sensors being monitored).
Flashing red if the area is armed (On)
Tone/Siren Result
Entry / Exit Tones Cadence similar to
LCD keypad
Fire Siren Cadence similar to
LCD keypad fire siren
Burglary Siren Continuous tone
Bad Command Double short beeps
Command
Accepted
Single long beep
Not authorized to
Perform Command
Double long beep
