User Manual

Quick Start Guide
System Map: Front & Rear Views 1 - 11
1

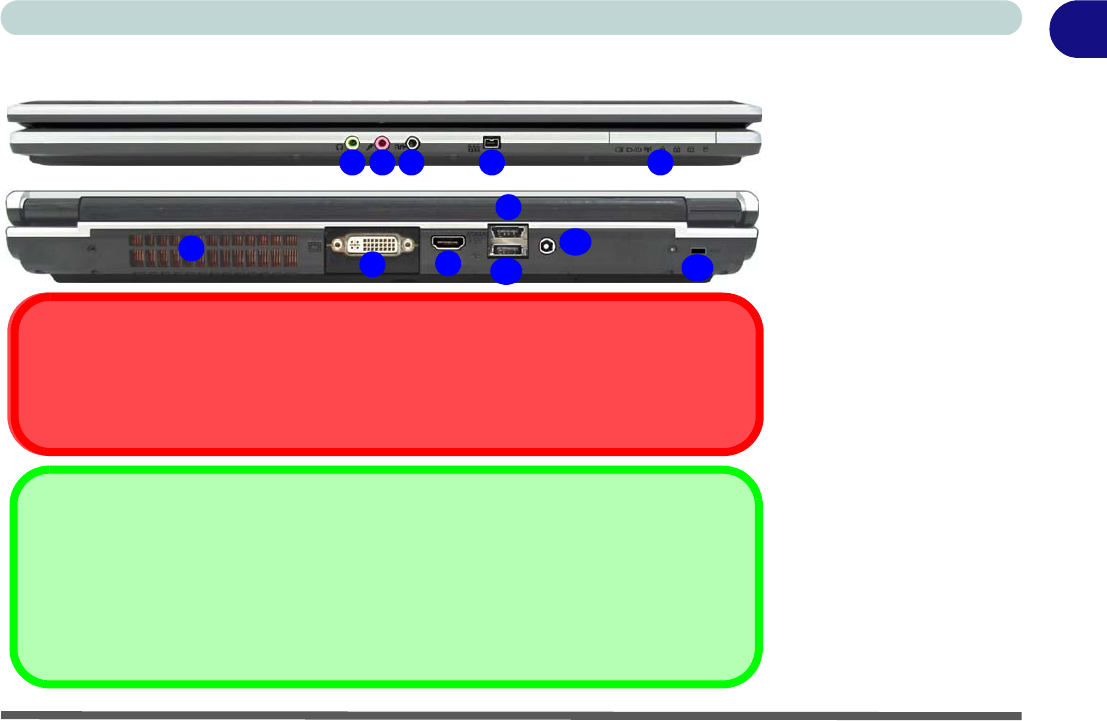

System Map: Front & Rear Views
Figure 1 - 4
Front View
1. Headphone-Out Jack
2. Microphone-In Jack
3. *S/PDIF-Out Jack
4. Mini-IEEE 1394 Port
5. LED Indicators
6. Vent/Fan Intake/
Outlet
7. DVI-Out Port
8. HDMI-Out Port
9. **Combined eSATA/
USB Port
10. USB 2.0 Port
11. DC-In Jack
12. Sec ur ity Lo ck Slot
*
Note that the S/PDIF-Out
Jack will support 5.1 surround
sound, if connected to a 5.1
amplifier.
**Note that the eSATA port
does not support hot-swap-
ping in Windows XP. Make
sure you install the Intel Ma-
trix driver for e-SATA sup-
port in Windows Vista.
1 2 3 4 5
9
12

Overheating
To prevent your computer from overheating make sure nothing blocks the Vent/Fan In-
take/Outlet while the computer is in use.
7
8
10
11
6

Mini-IEEE 1394 Port
The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices.
e-SATA Port
Note that the Intel Matrix Storage driver is required to enable the e-SATA port (see “e-SATA Port
Support” on page 7 - 33) in Windows Vista.
