Interface (Ports & Jacks)
A - 4 Interface (Ports & Jacks)
A

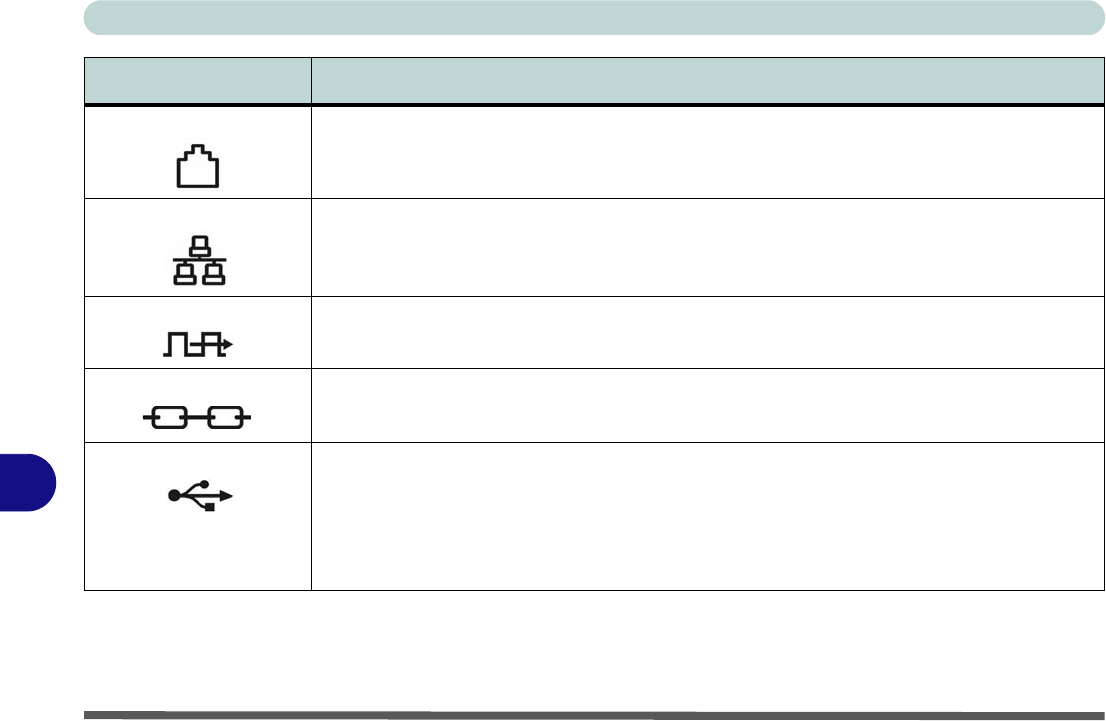

RJ-11 Phone Jack This port connects to the built-in modem. You may plug the telephone line dire ctly into this RJ-11
telephone connection.
Note: Broadband (e.g. ADSL) modems usually connect to the LAN port.
RJ-45 LAN Jack This port supports LAN (Network) functions.
Note: Broadband (e.g. ADSL) modems usually connect to the LAN port.
S/PDIF-Out Jack This S/PDIF (Sony/Philips Digital Interface Format) Out Po rt allows you to connect your DVD-
capable PC to a Dolby AC-3 compatible receiver for “5.1” or ‘dts’ surround sound.
Security Lock Slot To prevent possible theft, a Kensington-type lock can be attached to this slot. Locks can be
purchased at any computer store.
USB 2.0/1.1 Ports These USB (Universal Serial Bus) 2.0 compatible ports (USB 2.0 is fully USB 1.1 compliant) are
for low-speed peripherals such as keyboard s, mice or scanners, and for high-speed peripherals
such as external HDDs, digital video cameras or high-speed scanners etc. Devices can be
plugged into the computer , and unplugged from the computer , without the need to turn the system
off (if the power rating of your USB device is 500mA or above, make sure you use the power
supply which comes with the device).
Item Description
