4-Port SATA II Backplane 80H10230101A0 User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: [phone] Fax: [phone] Email: [e-mail]
w w w . c h e n b r o . c o m

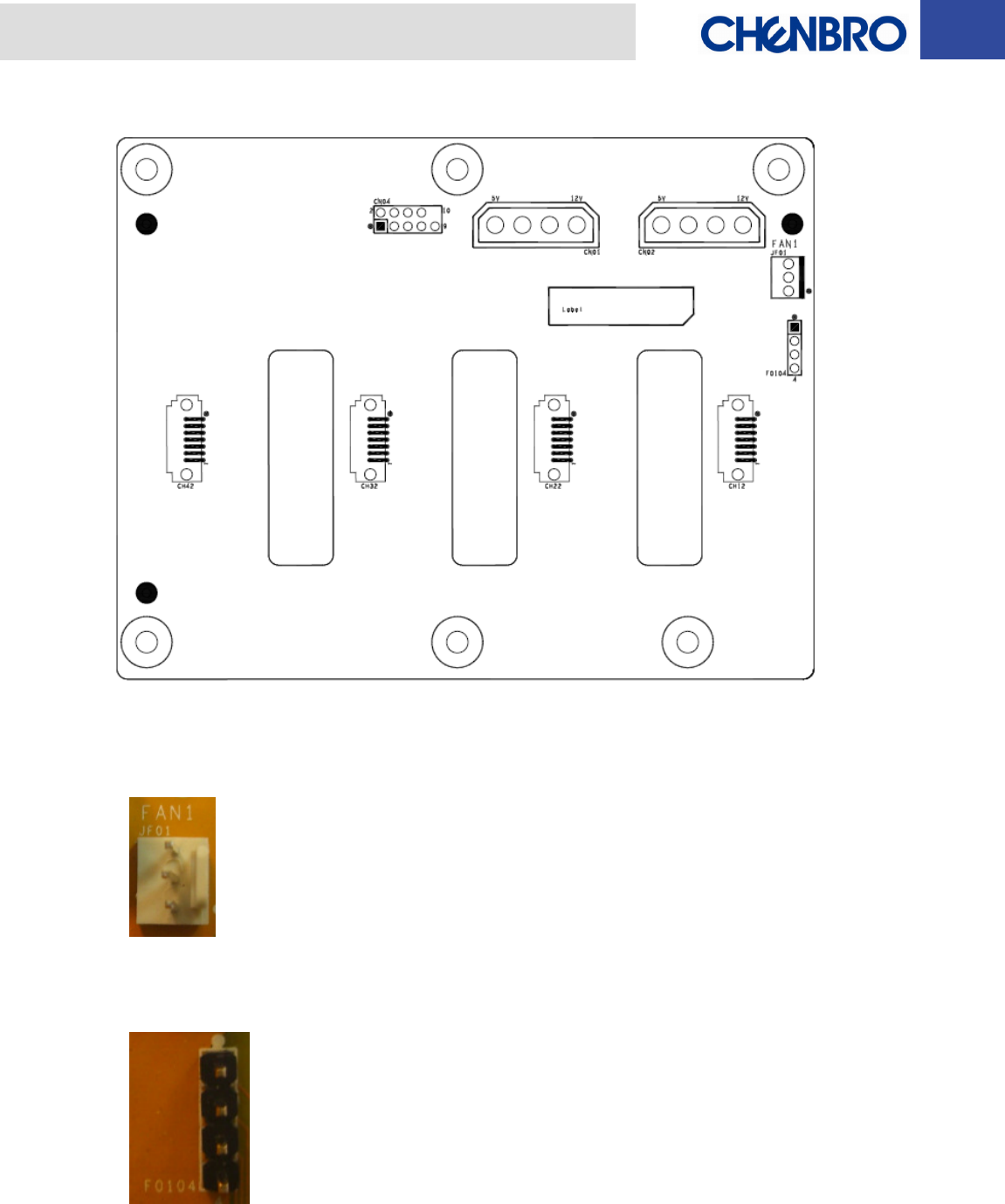

Rear View ( Host Connectors IN )
4. [CH12 / CH22 / CH32 / CH42]: connect to 7pin SATA II host
5. [JF01]: 3P3C Fan connector
6. [F0104]: Discrete HDD Fail LED Signal Input connector ( From RAID Card )
J15
HDD4
HDD3
HDD2
HDD1
Pin1
Pin1
