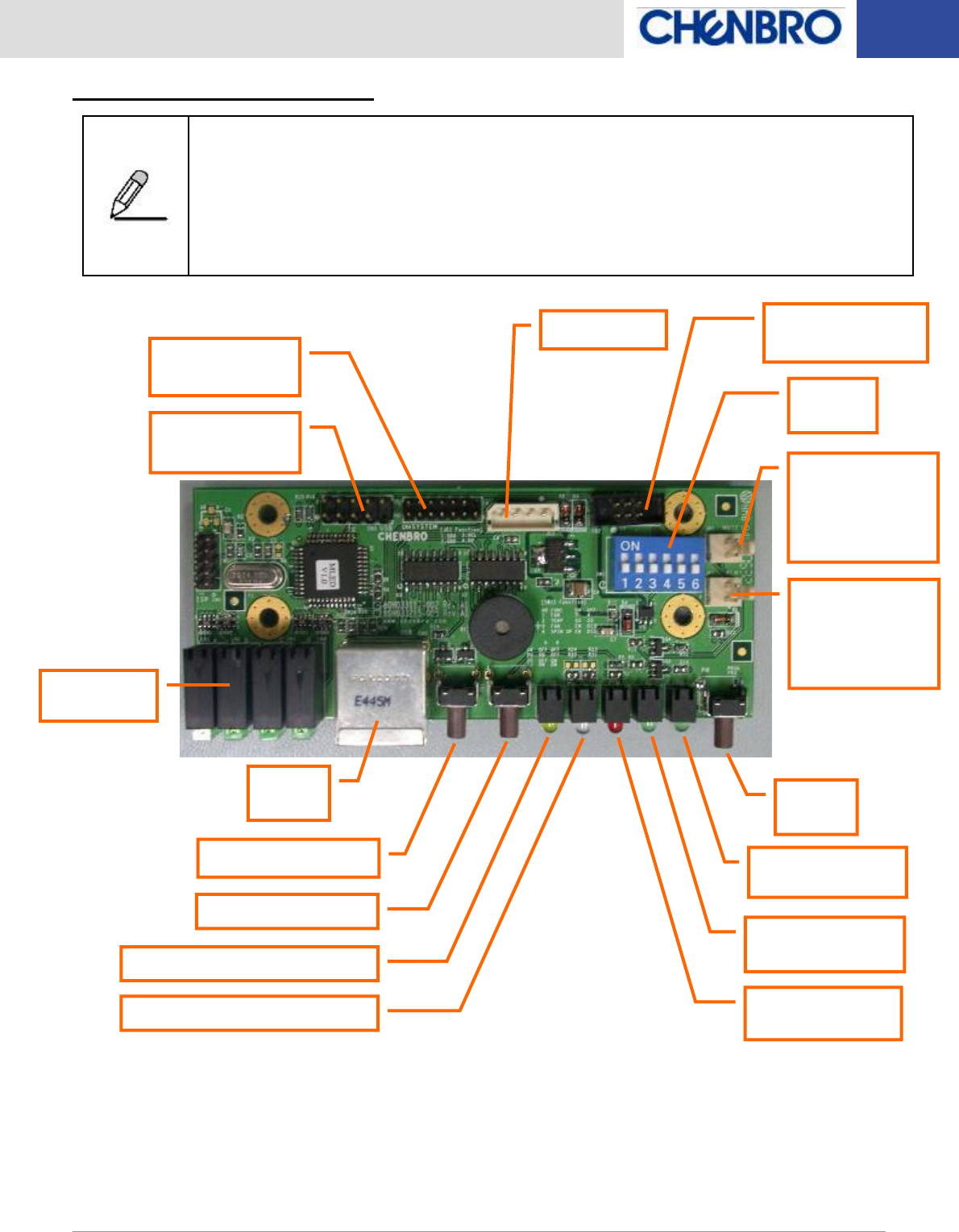

LED Board Specification
According to HDD sequential spin up setting, please refer to the following instruction. The
text printing of HDD sequential spin up function setting on older version 1U~5U LED boards
are incorrect.
The incorrect LED board version are:
80H033215-005 ver. A0~A2
The corrected LED board version are: 80H033215-005 ver. A3
USB
2.0
Yellow LED on: HDD busy
System Reset Switch
Alarm Mute Switch
Red LED on:
System Error
Power
Switch
Green LED On:
LAN 1 Busy
Green LED On:
LAN 2 Bus
y
Power supply
alarm signal
connector
(Red & Black
Cable from PSU)
Power supply
alarm mute
connector
(Yellow & Black
Cable from PSU)
Signal connector to
backplane
System signal
connector to M/B
USB 2.0
connector to M/B
Function
Switch
HDD Activity
LEDs
Blue LED on: Power On
I
2
C connector
