Manual

– 5 –
Model
Tension
Ranges [g]
*Measuring Head
Width [mm]
**Factory
Calibration
Material
TS2L-50 0 - 50 150 PA: 0.12 mm Ø
TS2L-100 0 - 100 150 PA: 0.12 mm Ø
TS2L-200 0 - 200 150 PA: 0.12 mm Ø
TS2L-500 0 - 500 150 PA: 0.20 mm Ø
TS2L-1K 0 - 1000 150 PA: 0.30 mm Ø
V-Groove
Line Speed
[m/min ... max.]
Roller Material
Standard 4000 Hardcoated aluminium
Code T 4000
Plastic (PVC red)
(same dimensions as standard roller)

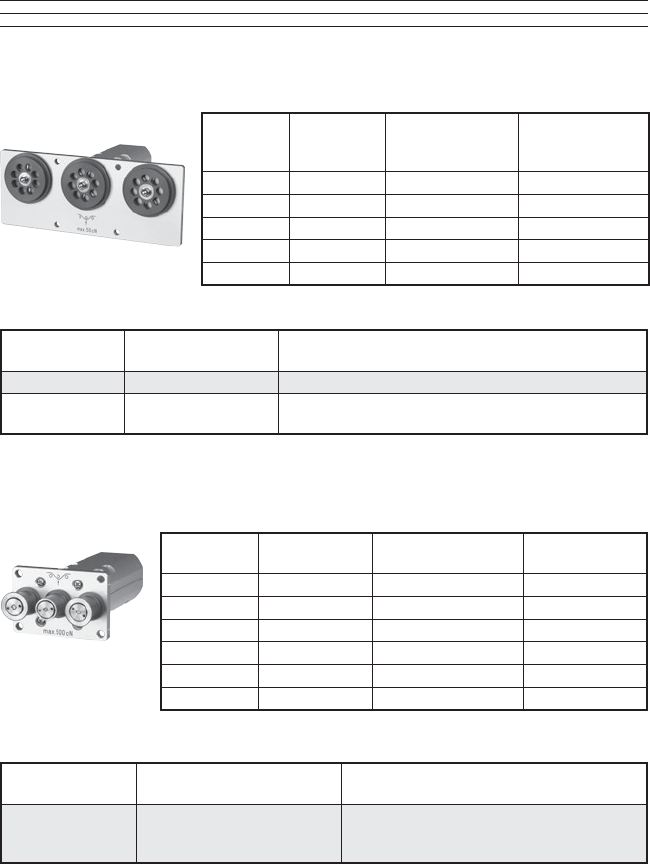

2.4 TS2L Models
2.5 T2B Models
Model Tension
Ranges [g]
*Measuring Head
Width [mm]
Roller Widths
[mm]
TS2B-100 0 - 100 60 7, 10, 15, 20
TS2B-200 0 - 200 60 7, 10, 15, 20
TS2B-500 0 - 500 60 7, 10, 15, 20
TS2B-1K 0 - 1000 60 7, 10, 15, 20
TS2B-2K 0 - 2000 120 7, 10, 15, 20
TS2B-5K 0 - 5000 120 7, 10
V-Groove
Line Speed
[m/min ... max.]
Roller Material
Standard 1000
Hardcoated aluminium
(exception: 7 mm rollers are
made of nickel-plated steel)
* Depending on model, either width of lament guide or outer distance between outside
guide rollers.
** Suitable for 95% of applications. PA = Polyamide Monolament
Should the process material differ signicant from the factory calibration material
in size, rigidity or shape, we recommend special calibration using customer supplied
material.
International unit of tensile force: 1 g = 1.02 g = 0.01 N
1 Kg = 1.02 kg = 10.00 N
TS2L Guide Rollers
TS2B1 Guide Rollers
