Master/Slave Connectivity
The Master/Slave mode allows an WELL Panel (the master) to control one or more WELL Panel products
(the slaves) without a DMX controller. One WELL Panel becomes the master when running an auto program,
or by being in Static mode.
You must configure each slave’s control panel to operate in Slave mode. During Master/Slave operation,
the slaves will operate in unison with the master.
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products/
.
Orientation
Always mount this product in a safe position, making sure there is adequate room for ventilation,
configuration, and maintenance.
Rigging
Chauvet recommends using the following general guidelines when mounting this product.
• Before deciding on a location for the product, make sure there is easy access to the product for
maintenance and programming purposes.
• Make sure that the structure onto which you are mounting the product can support the product’s
weight. See the Technical Specifications
for weight information.
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power linking cables to reach.
• The bracket adjustment knobs allow for directional adjustment when aiming the product to the desired
angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs.
Procedure
The WELL Panel comes with a bracket to which you can attach a mounting clamp directly. Mounting
clamps are sold separately. Make sure the clamps are capable of supporting the weight of this product.
Use at least one mounting point per product. For the CHAUVET Professional line of mounting clamps, go
to http://www.trusst.com/products
.

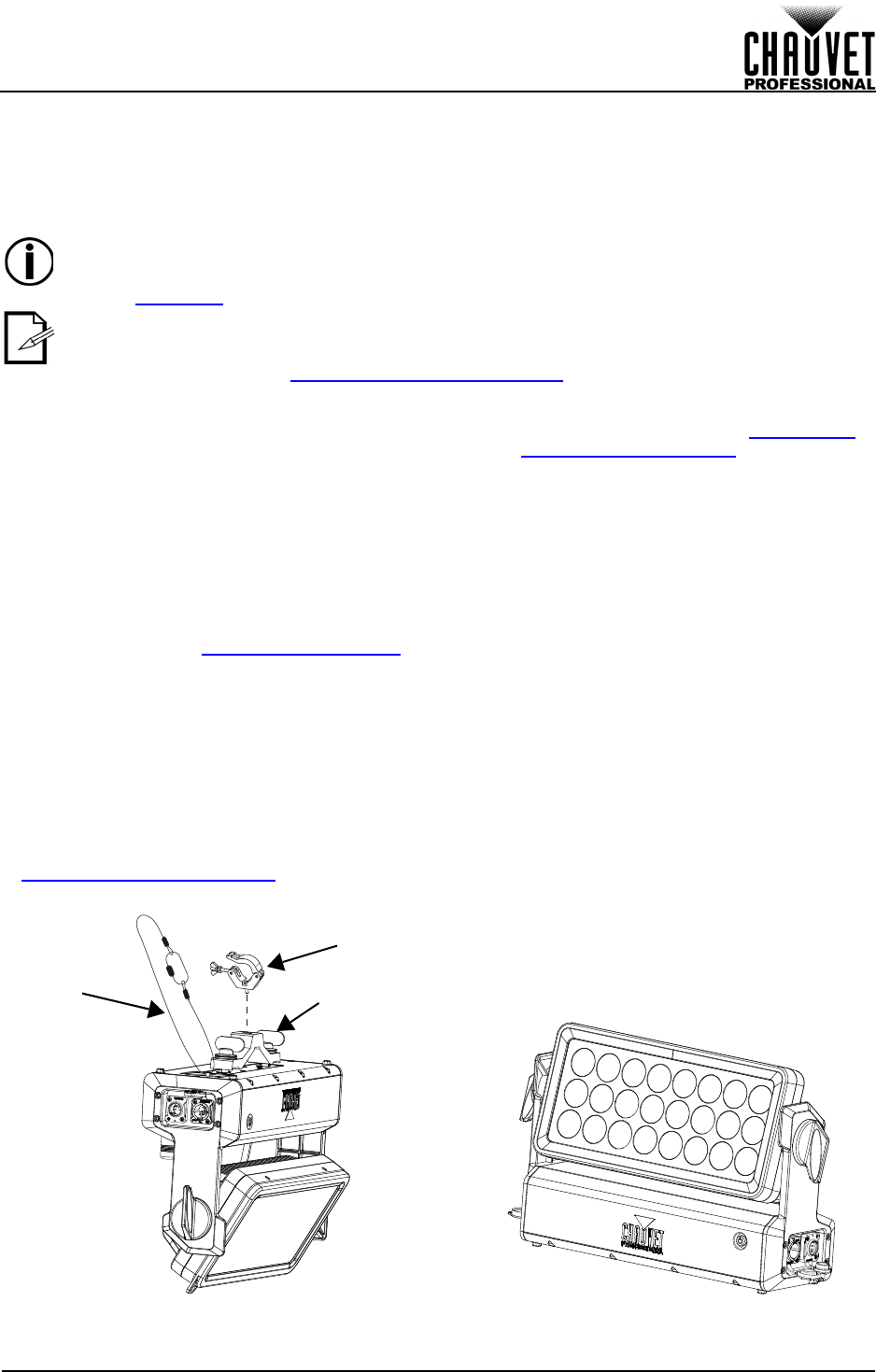

Mounting Diagram
DO NOT connect a DMX controller to products operating in Master/Slave mode. The DMX
controller signals may interfere with the signals from the master.
•The Operation
section of this manual provides detailed instructions on how to configure
the master and slaves.
• If you are not familiar with or need more information about DMX standards, or the DMX
cables needed to link this product to a DMX controller, download the DMX Primer from
the Chauvet website: www.chauvetprofessional.com
.
Mounting clamp
Safety cable
Omega bracket
Overhead Mounting
Floor Mounting
