CPI PDU User Manual Rev. 10.0. June 28, 2010
25
Step 3: Logging onto the PDU

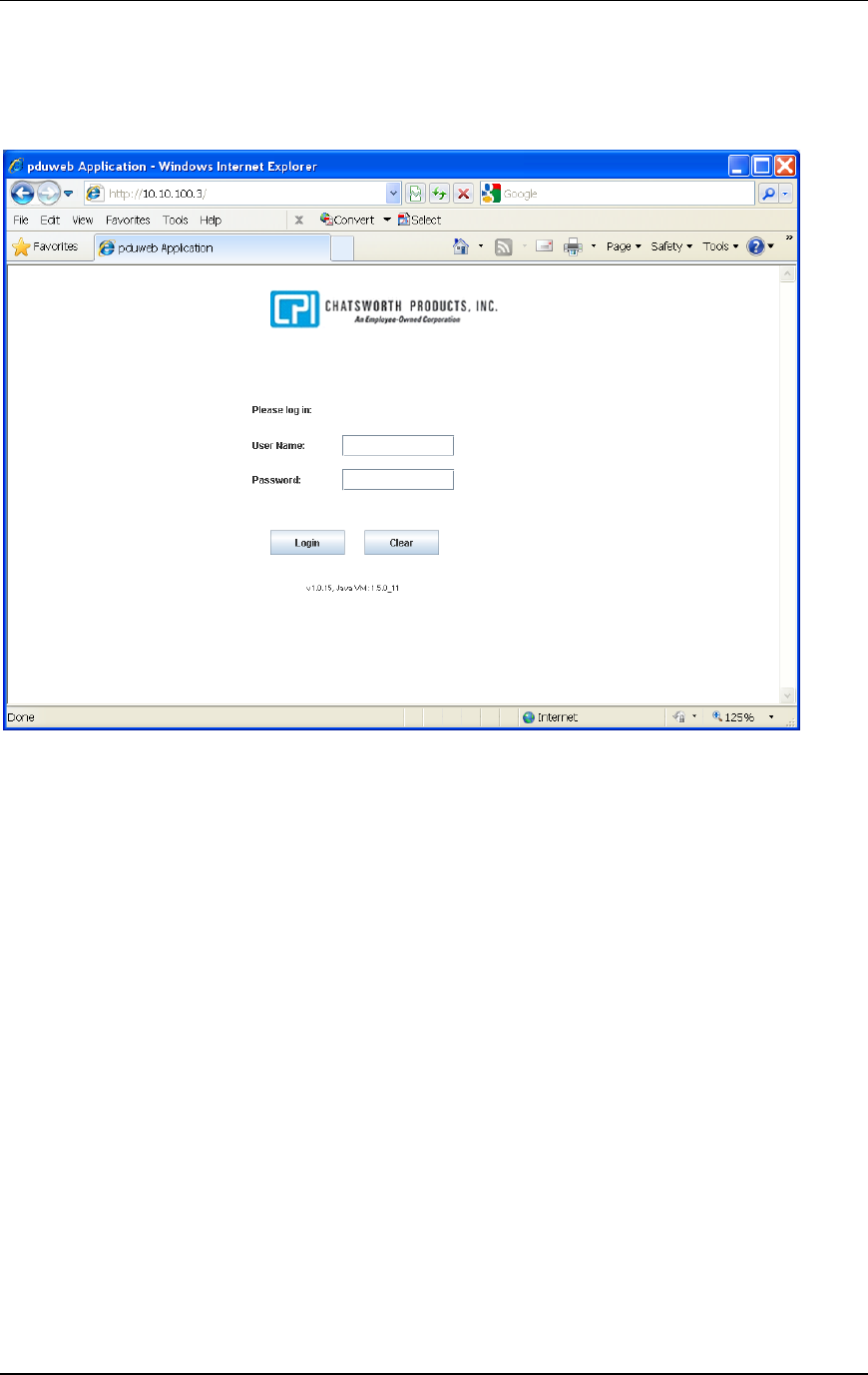

The login panel will have a field for user name and password. The PDUWeb applet’s
version number and the Java VM version number will also be displayed.
• Enter the user name in the user name field and the password in the password field.
For the initial log on, enter the default user name (admin) and password (admin).
If you already changed the user name and password prior to accessing the PDU with
a web browser, use the assigned user name and password.
• Press the [Login] button to access the PDU or press the [Clear] button to clear the
fields.
