CPI PDU User Manual Rev. 10.0. June 28, 2010
14

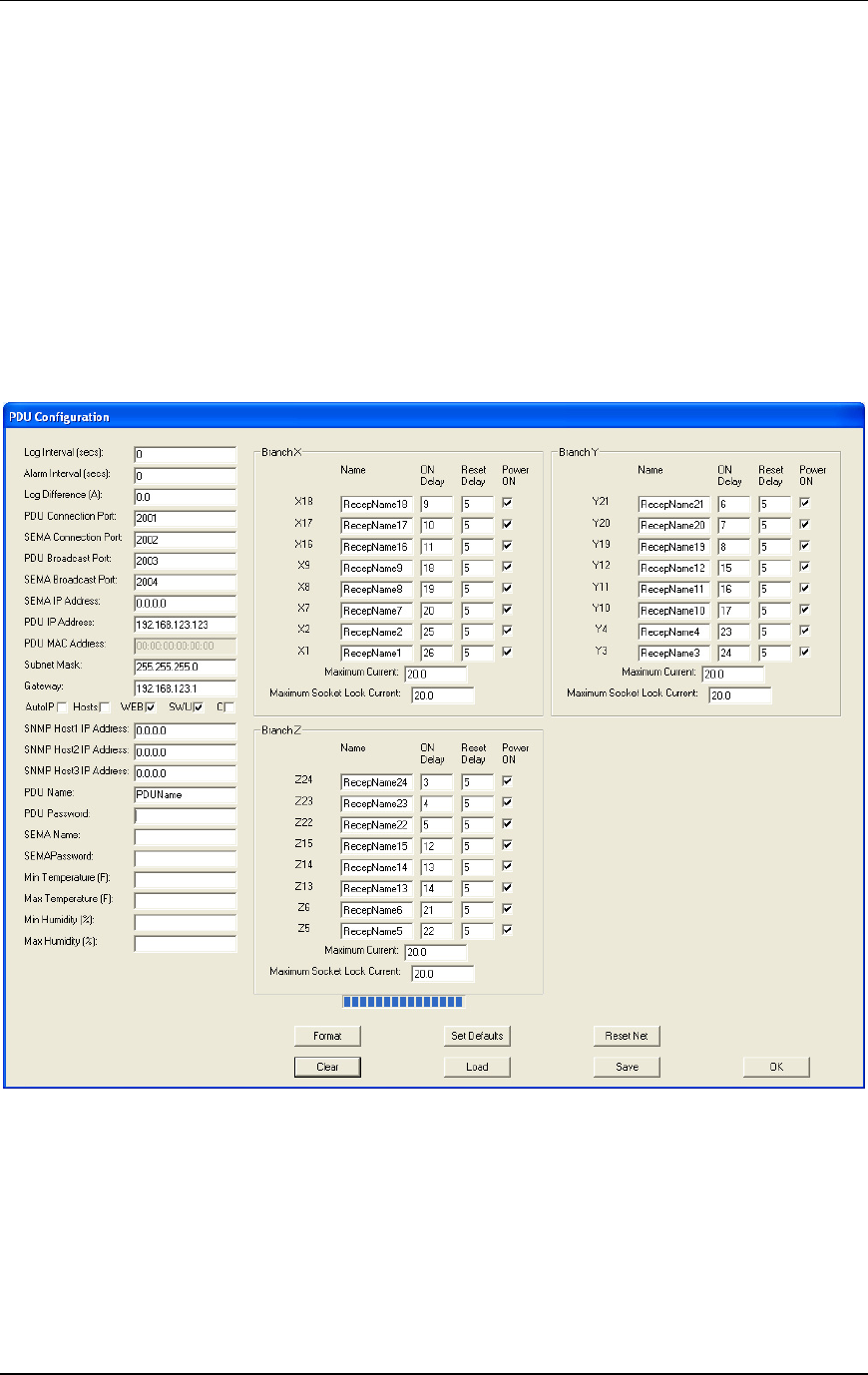

To Configure the PDU for use with SEMA
If you are configuring the PDU for use with SEMA, fill in all fields, set a unique PDU IP
Address, set the SNMP Host Address fields to 0.0.0.0 (disabled) and leave the AutoIP
and Hosts checkboxes unchecked. See the example below.
• Enter temperature and humidity limits if a Temperature and Humidity Sensor (P/N
35941-132) is attached to the PDU.
• A description for each input field is listed on pages 16 through 18.
• [Save] your settings and [Reset Net] to apply any network changes then click [OK] to
return to the main menu.
• Disconnect the serial connection and connect the ENET port on the PDU to your
network.
• You will now be able to access the PDU through SEMA.
