CPI PDU User Manual Rev. 10.0. June 28, 2010
10
• Start the PDU Serial Access program by double-clicking on the program icon.

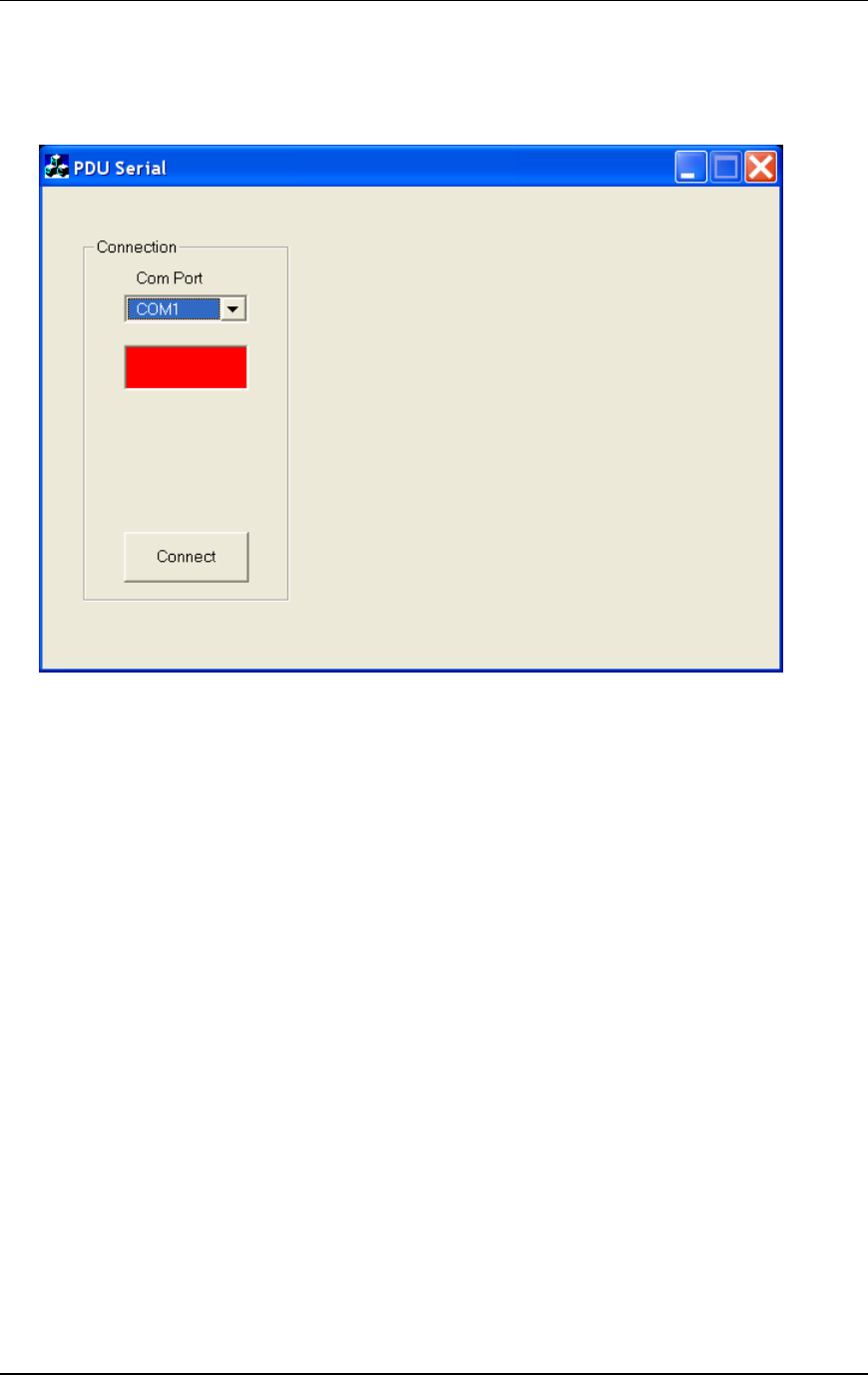

• The following screen should display:
• Select the appropriate COM Port from the drop down list and click on the [Connect]
button to connect to the PDU and display the main menu.
