Assembly Instruction

2of2

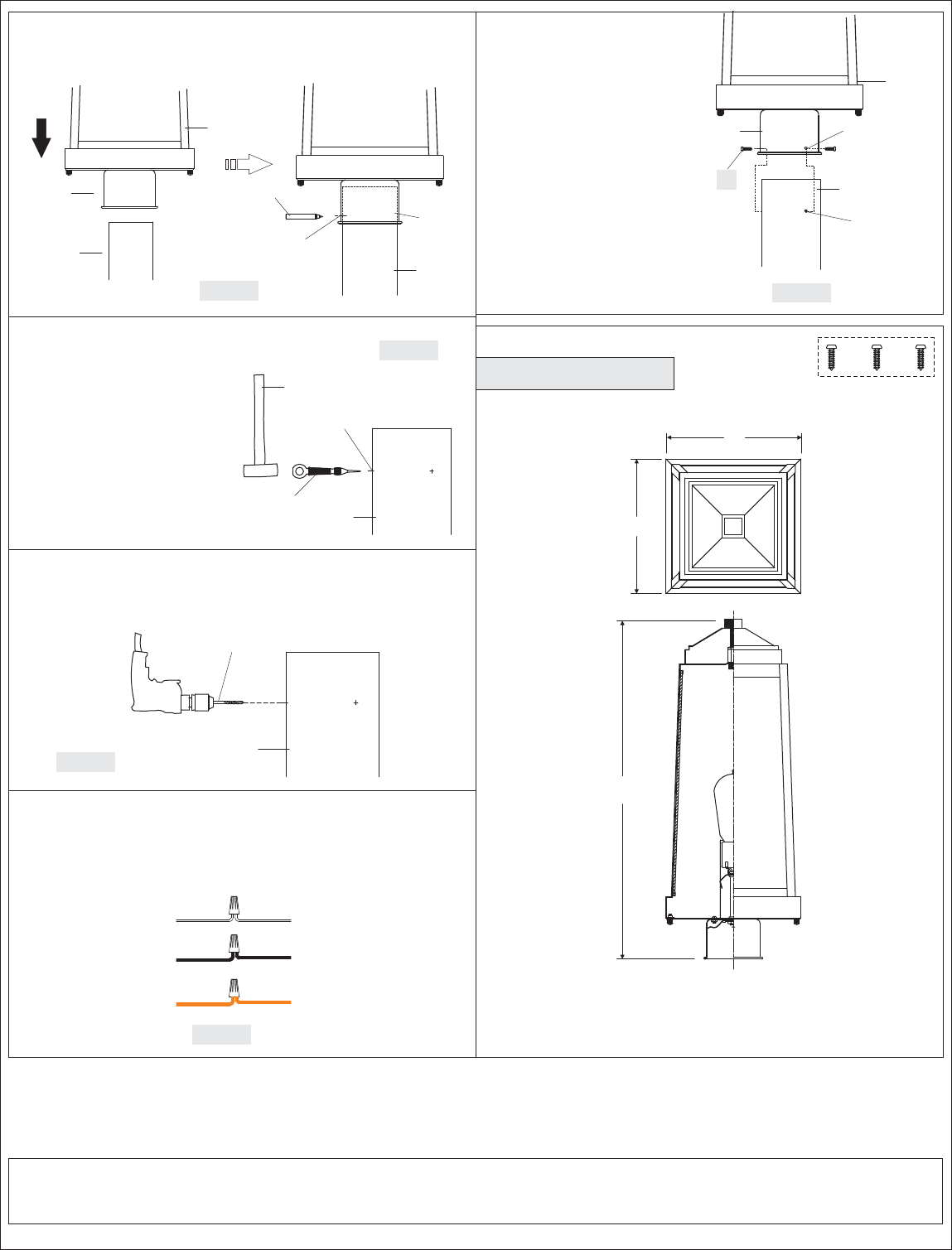

STEP 4 - Mark the Location for the 3 Mounting Holes
A. Place the light fixture onto the post and mark the location of the 3
mounting holes on the fixture fitter onto the post with the marking
pen.
Fixture
Fitter
Marking Pen
Mounting
Hole
STEP 5 M C
EM H
- arking the enter of
ach ounting ole
A. Remove the light fixture. Using
the center punch and hammer
marking the center of each
mounting hole location that is
marked with the marking pen.
Center Punch
Hammer
Marking
Post
Lighting
Post
Post
STEP 6 Drill Holes-
A. Using the 1/16” bit and drill, drill a pilot hole completely through the
post at each (3) locations marked in step 5 above.
1/16” bit and drill
STEP 7 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from outlet box
White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from fixture
Post
Post
STEP 8 Attach the fixture to
the Post Mount
-
A. Place the fixture on the post
lining up the mounting holes
on the fixture fitter with the
holes on the post. Use the
Mounting Screws (A) to
attach the fixture to the post.
Your fixture is now
assembled and ready
to use. Enjoy!
Post
Hole
Fixture
Fitter
Mounting
Hole
Post
Lighting
A
Fixture
Fitter
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
FINISH: WESTERN BRONZE
20”
NOTE: ALL DIMENSIONS ARE ROUNDED UP
TO THE NEAREST 1/4"
8”
8”
