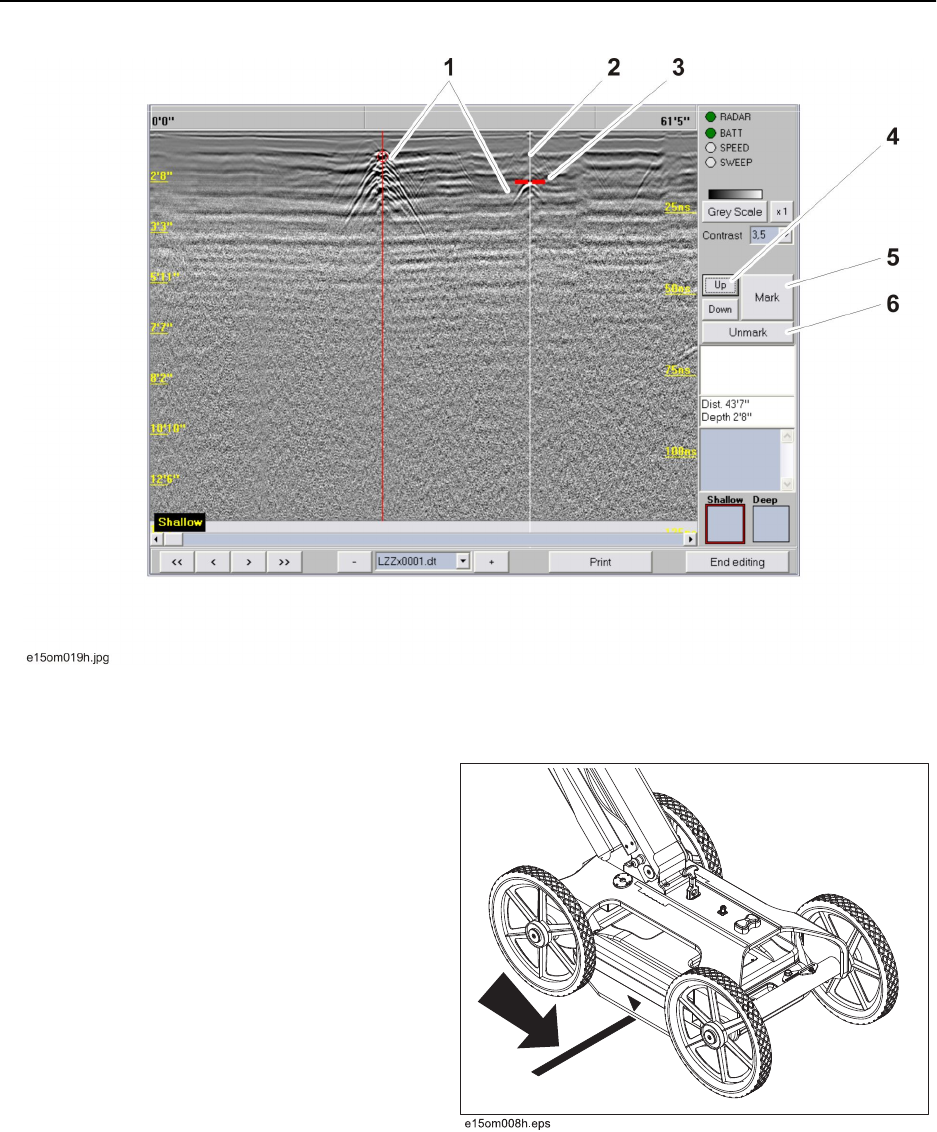

1. When a hyperbola (1) is appears , move the cart in the opposite direction. A vertical white line (2) will
display on the radar map. Move the cart until the white line is in the center of the hyperbola.
2. Mark the ground: Use spray paint to mark the
location on the ground (shown). A red arrow
on the side of the antenna corresponds to the
white line on the radar map.
3. Mark the acquisition map:
• Using the Up/Down buttons (4), position
the red horizontal cursor (3) at the top of
the hyperbola.
• Press the MARK button (5) to open the
Mark Window. (See next page.)
