2450GR Operator’s Manual Controls - 27
Software
CMW
Mark Window

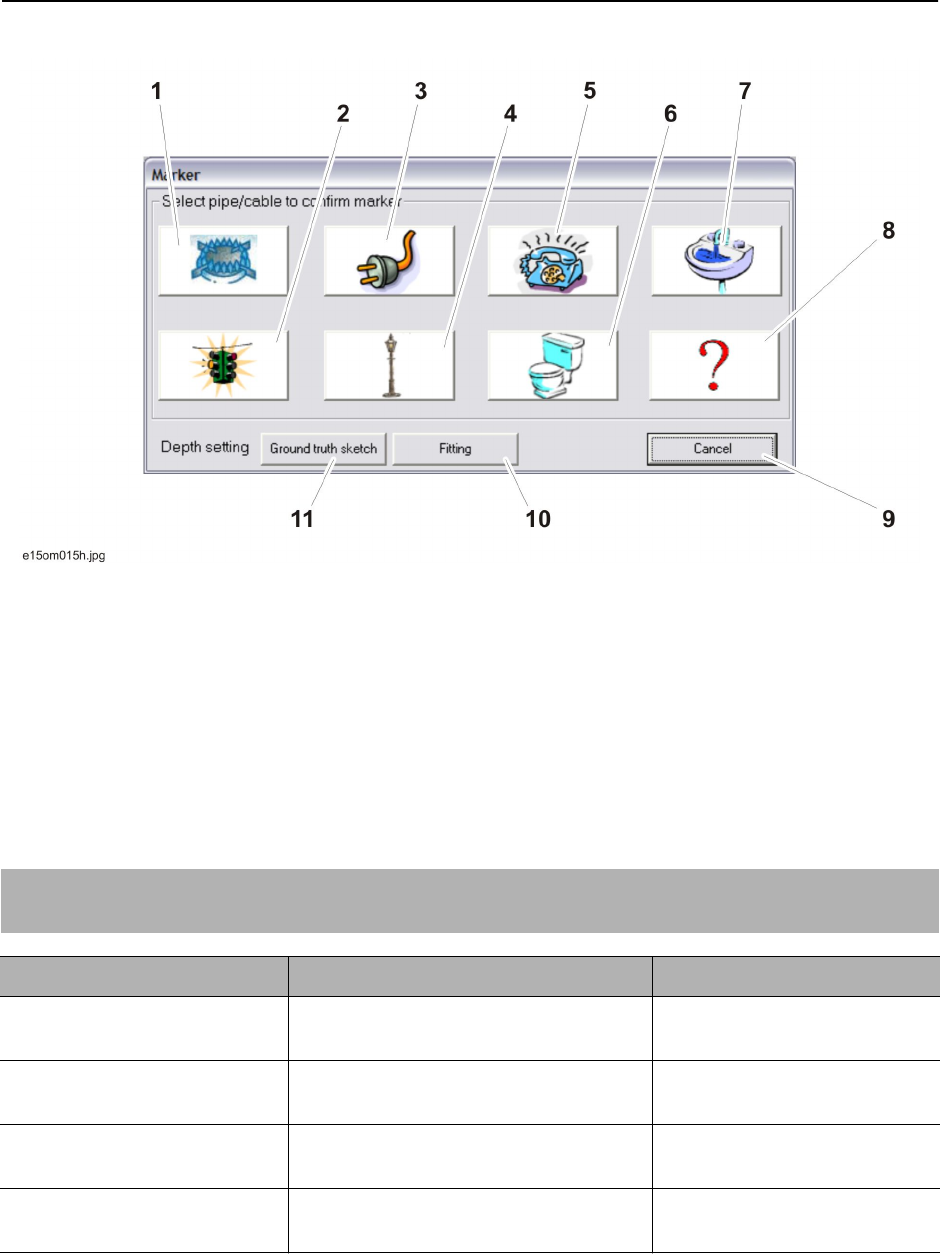

1. Gas pipe button
2. Traffic control cable button
3. Electrical cable button
4. Street light cable button
5. Phone cable button
6. Sewer pipe button
7. Water pipe button
8. Unknown object marker
9. CANCEL button
10. FITTING button
11. GROUND TRUTH SKETCH button
NOTICE: The 2450GR can not identify types of pipe or cable. Find this information from other sources,
such as opening manholes or consulting technical maps.
Item Description Notes
1. Gas pipe button To mark a radar image as a gas pipe,
press.
2. Traffic cable button To mark a radar image as a traffic
cable, press.
3. Electrical cable button To mark a radar image as an electrical
cable, press.
4. Street light cable button To mark a radar image as a street
light, press.
