2450GR Operator’s Manual Controls - 25
Software
CMW
Acquisition Editing Window

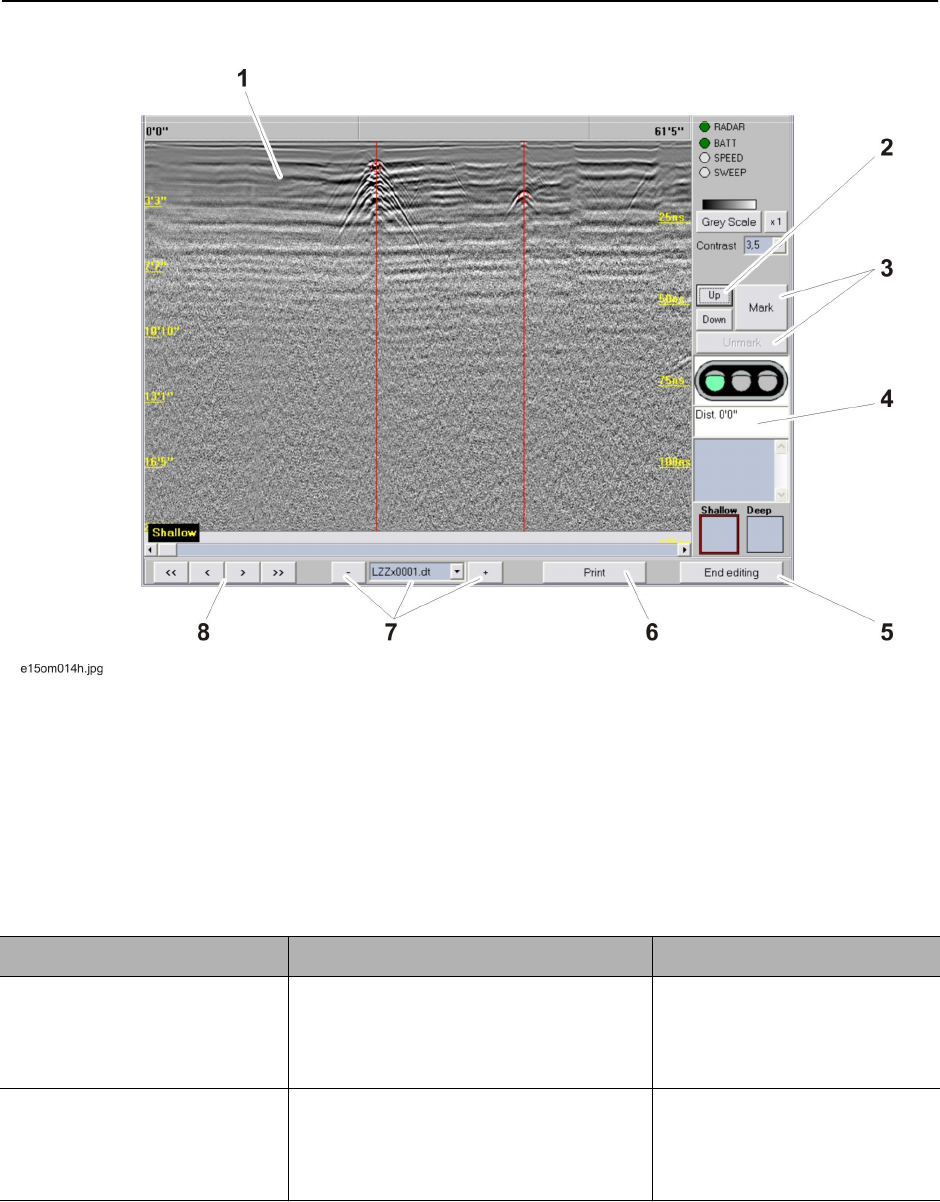

1. Radar map display
2. UP / DOWN buttons
3. MARK / UNMARK buttons
4. Distance display
5. END EDITING button
6. PRINT button
7. - / File Name / + buttons
8. Directional arrow buttons
Item Description Notes
1. Radar map display Displays real time ground penetrating
radar image. Also displays survey
name, scan number, depth, and
distance traveled.
2. UP / DOWN buttons To move the cursor up, press UP.
To move the cursor down, press
DOWN.
