2450GR Operator’s Manual Controls - 23
Software
CMW
New Acquisition Window

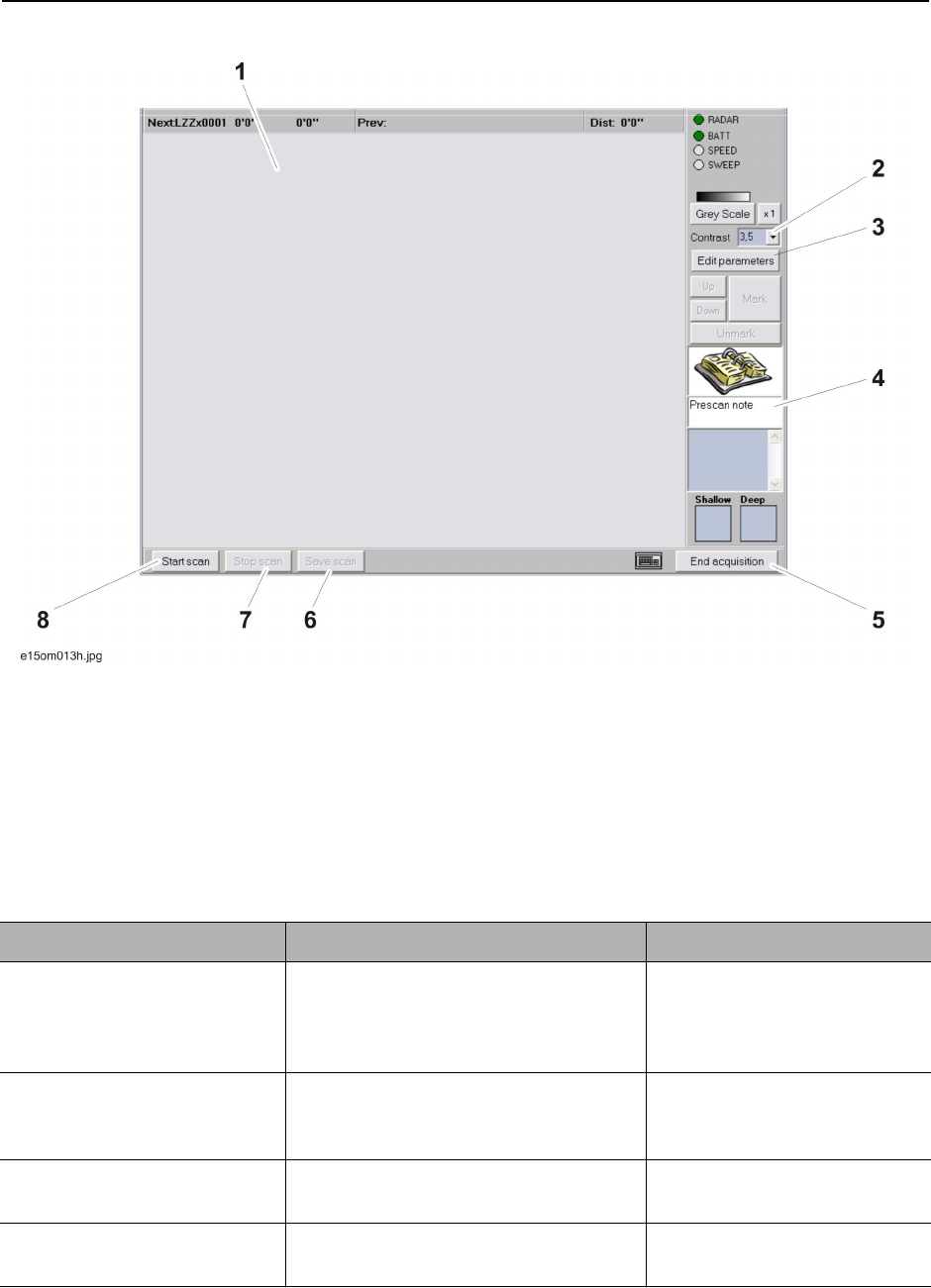

1. Scan display window
2. Contrast setting
3. Edit Parameters
4. Notes
5. END ACQUISITION button
6. SAVE SCAN button
7. STOP SCAN button
8. START SCAN button
Item Description Notes
1. Scan Display Window Displays real time ground penetrating
radar image. Also displays survey
name, scan number, and distance
traveled.
2. Contrast setting
window
To increase or decrease radar map
contrast, press, then select the
desired setting.
3. Edit Parameters
window
Press to open the Edit Parameters
window.
4. Notes window To enter notes, press, then type into
the text box.
