2450GR Operator’s Manual Controls - 17
Control Unit
CMW
Control Unit

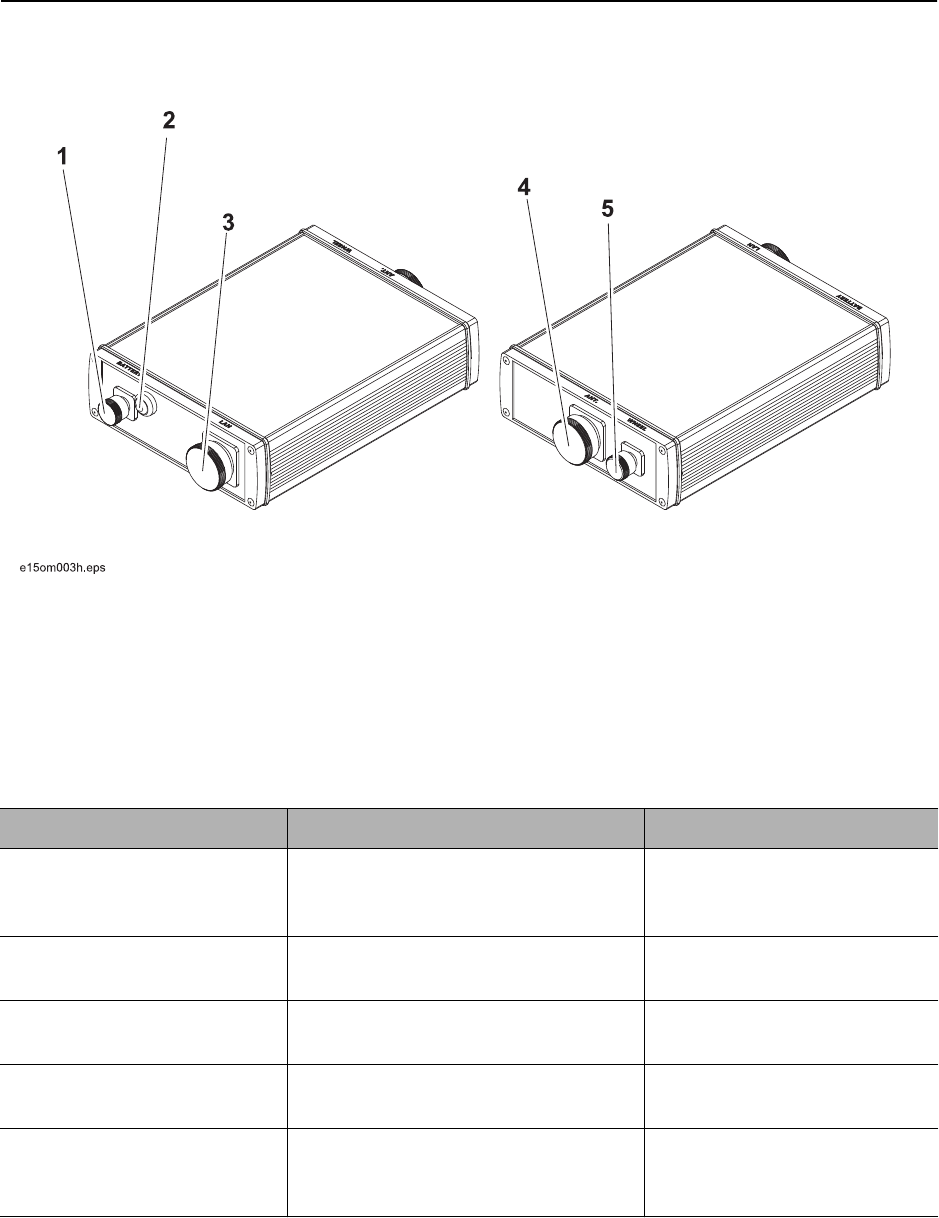

1. Power supply port (BATTERY)
2. Network port (LAN)
3. Antenna port (ANT 1)
4. Wheel position sensor port (WHEEL)
5. Power button.
Item Description Notes
1. Power supply port
(BATTERY)
Connects the control unit to the
battery.
Blue indicator lights when
system is powered by the
battery.
2. Network port (LAN) Connects the control unit to the
notebook PC.
3. Antenna port (ANT 1) Connects the control unit to the
antenna.
4. Position sensor port
(WHEEL)
Connects the control unit to the cart
wheel position sensor
5. Power button To start system, press.
To stop system, press again.
Blue indicator lights when
system is on.
