Controls - 16 2450GR Operator’s Manual
Antenna
CMW

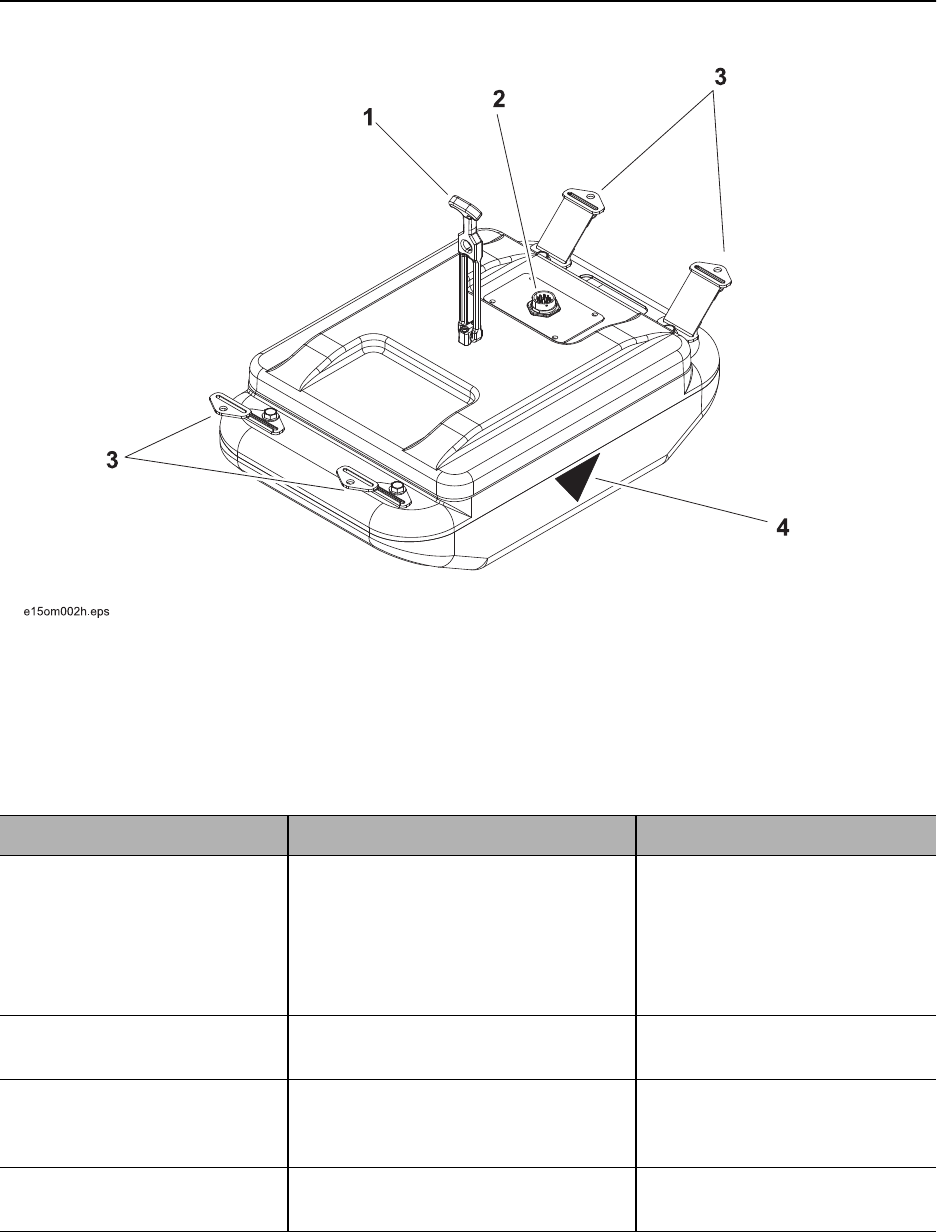

Antenna
1. Antenna lift/lower strap
2. Control unit port
3. Cart mounting pins
4. Antenna centerpoint marker
Item Description Notes
1. Antenna lift/lower strap Connects to a knob on the top of the
cart to lift the antenna off the ground.
During operation, disconnect strap
from knob so antenna contacts
ground.
1. Control unit port Connects to the control unit antenna
port (ANT 1).
2. Cart mounting straps To connect antenna to cart, align
cart with antenna mounts and
secure with straps.
3. Antenna centerpoint
marker
Denotes the centerpoint of the
antenna.
