FibeAir 1500 Installation & Operation Manual Chapter 5. Operation
Revision 2.0 The Work Area Window 5-5

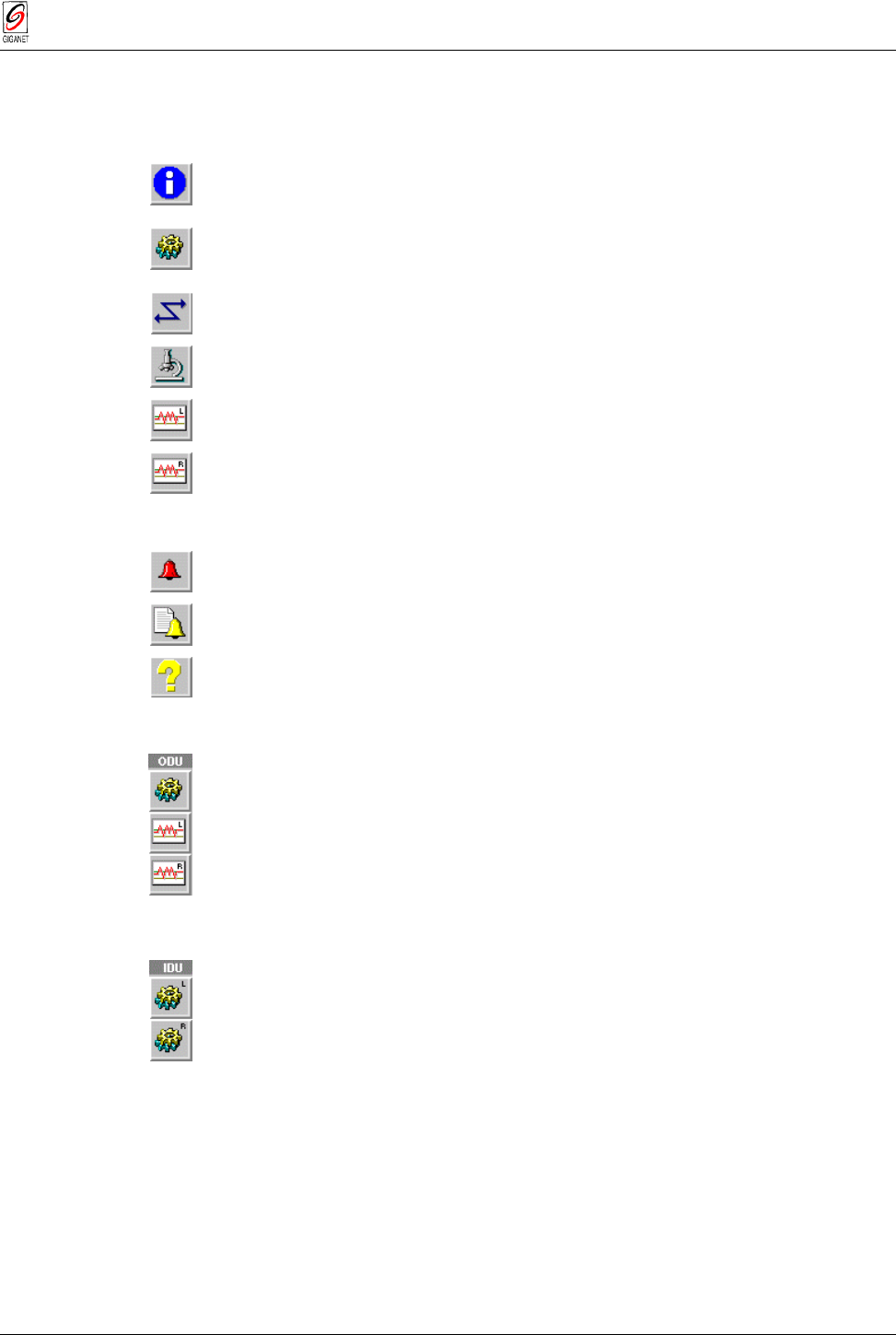

General Toolbar
Key Explanation
General Information − view and define system parameters such as link
definitions, contacts, system up time and IDU and ODU serial numbers.
System Configuration − view and define general settings such as Local
Device Communications, managers list and the alarms reported to them.
Set Frequency − define the frequency of the local and remote units.
Maintenance − perform loopbacks and insert alarm signals.
Local RSL Monitoring − attain a graph of the local received signal level.
Remote RSL Monitoring − attain a graph of the remote received signal level.
Key Explanation
Alarm Status − view the current alarm status.
Alarm Log File − view the log file.
Help − starts the online help system.
ODU Toolbar
ODU Configuration − view and set up the radio link parameters.
Local RSL Statistics Monitoring − view local received signal level data.
Remote RSL Statistics Monitoring − view remote received signal level data.
IDU Toolbar
Local Unit Configuration − define Local IDU parameters.
Remote Unit Configuration − define Remote IDU parameters.
