SDH Performance Monitoring
There are two SDH Performance Monitoring options: Local and Remote.
Select the unit you are interested in and follow the steps below.
1. To view SDH Performance Monitoring screen, select Statistics ½
SDH Performance Monitoring ½ Local/Remote in the Work Area
window. The SDH Local/Remote Performance Monitoring window is
displayed.

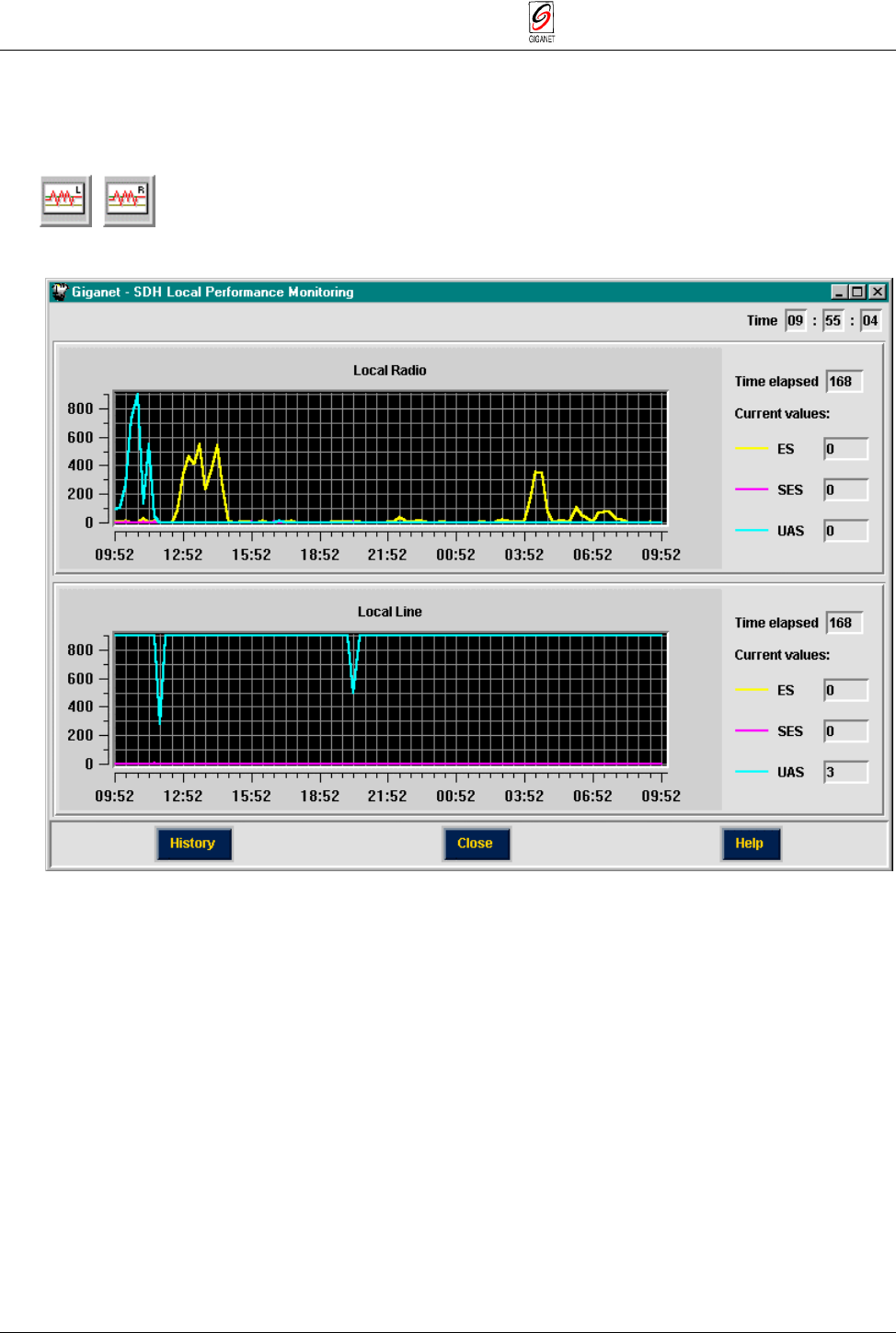

Figure 5-29 SDH Local Performance Monitoring
The SDH Local/Remote Performance Monitoring window displays the signal
level measured every 15 minutes over the last 24 hours. The window is split
into two sections: the top section displays the Local Radio monitoring data
and the bottom section displays the Remote Line monitoring data.
Each section displays the following details:
The Time Elapsed field displays the number of seconds since the current
monitoring period commenced.
The ES field displays the number of errored seconds in the period that
elapsed.
The SES field displays the number of severely errored seconds in the
period that elapsed.
The UAS field displays the number of unavailable seconds in the period that
elapsed.
