2. Click on the History button to open the RSL Local/Remote Performance
History window.

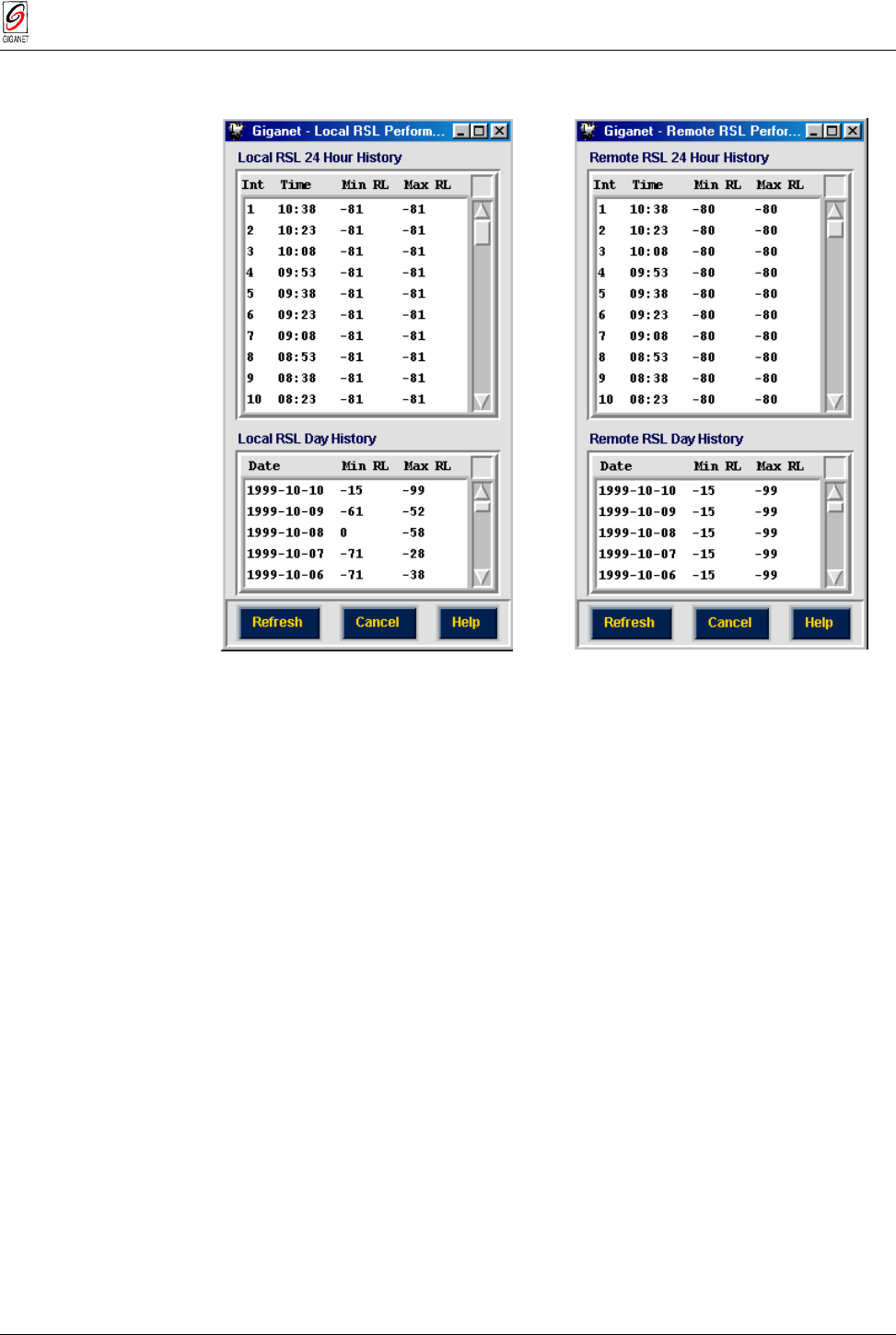

Figure 5-27 Local RSL Performance
History Window
Figure 5-28 Remote RSL
Performance History Window
The Local RSL 24 Hour History and the Remote RSL 24 Hour History
sections display the following details about the radio signal over the last 24
hours for the local unit and remote unit, respectively:
Int the time interval in which the measurement was made
Time the actual time when the measurement was made (according
to the internal IDU clock).
Min RL the minimum received level measured during the interval
Max RL the maximum received level measured during the interval
The
Local RSL Day History and the Remote RSL Day History sections
display the following details about the radio signal over the last month for
the local unit and remote unit, respectively:
Date the date in which the measurement was made (according to
the internal IDU clock)
Min RL the minimum received level measured during the date above
Max RL the maximum received level measured during the date above
Note : If there is no communication betweeen the local and remote units, the Remote
Performance History window will not be available.
