5.5.4. Statistics Menu Options
RSL Monitoring
1. Select Statistics ½ RSL Monitoring in the Work Area window.
The RSL Monitoring window is displayed.

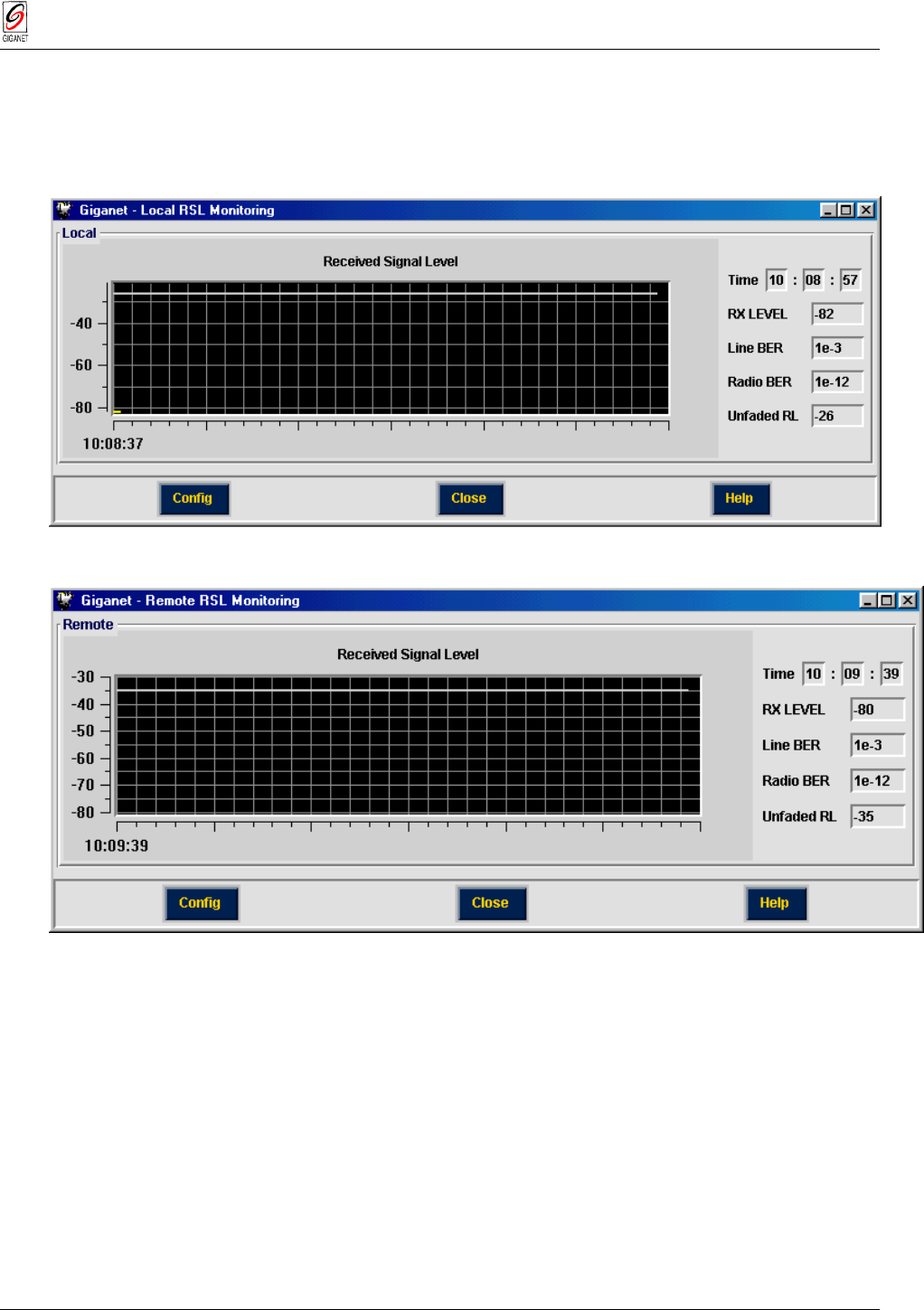

Figure 5-23 Local RSL Monitoring Window
Figure 5-24 Remote RSL Monitoring Window
The RSL Monitoring windows display the current received signal level
status and values for both the Local unit (top of screen) and Remote unit
(bottom of screen):
The RX LEVEL field displays the current receive signal level.
The Line BER field displays the current Bit Error Rate of the line.
The Radio BER field displays the current Bit Error Rate of the radio.
The Unfaded RL field displays the expected receive signal level.
Note : If there is no communication between the local and remote units, the Remote RSL
Monitoring window will not be available.
