End to end voice channel option – E1 byte at the SDH RSOH –
activate/passthrough.
User channel – The 64 kbps user channel – F1 byte at the SDH RSOH
– activate/passthrough
E1 wayside – enable/disable the wayside channel.
JO operation – JO byte is used as a trace identifier at the SDH RSOH.
If JO is activated, use the “Tx JO” and “Exp JO” to define IDU identifier
string and “AIS” mode of operation.
DCCR – activate/passthrough the RSOH communication channel
normally used for inband TMN.
B1 operation – activate/passthrough B1 byte at the RSOH. B1 is used
to perform parity byte checks for monitoring SDH quality and service.
7. Click Apply.
The definitions and settings determined in the SDH Configuration
window are saved.
8. Click Cancel.
The SDH Configuration window is closed.
e) System Settings
1. Select Configuration ½ System Settings in the Work Area window.
The System configuration window is displayed.

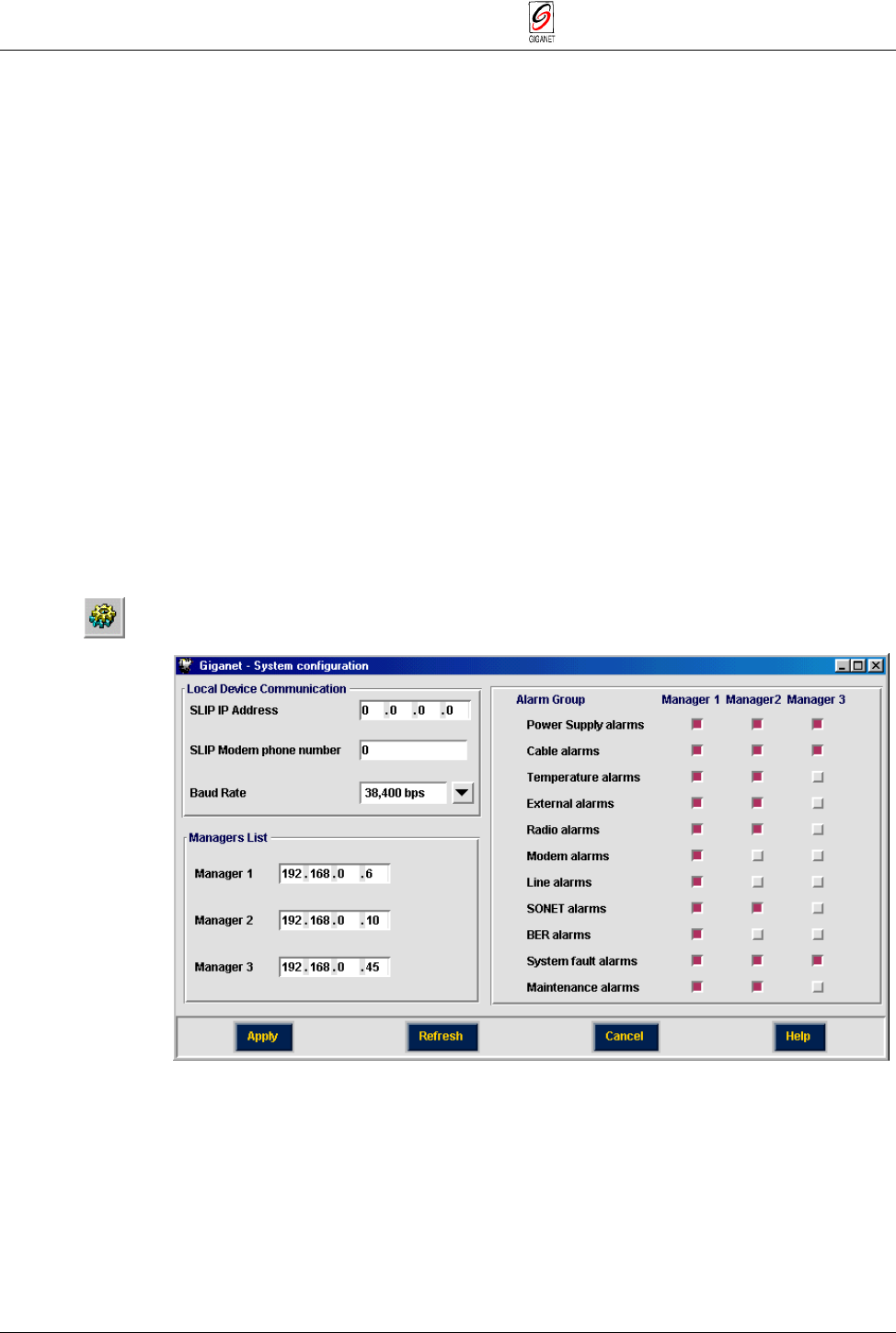

Figure 5-17 System Configuration Window
The System Configuration window is divided into three sections:
■ Local Device Communication Parameters
■ Managers List
■ Alarm Groups.
