d) Sonet/SDH Configuration
1. To define Sonet/SDH Configuration, select Configuration ½
Sonet/SDH in the Work Area window. The Sonet/SDH Configuration
window is displayed.

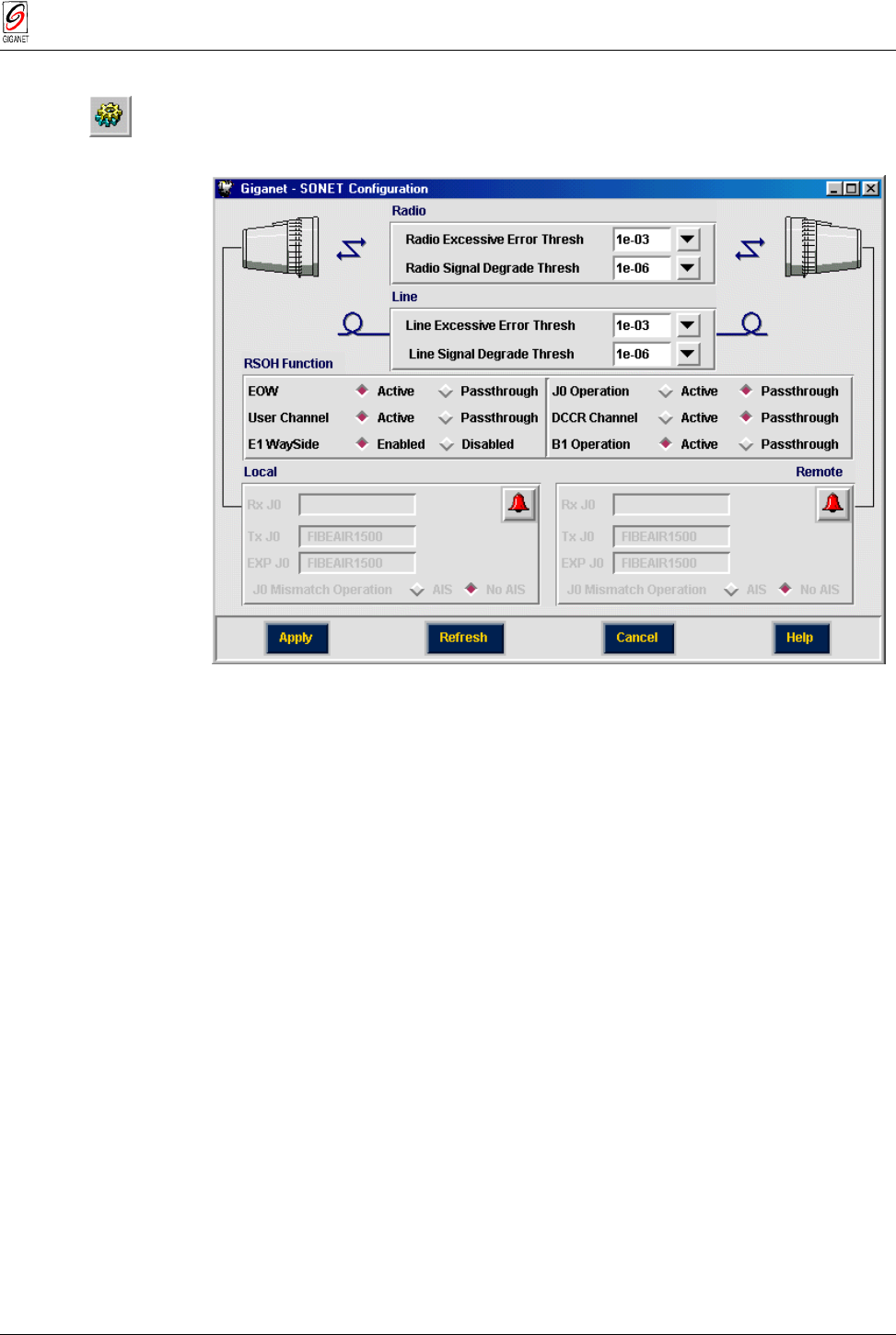

Figure 5-16 Sonet/SDH Configuration Window
Radio BER Alarm Thresholds (Optional):
2. In the Radio Excessive Error Thresh field, select the level above which
an Excessive BER alarm is issued for errors detected over the radio link.
3. In the Radio Signal Degrade Thresh field, select the level above which a
Signal Degrade alarm is issued for errors detected over the radio link.
Line Parameters (Optional):
4. In the Line Excessive Error Thresh field, select the level above which an
Excessive BER alarm is issued for errors detected on the line input.
5. In the Line Signal Degrade Thresh field, select the level above which a
Signal Degrade alarm is issued for errors detected on the line input.
Regenerator Section Overhead (RSOH) Function Parameters
(Required):
This section of the window allows you to determine the RSOH parameters,
which will be used.
6. Set each RSOH parameter that will be used as
active and leave the
others set as
passthrough . By default, these parameters are set to
passthrough.
EOW – Engineering Order Wire.
