The Mon Tx Level field (read-only) displays the system’s transmitted
power level.
The Mon Rx Level field (read-only) displays the received power level.
The unfaded Rx Level field displays the predicted receive level as
calculated from the distance and the antenna size.
The temperature scale shows the temperature of the ODU units, ranging
from blue (cold) to red (hot).
The color of the
icon indicates the severity of the most severe
alarm currently triggered (if any). Click on the icon to view the current
alarm list.
7. Click Apply to store current window settings.
8. Click Cancel.
The ODU Configuration window is closed.
c) IDU Configuration
1. To define IDU Configuration select Configuration ½ IDU in the Work
Area window. The IDU Configuration window is displayed.

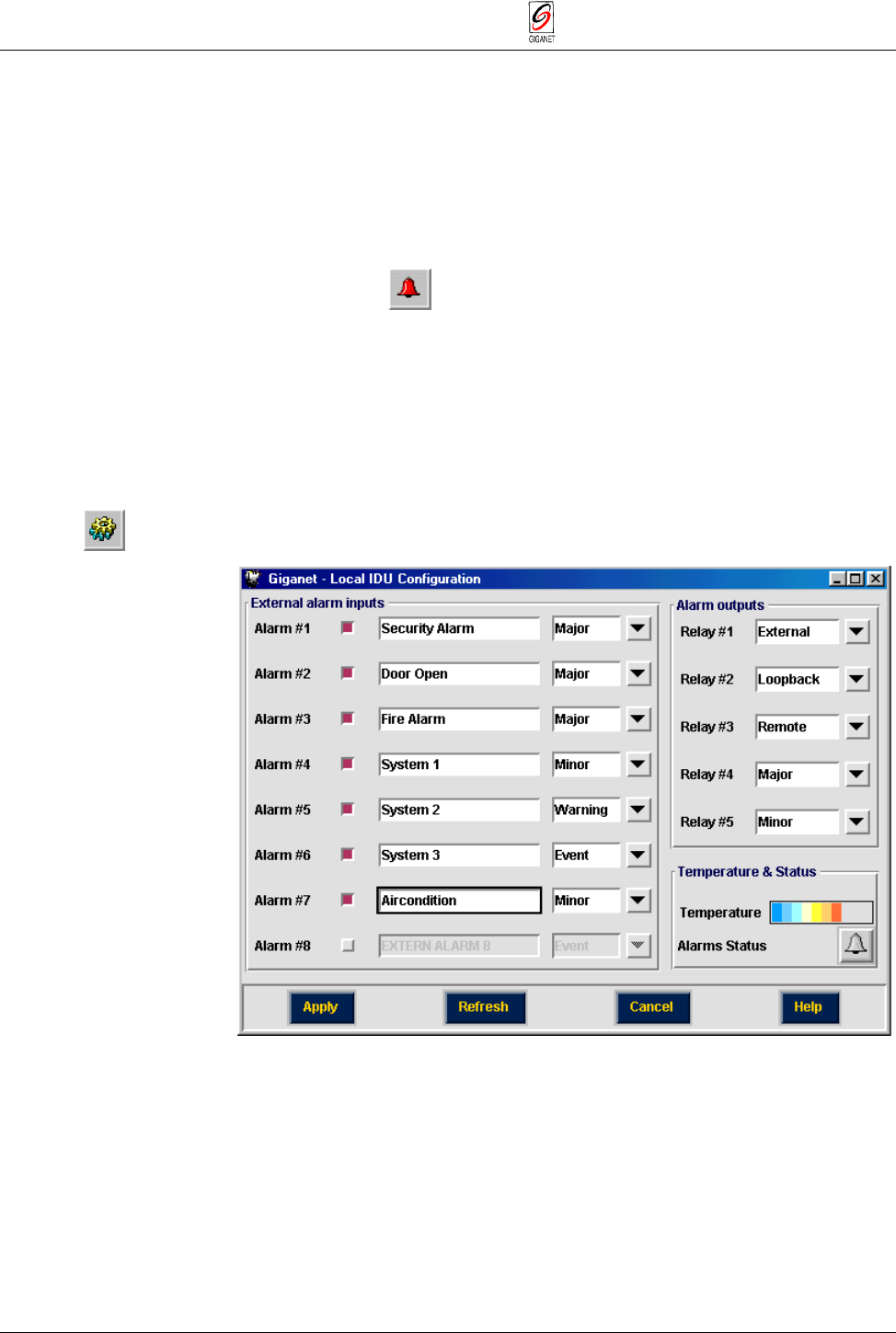

Figure 5-14 IDU Configuration Window
Follow the steps below for both the Local and Remote sides.
