5.5.2. Configuration
a) Setting Frequency
1. Select Configuration ½ Set frequency in the Work Area window.
The Frequency Plan window is displayed.

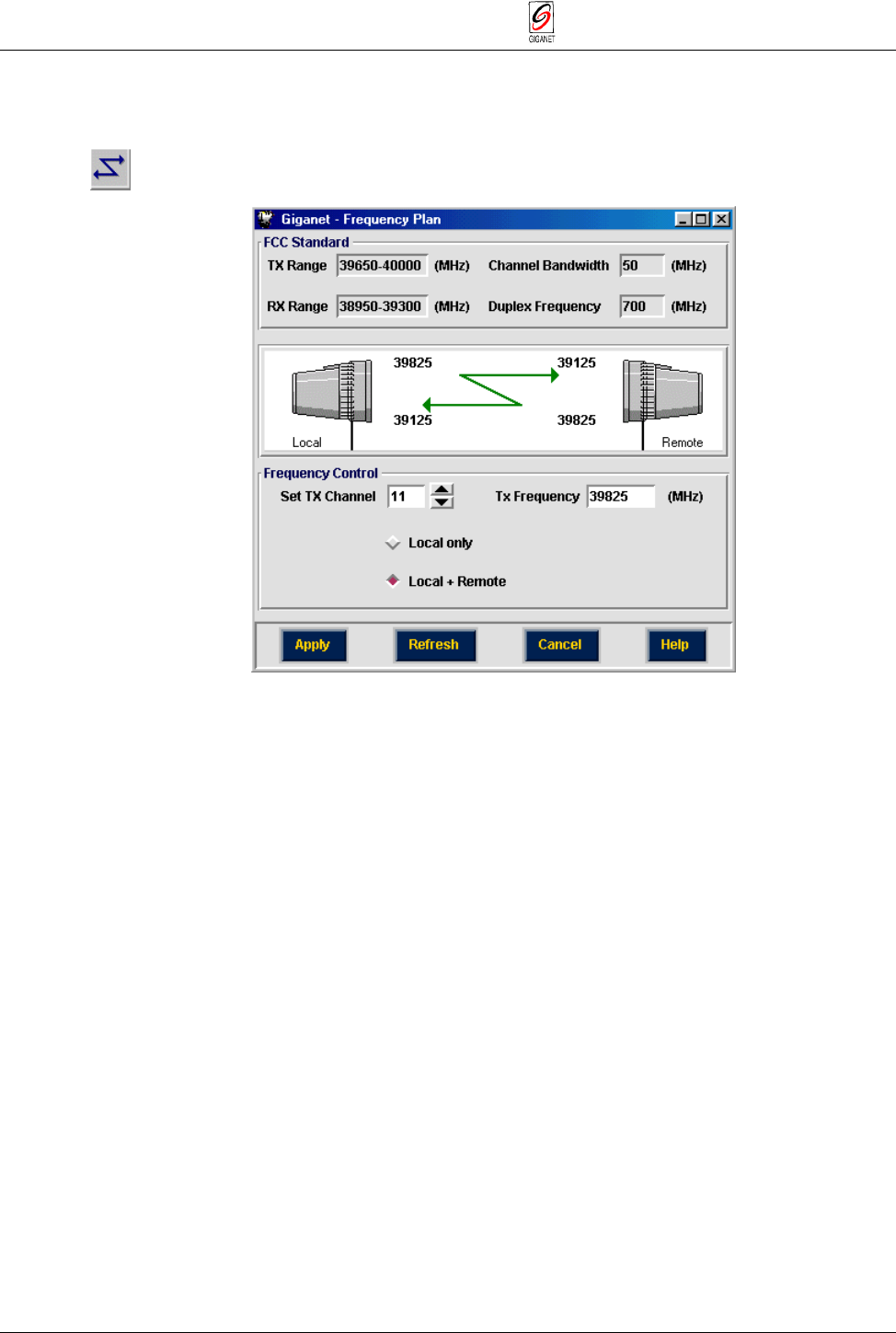

Figure 5-12 Frequency Plan Window
At the top of the window, the system displays Tx/Rx frequency ranges and
the gap between them according to the appropriate standard (FCC or
ETSI), the type of ODU installed, and the channel bandwidth.
2. In the Frequency Control section, set the TX Channel to the required
channel. The corresponding frequency is displayed. By default, it is set
to the first channel. You can type the Tx frequency directly in Tx
Frequency field.
If you are unsure of the required channel, refer to Appendix E for FCC or
ETSI channel allocations.
3. Select the Local + Remote option (radio button should be filled ♦).
By default, the Local + Remote option is selected. This option applies
the TX Channel setting you make to both the local and remote units.
This step requires established remote connection.
4. Click Apply.
The settings are saved. From this point on, the ODU is set to the desired
frequency.
5. Click Cancel.
The Frequency Plan window is closed.
