Instruction manual

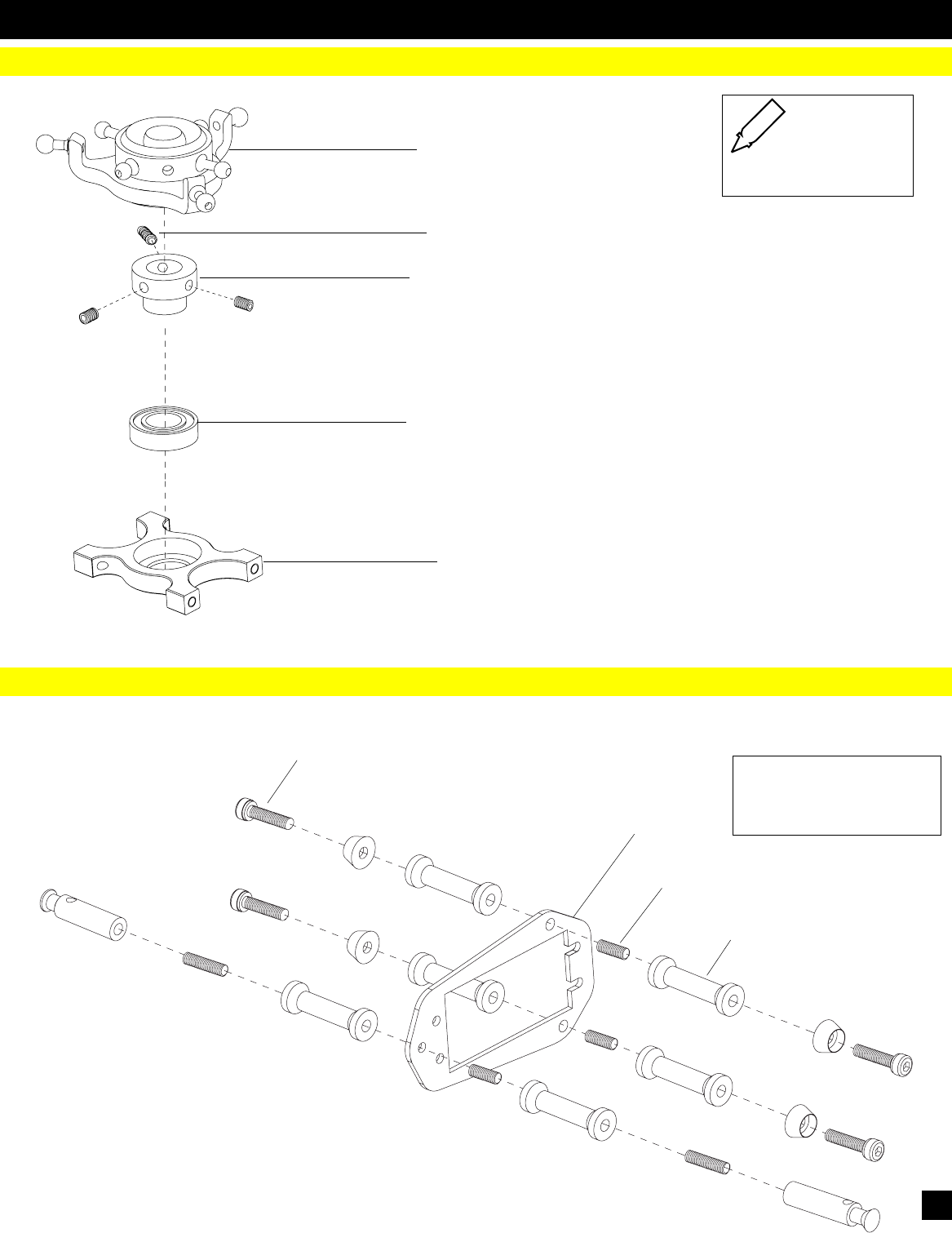

Upper Bearing Block Assembly
6. Assembly Instructions
CF Servo Plate
(CNE573A)
CNC Standoff
(CNE589)
It is recommended to attach
the servo to the carbon plate
before installing it between
the frames
M3X20 Double
Stud Screw
Cap Screw M3X10
(CNM3X10CS)
Elevator Servo Plate Assembly
CNC Metal Swashplate
(CNE561)
M4X4 Set Screw
(CNE511)
Upper Shaft Collar
(CNE511)
Upper Beaing
Block Bearing
(CNBB1019)
Upper Bearing Block
(CNE593)
THREAD LOCK
B
***Blue threadlock
all cap screws in
this diagram, that
screw into metal
parts***
9
