Instruction manual

Washout Base
(CNE516)
Linkage Ball
(CNLR1014)
CNC Washout Control
Arm
(CNE560)
Bearing 3X6x2.25
(CNBB36)
Cap Screw M3X12
(CNM3X12CS)
Flat Washer M3X5x.5
(CNLR1003)
Medium Linkage Ball
(CNLR1020)
Antirotation Linkage Ball
(CNE561)
*Hint: Undo the cap screws and linkage balls to the assembled parts. Apply CA
on metal to plastic assembly. Apply blue thread lock on metal to metal assem-
bly. Do not over tighten when screwing the attached assembly to its subassembly.
CNC Metal Swashplate
(CNE561)

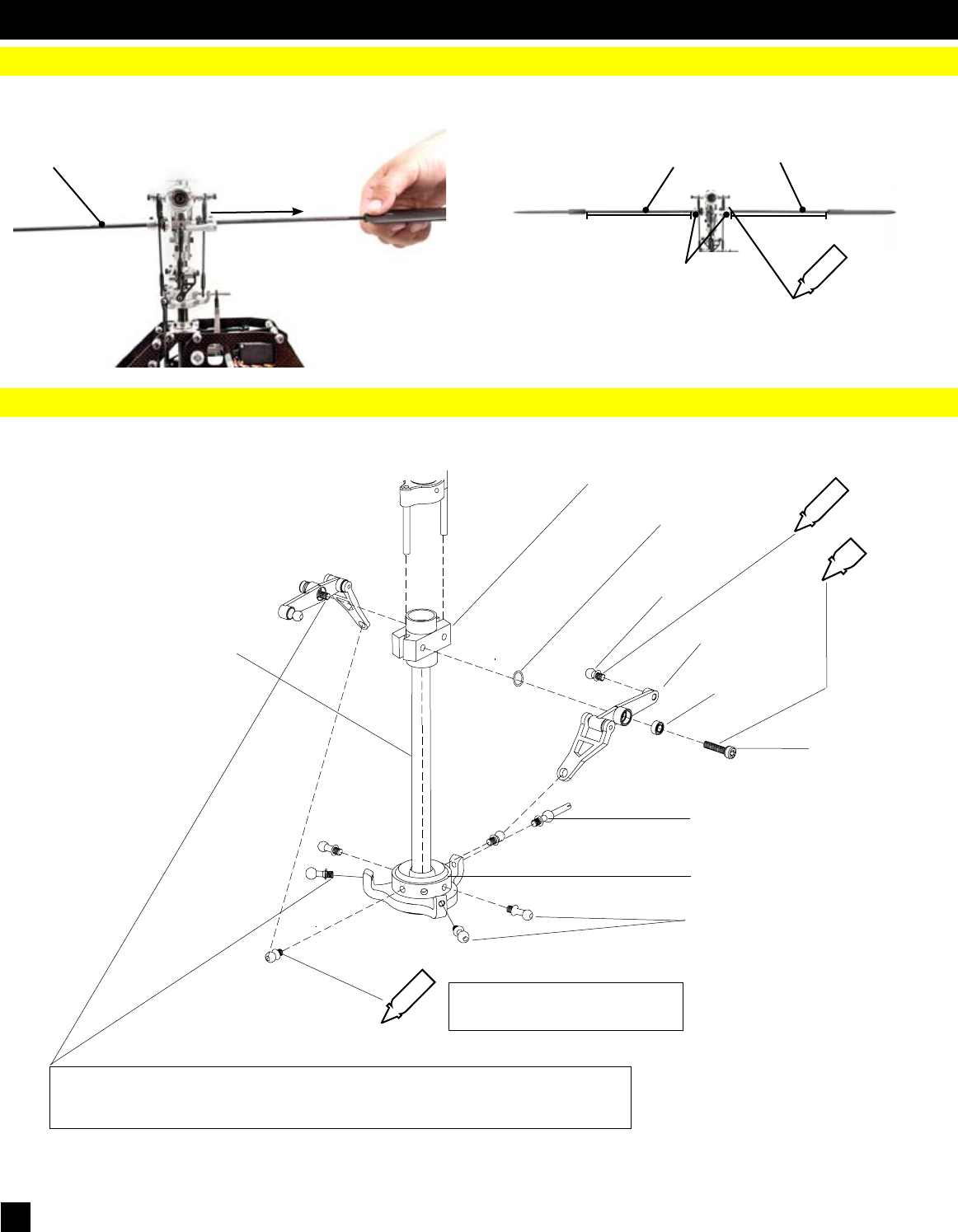

Swashplate and Washout Assembly
6. Assembly Instructions
CA
Main Shaft
(CNE508SLA)
Flybar outer
at spot
Equal ybar length
on each side
Flybar control arms must
be level with Seesaw. Set
screws face upward.
Flybar outer at spots align
with ybar control arms when
arms are ush with seesaw.
THREAD LOCK
Adjusting the Flybar
Apply Thread lock to all the inner
steel ball links.
THREAD LOCK
R
Head Block
THREAD LOCK
R
8
