Instruction manual

OIL
Add a small
amount of
Synthetic Hydro
Carbon Grease
Thrust Bearing
(CNBB6138T)
Linkage Ball
(CNLR104)
Cap Screw M3X16
(CNM3x16)
Bearing 3X6x2.5
(CNBB364)
Brass Spacer M3X5x3
(CNE524)
Bearing
M3X6x2.5
(CNBB364)
Cap Screw M4x10
(CNM4x10CS)
Washer M4x9
(CNM4x8x1FW)
Bearing 8x14x4
(CNBB814)
M4 Locknut
Main Blade Grip
(CNE523)
Bearing 8x14x4
(CNBB814)
Blade Grip Spacer
(CNE522)
Rubber Dampener
(CNE520)
Spacer M3X5x2
(CNE524)
Cap Screw M4x30
(CNM4x30)
*The thrust bearing washer with the bigger inner race should be closer to the
head block. The thrust bearing washer with the smaller inner race should
be closer to the rotor blade. The proper way to install the thrust bearing is
with the loose balls (open end) of the thrust bearing facing inwards toward
the center of the rotorhead. This is so that as the blades spin, the grease
does not spin outwards off the bearing carrier due to centrifugal force.
*Raised lip should
be facing the bearing

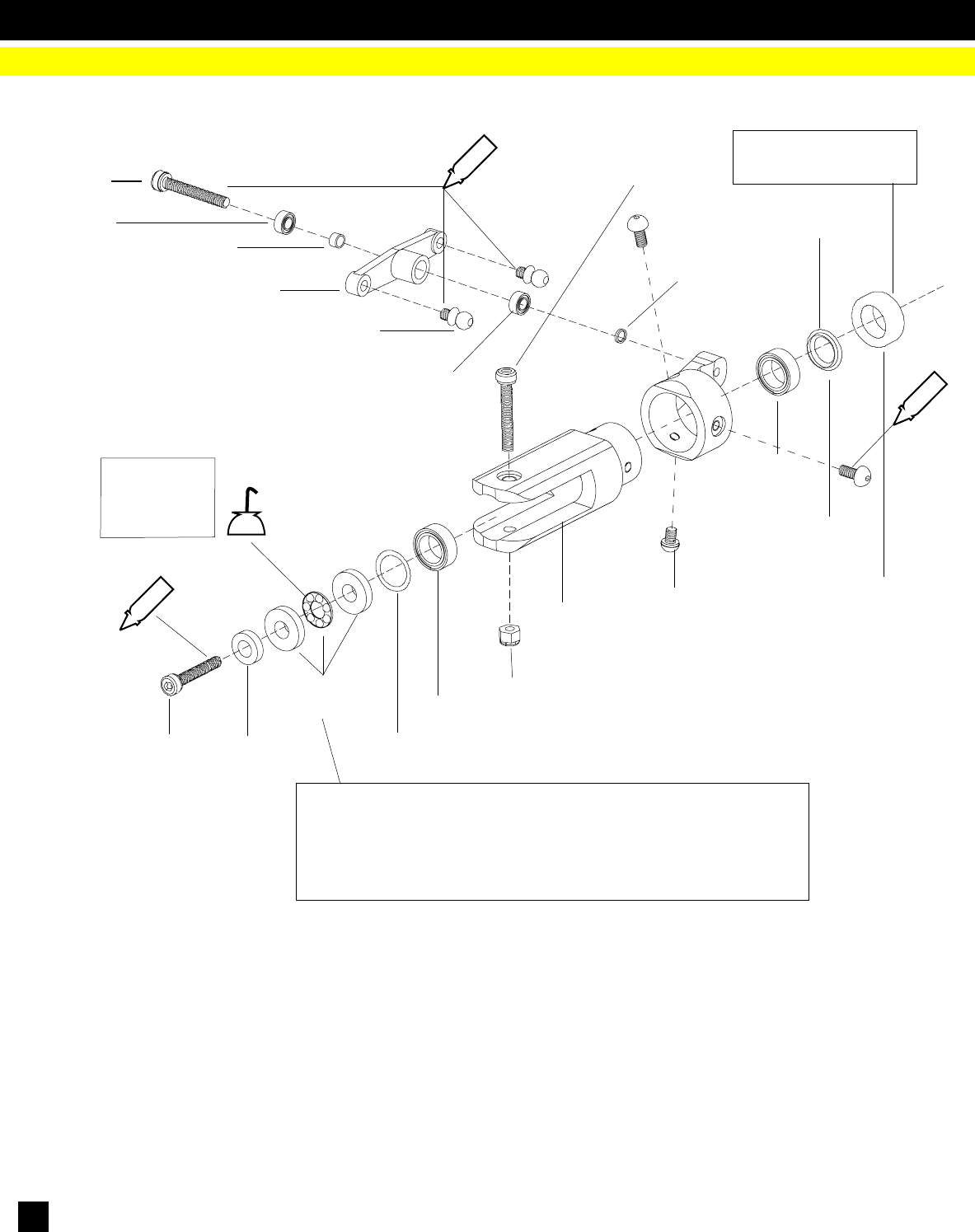

6. Assembly Instructions
Main Blade Grip
THREAD LOCK
B
Attaches to feathering
shaft on the following page
Flat Washer
M10x14x1
(CNE521)
M4 Button Head Cap
Screw(3)
(CNE572-1)
THREAD LOCK
B
THREAD LOCK
B
CNC Machined Bell Mixer
(CNE558S)
6
