Instruction manual

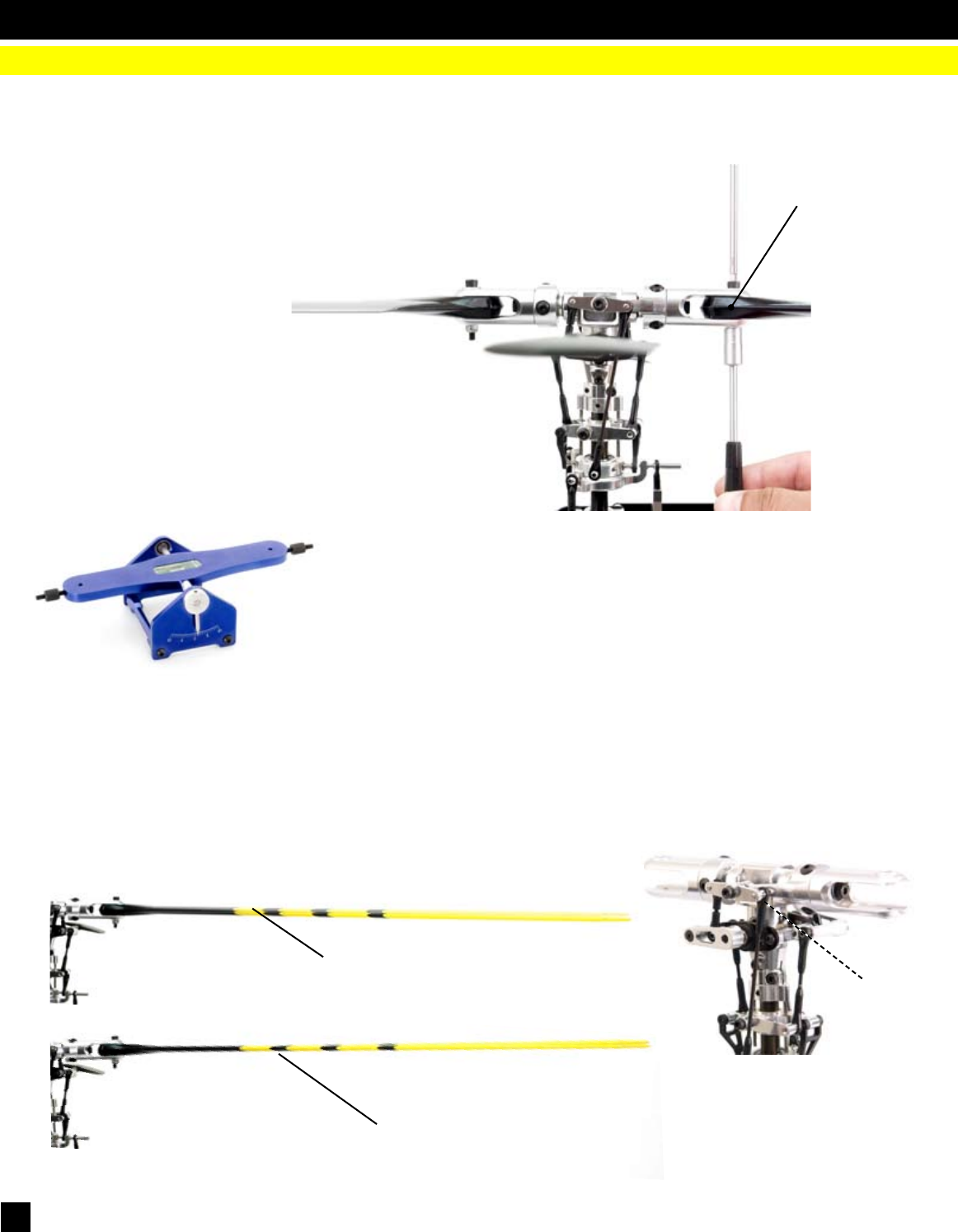

(1) The Swift Carbon 620 does not come with main rotor blades. Please refer to the instructions included with your blades

(must be purchased separetely and are not included with the Swift Carbon 620 kit).

(2) Use the 2 M4x30 blade bolts and M4 locknuts to secure the blades to the blade grips on the main rotor head. Main

rotor blades should have their leading edge turning clockwise.

IMPORTANT NOTE: MAIN BLADES AND FLYBAR PADDLES TURN CLOCKWISE.

IMPORTANT

NOTE: MAIN

BLADES

AND FLYBAR

PADDLES TURN

CLOCKWISE.

Tracking Adjustment

(3) Tracking refers to trimming the actual pitch of the main rotor blades to be equal. On the rst ight, bring the rotor head

up to speed without leaving the ground and look at the side or prole of the rotor disk (FROM A VERY SAFE DISTANCE,

MAKING SURE TO WEAR EYE PROTECTION).

(4) Only one rotor blade should be visible, if there are two distinctive blades then the tracking linkage must be changed.

Observe which blade is tracking above the other by marking one rst. Track that blade lower by shortening the ‘bell mixer

to swashplate’ linkage rod.

Very Bad!

Improved!

ASSEMBLY COMPLETE! MODELER IS RESPONSIBLE FOR COMPLETENESS AND SAFETY OF THE MODEL.

Bell Mixer to

Swashplate

linkage

M4x30 Shouldered

Socket Head Cap

Screw (2)

M4 Locknut (2)

Preparing, Mounting & Tracking The Main Rotor Blades

9. Final Preparations

Balance is the most important part in maintaining a safe and

reliable helicopter. First check the blades for balance, this can

be done on a blade balancer.

(Optional Item) CN2052 Accuratech v.2 Main Blade Balancer.
