Instruction manual

Linkage:
bell mixer to
swashplate
(2) = 100mm
Linkage: ybar
control arm to
washout arm
(2) = 53mm
Linkage: bell
mixer to seesaw
(2) = 23mm
Linkage: Aileron/
Pitch control arm
to swashplate
(2) = 79mm
1) Before proceeding to measure and install the
pushrods, make sure you have adjusted the
ybar to it’s optimal level (ybar paddles at and
parallel to the ground). Adjust the ybar until
the outer at spots align with the set screws
in the ybar control arms (set screws facing
upward and ybar control arms are ush up
against the seesaw).
2) Make certain that the ybar is equal in length
on both sides of the rotor head before tighten-
ing the ybar control arms. Set the ybar control
arms ush and level to the seesaw and tighten
the set screws using locktite.
It is very important that before you install the
pushrod linkages that your transmitter’s bat-
teries are fully charged. Then remove all the
servo horns from the servos and center all the
mechanical or electronic trims on the radio.
Due to the different types of radio and servos
that are chosen to install into the helicopter,
match each pushrod to the lengths in the table
for optimum setup.
Note: All dimensions are in millimeters and
are measured from the centers of the con-
trol balls or ball ends.
7. Putting Together Your Model

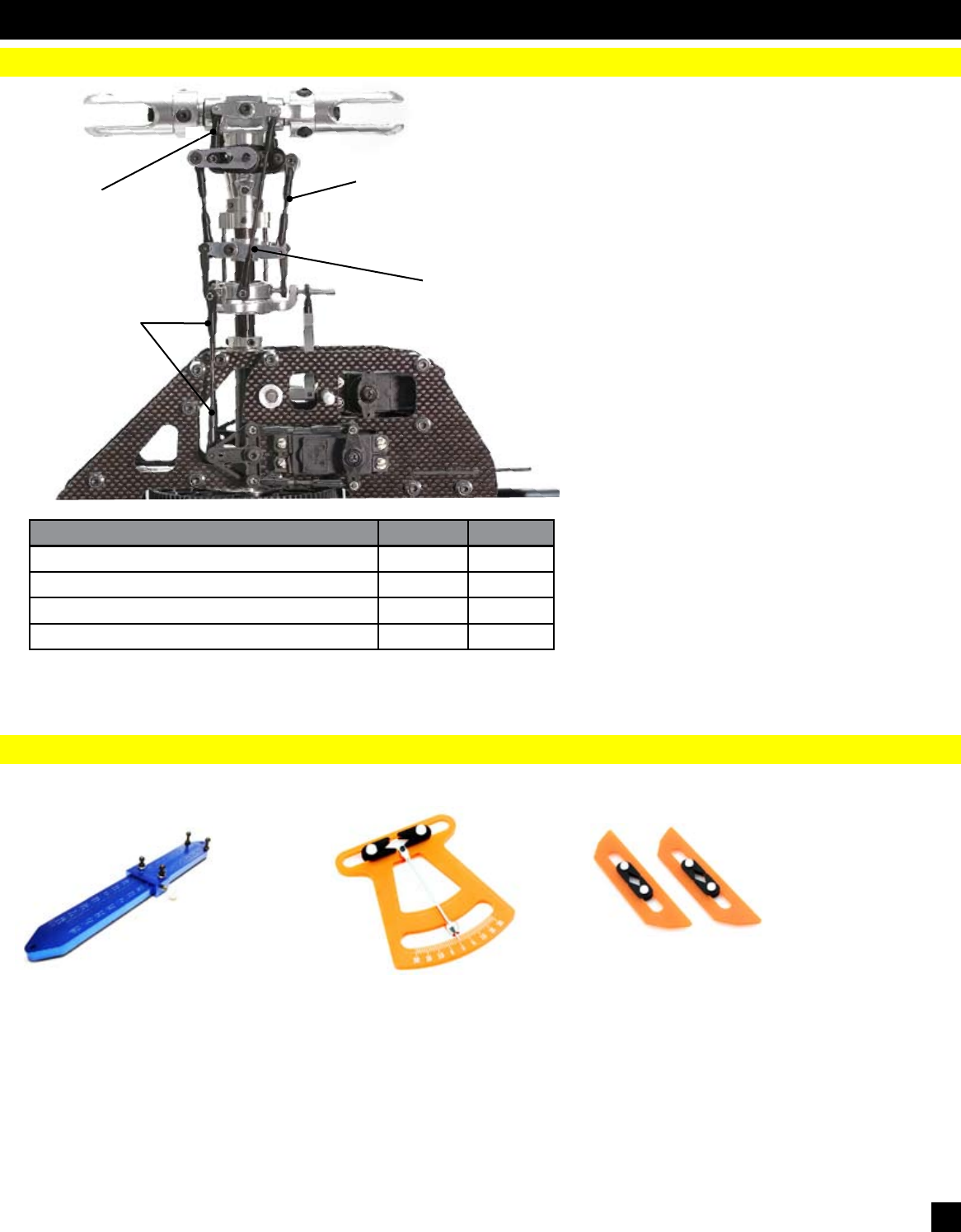

Servo Linkage Lengths
Location Length ID
Aileron/Pitch Control Arm to Swashplate 79mm A
Swashplate to Bell Mixer Link 100mm B
Bell Mixer to Seesaw 23mm C
Flybar Control Arm Linkage to Washout Arm 53mm D
A
B
C
D
These lengths should allow for approximately +/- 12 degress of pitch
with 0 degrees at center stick (typical 3D setup).
CN2255 Control Rod Setup
Gauge
Easily duplicates pushrods by at-
taching a master pushrod and match
new pushrods as they are assem-
bled. Gauge has millimeter scale for
accurate lengths center to center.
CN2027 G-Force Pitch Gauge
Provides easy pitch setup of main
blades. Self centering weighted
indicator offers easy to read
pitch numbers during setup. No
more need to eyeball the amount
of pitch that’s being dialed in.
CN2050 Paddle Gauge v.2
Allows you to gauge your paddles
during pitch setup. Easy clip on
with thumb screws for a secure t.
Optional Tools Necessary for Perfect Setup
17
