Instruction manual

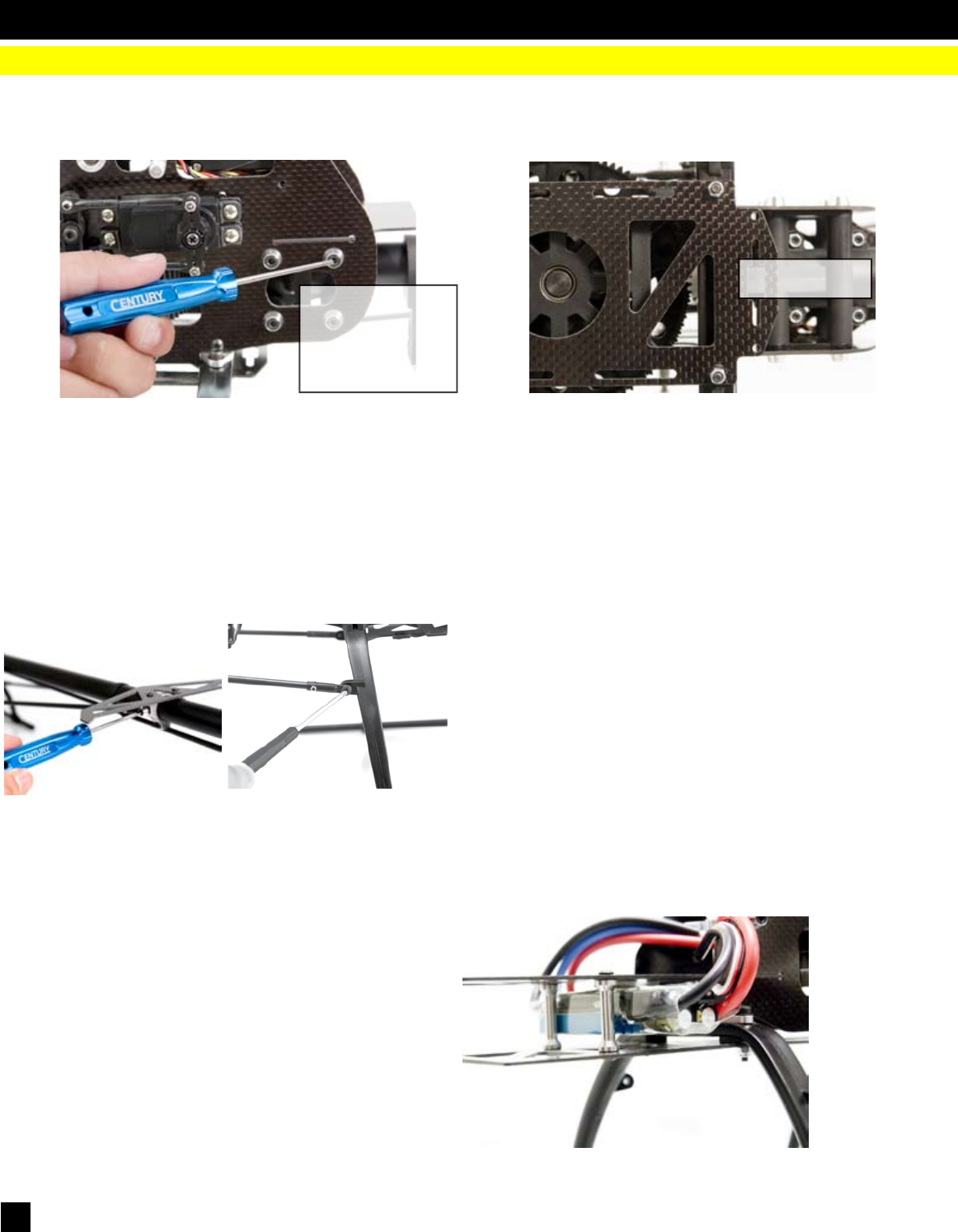

1) Align the mounting posts from the front transmission gearbox with the mounting posts at the rear of the main frame. The

horizontal n on the tail boom facing should face up so the rudder pushrod and tail boom support struts hang below the

tail boom.

2) Using the hardware provided attach the tail section to the frame section. Do not fully tighten the screws till the

following step.

1) Align the transmission gear mesh before fully

tightening the screws holding the frame and tail sections.

Good alignment is smooth and free of resistance without

slipping or skipping teeth. (HINT:) place a strip of paper

between the gears to give proper clearance. Turn the

main gear while feeding the strip of paper between

through the gears. If the strip of paper comes out torn,

then the gear mesh is too tight. If the strip of paper

comes out not matching the obvious accordion pattern

from the gears’ teeth, then the gear mesh is too loose.

2) Attach the tail boom support struts to the horizontal n

clamp and the rear mounting posts on the landing struts

as shown by tightening the four set screws. (HINT:) To

help prevent rotation of the horizontal n mount, wrap the

area under the horizontal n mount with a few layers of

electrical tape.

M3X8 Cap Screw

(2)

Assembling the Components

7. Putting Together Your Model

After completing the previous steps, the following instructions are for putting together the sub-assemblies. Please follow the

instructions and any hints along the way to ensure that you have a properly ying model.

Phillips Self Tapping Screw (2)

1) Mounting the switch underneath the battery try keeps

it away form moving parts and alows you to access the

the switch when the canopy is on. Remember to use

locktite on the M3 socket head cap screws.

Look at gear mesh

through here.

M3X12 M3 Cap

Screws (8)

Do not fully tighten

the screws till the

following step.
