Instruction manual

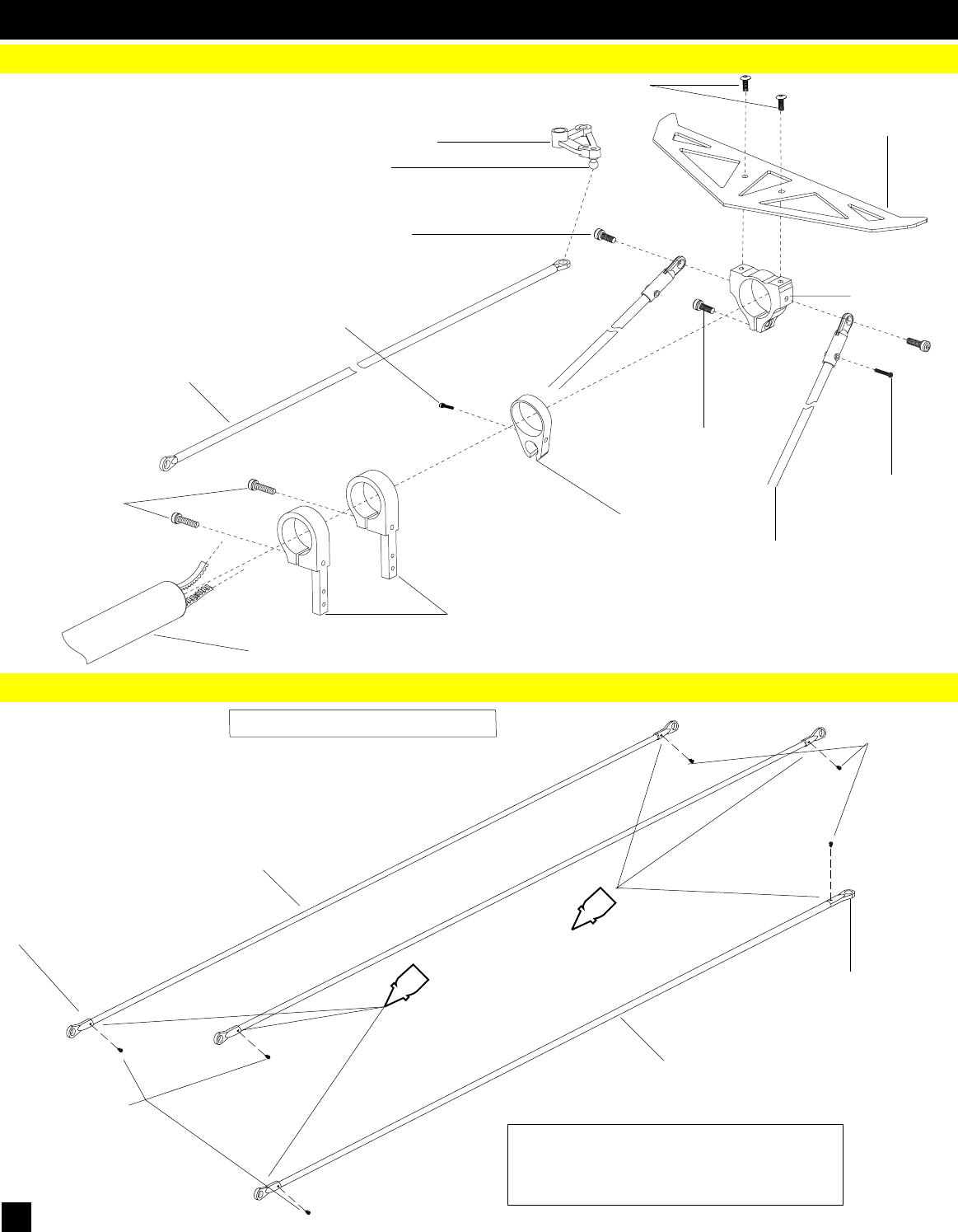

Tail Component Assembly
6. Assembly Instructions
CNC Tail Boom Clamp
(CNE567S)
Rudder Pushrod Guide
(CNE534)
Tail Servo Mount
(CNE544)
Tailboom
(CNE532A)
Self Tapping Screws
M3X12
(CNM3X12ST)
Fine Thread Screw M2x10
(CNM2x10PH)
Horizontal Fin
(CNE535A)
Tail Boom Support Struts and Rudder Control Rod
CA
Use CA to secure the rod ends in place
Tail Boom Support
Strut (CNE543A)
Tail Boom Support
Strut End (CNE543A)
The tailboom support struts and tail rudder control
rod arrive pre-built. To ensure the safety of your
helicopter and others around, please follow the
CA glue instructions.
Rudder Control Rod
(CNE534a)
Rudder Control Rod
Ball Link
(CNE534a)
Fine Thread Screw M2x8
(CNM2x8PH)
CA
Fine Thread
Screw M2x8
(CNM2x8PH)
Rudder Control Rod Set
(CNE534A)
Tail Pitch Plate Lever
(CNE538)
Button Head Screw M3X6
(CNM3X6BH)
Tail Boom Support
Strut (CNE543A)
Cap Screw M3X10
(CNM3X10CS)
Linkage Ball
(CNLR1014)
Fine Thread Screw
M2x8
(CNM2x8PH)
M3x6 CapScrews
(CNM3x6CS)
14
