Instruction manual

Bearing 10x18x5
(CNBB1019)
Main Gear Hub Spacer
(CNE592A)
Auto-rotation Hub and Bearing
(CNE510B)
Bevel Head Cap Screw
(CNM3X8FHCS)
Main Shaft
(CNE508SLA)
M3 Lock Nut
Cap Screw
(CNM3X22CS)
Swift HD Main Gear
(CNE510ABK)
Bevel Head Cap Screw
(CNM3X8FHCS)
Third Bearing Block
(CNE569)
Driven Tail Hub
(CNE591)
Swift HD Main Gear
(CNE510ABK)

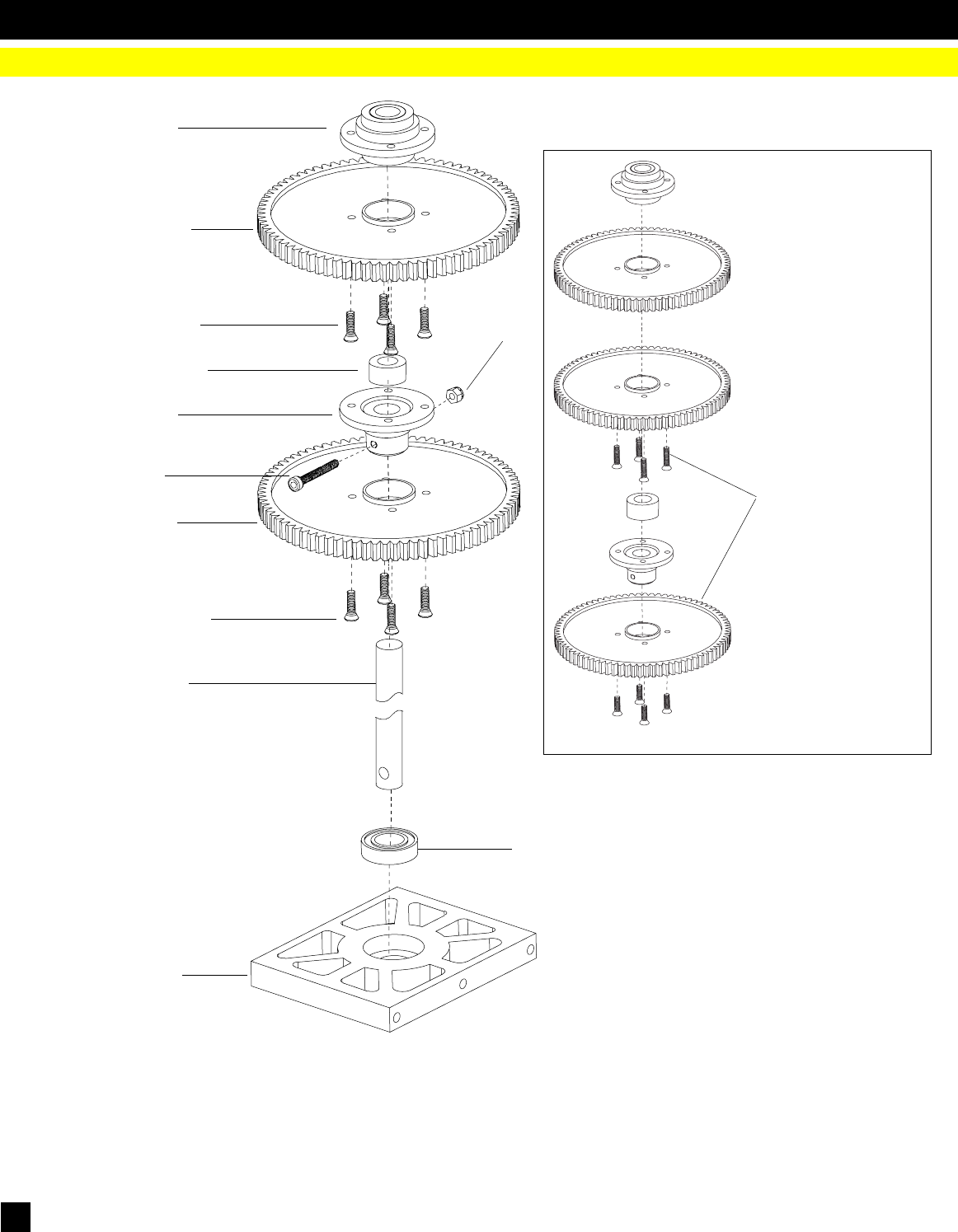

Optional Stacked Gear Setup (For High Voltage Power Systems)
This triple stacked gear
system is required for pow-
er systems that are using
10S (37 volts)
This is an optional item
that distributes the torque
across the main gears more
evenly. You will also need
a longer motor pinion to use
this system. (CNMG509L,
510L, 511L).
Main Gear & Bevel Head
Cap Screw
(CNE610AHD)
Autorotation Hub Assembly
6. Assembly Instructions
