Instruction manual

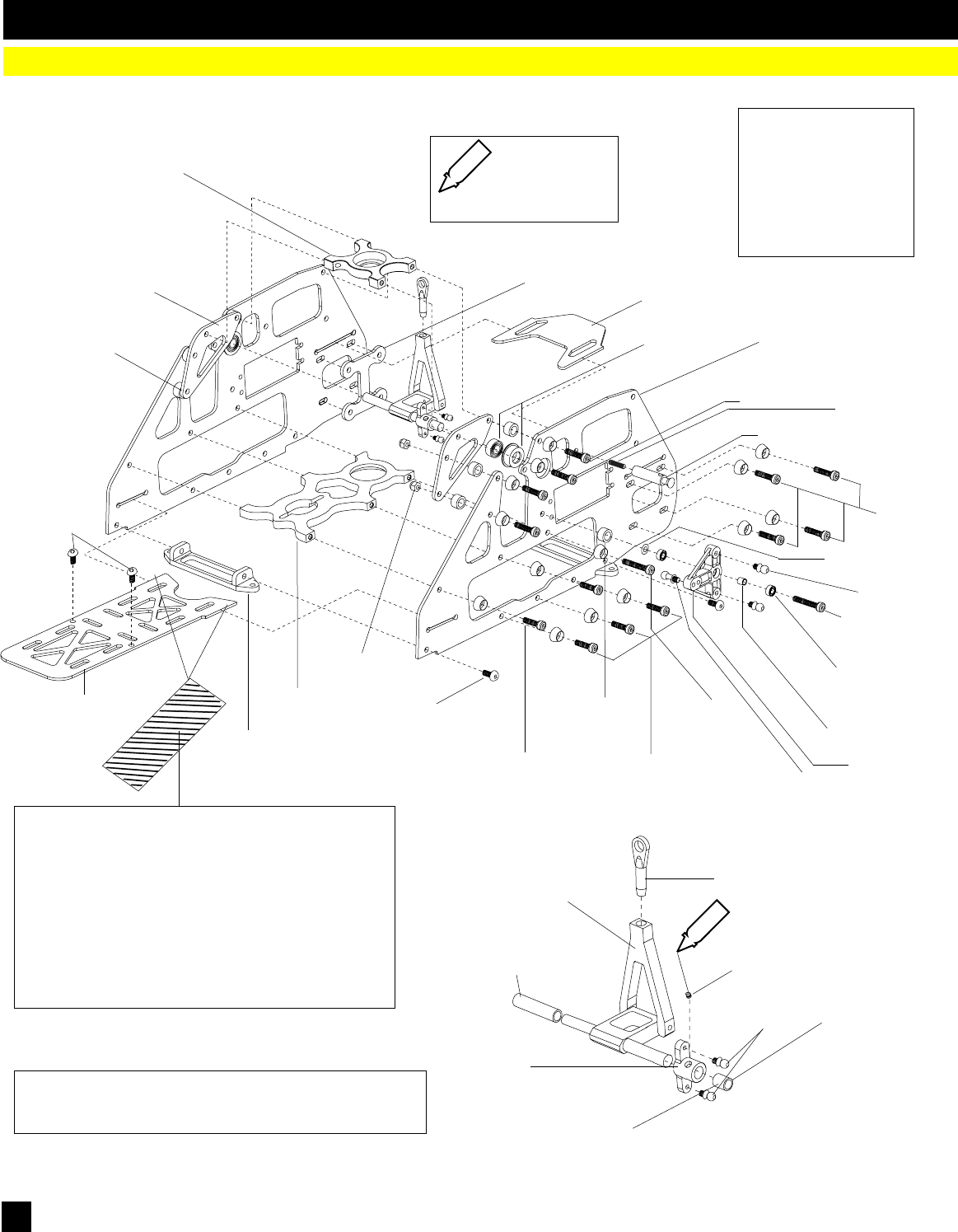

Main Frame Assembly
6. Assembly Instructions
THREAD LOCK
B
H Spacer Plate
(CNE590)
Canopy Standoff
(CNE501A)
Washer M3X5x.5
(CNLR1003)
Ball Link
(CNLR1011)
Cap Screws M3X18
(CNM3X18CS)
Bellcrank Bear-
ings (CNBB36)
Bellcrank
Spacers
(CNE502)
Ball Link
(CNLR1011)
Bell Cranks
(CNE502)
Button Head
Screw M3X6
(CNM3X6BHCS )
Cap Screw
M3X14
(CNM3X14CS)
Cap Screw M3X12
(CNM3X12CS)
M3X20 Hex
Double Stud Screw
CF Gyro Plate
(CNE527A)
CNC Machined
Motor Mount
(CNE563S)
CF Electronics
Tray (CNE575A)
Ball Link
(CNE546)
A-Arm
(CNE580)
Linkage Ball
(CNLR1011)
Aluminum
Spacer M3X7x3
(CNE586)
Push Pull Bell-
crank (CNE581)
Elevator Spacer Long
(CNE583)
Elevator Spacer
Short (CNE583)
Set Screw M3X3
Total of 3 (CNM3X4SS)
You may nd it easier to install the main gear hub assembly if
you place it in between the main frames while they are being
put together.
Upper Bearing
Block
(CNE593)
Main Frame
Brace (CNE584)
Main Frames
(CNE574A)
THREAD LOCK
B
***Blue threadlock
all cap screws in this
diagram, that screw
into metal parts***
Included in your kit is a small piece of sand paper. Toler-
ances are so ne on this kit that you may have to sand
down the edges of your carbon radio tray and gyro plate
in order for them to t perfectly. When sanding, remove
small amounts of material and test t the parts. You want
the parts to t snuggly in place. If the parts are loose,
apply a small dab of CA to keep the parts in place.
*WARNING: Before sanding, make sure you and your
model are in a well ventilated area, or outside. When
sanding carbon, you must wear a dust mask as inhal-
ing the dust particles can be harmful to your health.*
Button Head Cap
Screw M3X8
(CNM3X8BH)
Included in the kit are
silver screw caps which
act as washers for the
M3 screws on the main
frame assembly. You
can choose to use these
if you wish during the
main frame assembly.
Cap Screw
M3X12
(CNM3X12CS)
M3 Lock Nut
Bell Crank Spacer
(CNE588)
Cap Screw M3X12 for 3rd
Bearing Block (CNM3X12CS)
Carbon Main
Shaft Support
(CNE579A)
Short Spacers
(CNE586)
Elevator Bearing
& Cup
(CNE582)
10
Cap Screw M3X8
(CNM3X8CS)
