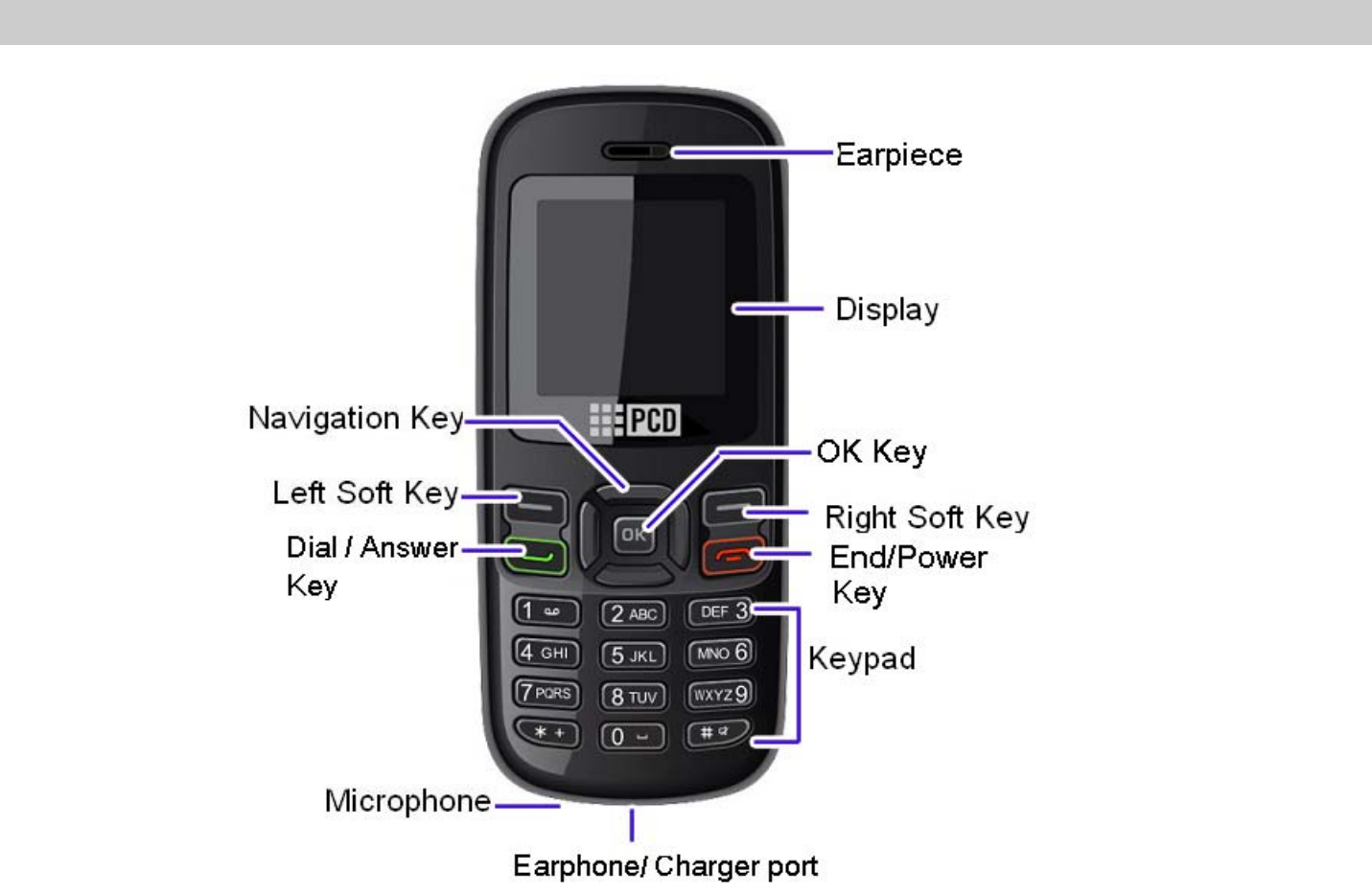

. Introduction 1.
We continuously strive to improve our products. Therefore, we reserve the right to revise this user manual or withdraw it at any time without prior notice. 1.2 Key Key Function Dial/ Answer Make or answer a call. Key View call logs in standby mode. End/Power Press and hold to turn the phone on/off. Key End a call or reject an incoming call. Return to idle mode. Left Soft Key In idle mode, press to access the main menu.
Confirm a selection. Numeric Key Enter numbers, letters or characters. Select a submenu item labeled with the corresponding number. * Press twice quickly to enter ‘+’ to make an international call. Press and hold to enter the pause character (P) or the wait character (W) when entering a number. Press to enter a symbol when editing text. # Press and hold to activate or deactivate the silent mode in idle mode. Press to switch input modes when entering text.
Network - The left portion indicates whether your phone is already registered with a network and the right portion indicates signal strength (from no signal to strongest). Battery - Indicates battery level. When charging, a scrolling icon will be displayed. The more bars, the stronger the charge. To log on GPRS - The icon will be displayed only when you have logged onto GPRS. Message - Indicates you have one or more unread messages. Push message-Indicates that you have received new push message.
(1) 2.1.
2.2 Turning on the Phone To turn the phone on, press and hold the End/Power Key. 2.3 Charging the Battery 1. 2. 3. 4. Make sure the battery is inserted. To charge the battery, plug in the charger connector at the bottom of your phone (charger port) and then plug the other end into an AC power socket. The battery symbol indicates the charging status. During charging, the charge indicators will scroll. When all the scroll bars are steady, the battery is fully charged. Disconnect the charger from the phone.
0 Press to enter a space. Navigation Key ▲/▼/◀/▶ Press to browse the last or next available word. Left Soft Key [Select] Press to confirm the letter or word. Right Soft Key [Clear] Press to clear a letter, press and hold to clear all entries. # Press to switch the input modes. * Press to activate punctuation mode. Example: How to enter the word " ERROR " 1. Press the # Key to switch to ES. 2. Press 3 7 7 6 7, “ERROR” appears. 3. Press the OK Key to confirm “ERROR”. 3.
4. Calling 4.1 Making a Call 1. 2. 3. In idle mode, enter the phone number. Press the Dial Key to dial the number. Press the End/Power Key to end the call. Note: During a call, press the Navigation Key Up/Down to adjust the volume. 4.1.1 Making an International Call 1. Press * twice quickly to enter "+" appears on the screen. 2. Enter the country code. 3. Enter the area code (normally without the 0 before it) followed by the phone number. 4. Press the Dial Key to call directly. 4.
5. FM Radio Note: The radio will not work unless the headset is attached. Attach the headset included with your phone to the USB port located at the bottom of the phone. To operate the radio: 1. Press the Navigation Key Down to activate or deactivate the FM radio. 2. Press the * / # Key to adjust the volume. 3. Press the Navigation Key Up to activate or deactivate Auto search. 4. Press the Navigation Key Right/Left to switch the channels.
7. STK Service Note: The submenus of this feature depend on the operator and different operators may provide different services (some SIM cards do not support STK). Please contact your operator. 8. Call History 1. Select Menu > Call history. 2. Press the Navigation Key to view different call logs. 3. Choose a particular number and press the Dial/Answer Key to call the number directly. 4. Select Delete call logs if you want. 9. Messaging 9.1 Creating a text message 1.
3. After entering text, you can access the send options by pressing the Left Soft Key [Options] and then select Send to 9.2 Voicemail Server This menu allows you to set your voice mailbox number and listen to your voice messages. To set your voice mailbox number, select Messaging >Message settings > Voicemail server. Note: You can forward your calls to your voice mailbox (the phone number for callers to leave a message) via the Call forwarding feature. 9.3 Broadcast Message 1.
2. Enter the first few letters of the contact name to search. 10.2 Add New Contact To create a new SIM/phone contact: 1. Select Menu > Phonebook > Add new contact. If you want to change the storage position, press the Left Soft Key [Options] and then select Phonebook setting > Preferred storage to set the storage position. 2. Press the Options > select to enter the contact information. 3. Press the OK Key or Done to save the contact. 10.3 Phonebook settings 1. Select Menu > Phonebook 2.
Your phone has a built in calculator. Enter the numbers using the keypad. An icon will appear on the screen indicating how to do calculations: Keys Operation Up Addition Down Subtraction Left Multiplication Right Division Left Soft Key To calculate Right Soft Key To clear or exit Calculator # key To enter decimal point Note: Pressing the Navigation Key Up/ Down can switch between +, M+, M-, -; press the Navigation Key Left/ Right can switch between MC, x, ÷, MR. 11.
Your phone features two kinds of stopwatches: Typical stopwatch and nWay stopwatch. Typical Stopwatch Split Timing: The timepiece will be recorded and continue to count when you press Split. The 2nd timepiece is recorded based on the continuous timing. Lap Timing: When you select this, the timepiece will be recorded and it will start the new timing when you press Lap. The 2nd timepiece is recorded in new timing. You can stop and resume anytime.
12. Organizer This menu contains features and options designed to keep you organized and informed while on the go. As most of the features are very simple, here you can only view some important features. 12.1 Create a new task 1. 2. 3. 4. 5. 6. Select Menu > Organizer > Calendar. Press the Navigation Key to select a date. Press the Left Soft Key [Options] and select Add event. Select the event type. Enter the event information. Press the Right Soft Key [Done] to save. 12.2 Set an alarm 1. 2. 3. 4.
13. Settings You can configure your cellular phone to best suit your usage preferences. 13.1 Set Wallpaper 1. Select Menu > Settings > Phone settings > Display > Wallpaper. 2. Select System if you want to choose from the default pictures. 3. Select User defined if you want to choose a picture from Menu > Multimedia > File Manager. 13.2 Activate user profiles 1. Select Menu > Settings > User profiles. 2. Select one of the profile. 3. Select Customize to adjust the settings. 4.
13.4 Auto keypad lock Select to set the time for auto keypad lock. If the time expires, the keypad will be locked automatically. Press the Left Soft Key [Unlock] and then the * Key to unlock it. 13.5 Phone Lock To prevent your cellular phone from illegal use, you can activate Phone lock. If activated, you will need to enter the correct Phone lock password before you can use it. When you set it to on or off, the phone lock password is also required.
14. Precautions Please carefully read and observe the terms below: Safe power on Do not use your cellular phone where it is restricted to use or you might cause a disturbance or danger. Safe transportation first Please observe all related local laws and regulations. Please drive with both hands. Safe transportation should be considered when driving. Disturbance All cellular phone services may be disrupted.
Please follow related restrictions. Please switch your cellular phone off when near a medical instrument. Turn off on an airplane Please follow related restrictions. Do not use your cellular phone on an airplane. Turn off when at a gasoline station Do not use your cellular phone at a filling station or around fuels or chemicals. Turn off near exposure Area Please observe related limitations and do not use your cellular phone near an area where explosions can occur.
As described in this manual, your cellular phone can be used only in proper locations. If possible, please do not touch the antenna area of your phone. Use qualified after sales service Only a qualified technician can repair your cellular phone. Accessories and batteries Only use the authorized accessories and batteries and do not connect to incompatible products. Waterproof Your cellular phone is not waterproof. Please keep it away from water.
Connect to other devices Please read the user manual of the device to get more detailed security instructions before connecting to other devices and do not connect to an incompatible product. SOS emergency calls Make sure your cellular phone is switched on and in a service area. In idle mode, input the SOS number, then press the Dial Key. Advise where you are and do not hang up without permission.
8 Troubleshooting Common issue Reason Troubleshooting Bad connection Using the cellular phone in an area Try to avoid. where the network connection is poor, such as around a tower or basement where a radio wave cannot be sent effectively. Using the cellular phone when the Try to avoid. network is busy, such as an on-off duty time or the line is busy. Related to the distance of the send Ask your operator to provide a basis of the network. map of your service area.
settings. where the network connection is not good, please temporarily shut off your phone. Need to change battery. Insert a new battery. When you cannot receive signals, Please move to an area where your cellular phone will continue to the signal is strong or send to find a basis. A lot of battery temporarily turn off your phone. power is used, so as to limit idle time. Cannot switch on Battery is drained. Check battery volume or charge battery. Wrong SIM card SIM card is damaged.
Cannot connect to SIM card is unusable Contact your operator. Out of GSM service area. Request service area to network operator. Feeble signal. Please move to an area where signal is stronger and try again. Cannot call Wrong PIN code Call barring is activated Cancel call barring Fixed dialing is activated Cancel fixed dialing Entered the wrong PIN code three Contact your operator. times. Cannot charge Battery or charger is damaged. Change battery or charger.
Cannot add contact Contacts memory is full. Delete some contacts. Cannot set some Operator does not support the Contact your operator. functions function or you have not applied the function.
9 Safety Information and Notices Using the Cellular Phone and Charger Danger: Only use the battery and charger approved by the manufacturer. Using other brands may cause battery leakage, overheating, explosion or even fire. Caution: Keep the phone away from dust, water and damp areas. Dust, water or other liquids may cause overheating, electrical leakage, and/or phone failure. The phone, battery, charger and AC adapter are not waterproof. Keep them away from liquid.
Using the Cellular Phone Warning: Do not use the phone while you are driving. Pull over and stop your automobile to dial or answer a phone call. Usage of cellular phones in aircrafts or hospitals is prohibited. Turn the phone off to prevent interference with electronic medical devices. Follow any rules or regulations in such places. Do not use the phone at a gas station, near fuel or near chemicals.
Keep your phone away from pins. Pins can be absorbed by the phone’s receiver magnet, which may cause harm. Using the Battery Danger: Do not dispose of the battery into a fire. Doing so may cause battery explosion or even fire. If you have difficulties installing the battery, do not force the installation. This may cause battery leakage, overheating, explosion or even fire.
If the battery begins to leak or emits a strange odor, properly dispose of the battery according to local regulations. Do not throw it into a fire. Caution: Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle.
breakdown. Do not touch the charger, power cable or socket with wet hands. This may cause an electric shock. Caution: Keep the environment temperatures within the range of 0ºC ~40ºC while charging. Temperature below 0ºC or higher than 40ºC will cause insufficient charging, terminate charging or even cause the battery to explode. Unplug the charger from its power source before cleaning it. Do not place heavy objects on the power cord. This may cause electric shock or fire.
to replace the battery. Properly dispose of the battery according to local regulations. Do not throw it into a fire. Requirements for the Charger and AC Adapter Do not charge your phone under the following circumstances: sunlight, temperatures equal to or lower than 0ºC, temperatures equal to or higher than 40ºC, high humidity, dust, high vibration areas, or near a TV, a radio, etc. Specific Absorption Rate (SAR) information The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cleaning and Maintenance The cellular phone, the battery and the charger are not waterproof. Do not use them in places with high humidity like a bathroom and also avoid spilling any liquids on them.
12 MONTH LIMITED WARRANTY PERSONAL COMMUNICATIONS DEVICES (the Company) warrants to the original retail purchaser of this PCD handheld portable cellular telephone, that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) month period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s option, without charg
Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company; Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts; Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, battery leakage, blown fuse, theft or improper usage of any electrical source.
To obtain repairs or replacement within the terms of this Warranty, the product should be delivered with proof of Warranty coverage (e.g. dated bill of sale), the consumer’s return address, daytime phone number and/or fax number and complete description of the problem, transportation prepaid, to the Company at the address shown below or to the place of purchase for repair or replacement processing.
No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product. Some states or provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitation or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to province.
