11.15.6 Controlling Screen Display
During Digital Matrix operations of page scan or alert popup on other monitors, you can instantly
suspend the predefined task on a monitor, and change its screen divisions or remain on specific
channels when you spot suspicious events.
1. On the main screen, click ViewLog and select Digital Matrix Channel Lock. This dialog box
appears.

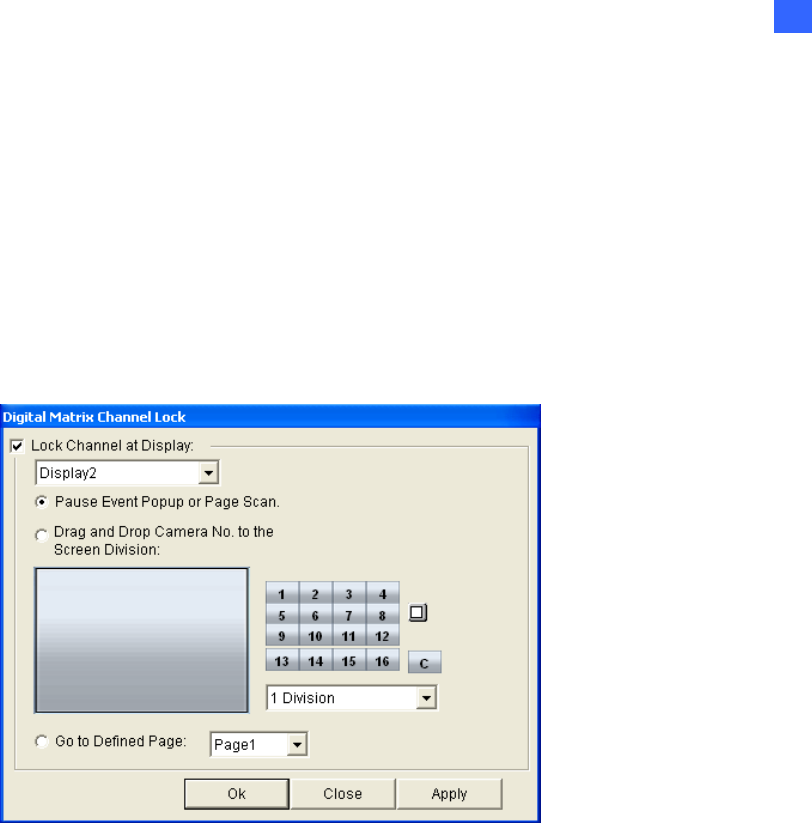

Figure 11-89
2. Use the Display list to select the monitor to be configured.
3. Select Lock Channel at Display to control the specific monitor.
4. Select one of the three options:
 Pause Event Popup or Page Scan: Suspends alert popup and page scan operations.
 Drag and Drop Camera No. to the Screen Division: Displays desired camera channels.
Use the Division list to select the screen divisions. Drag and drop the camera numbers to the
desired positions on the divisions. To clear the assignment, drag and drop the “C” icon to that
position.
 Go to Defined Page: Displays a specific scan page.
5. Click Apply or OK to apply the settings.
