270
Address Book
The Address Book not only keeps connection information about the RPB server, but also allows quick
connection and auto login to the RPB server. Follow these steps to create an entry in Address Book:

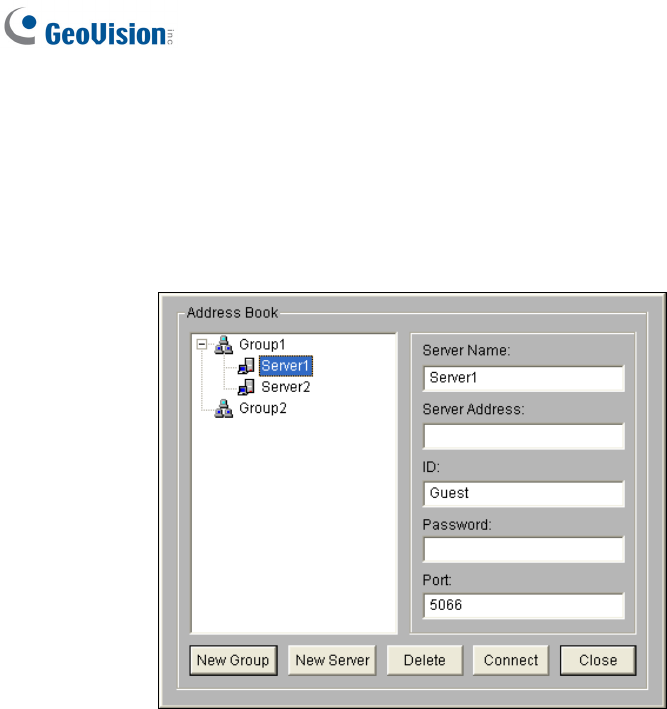

Click the Address Book button (No.9, Figure 4-47) to bring up the following dialog box.
Figure 4-51
Click the New Server button and provide information to the fields:
Server Name: Give a descriptive name to the server.
Server Address: Enter the IP address or domain name of the server.
ID: Enter an ID that was already created in the server.
Password: Enter the password associated with the ID.
Port: Use the default port 5066, unless otherwise necessary.
You may create a group (click the New Group button) before adding any user. Click on any group, and
then click the New Server button to add users to that group.
Click the Close button to finish the setup; Delete to remove the entry from Address Book; Connect to
connect the RPB Client to the RPB Server instantly.
