240

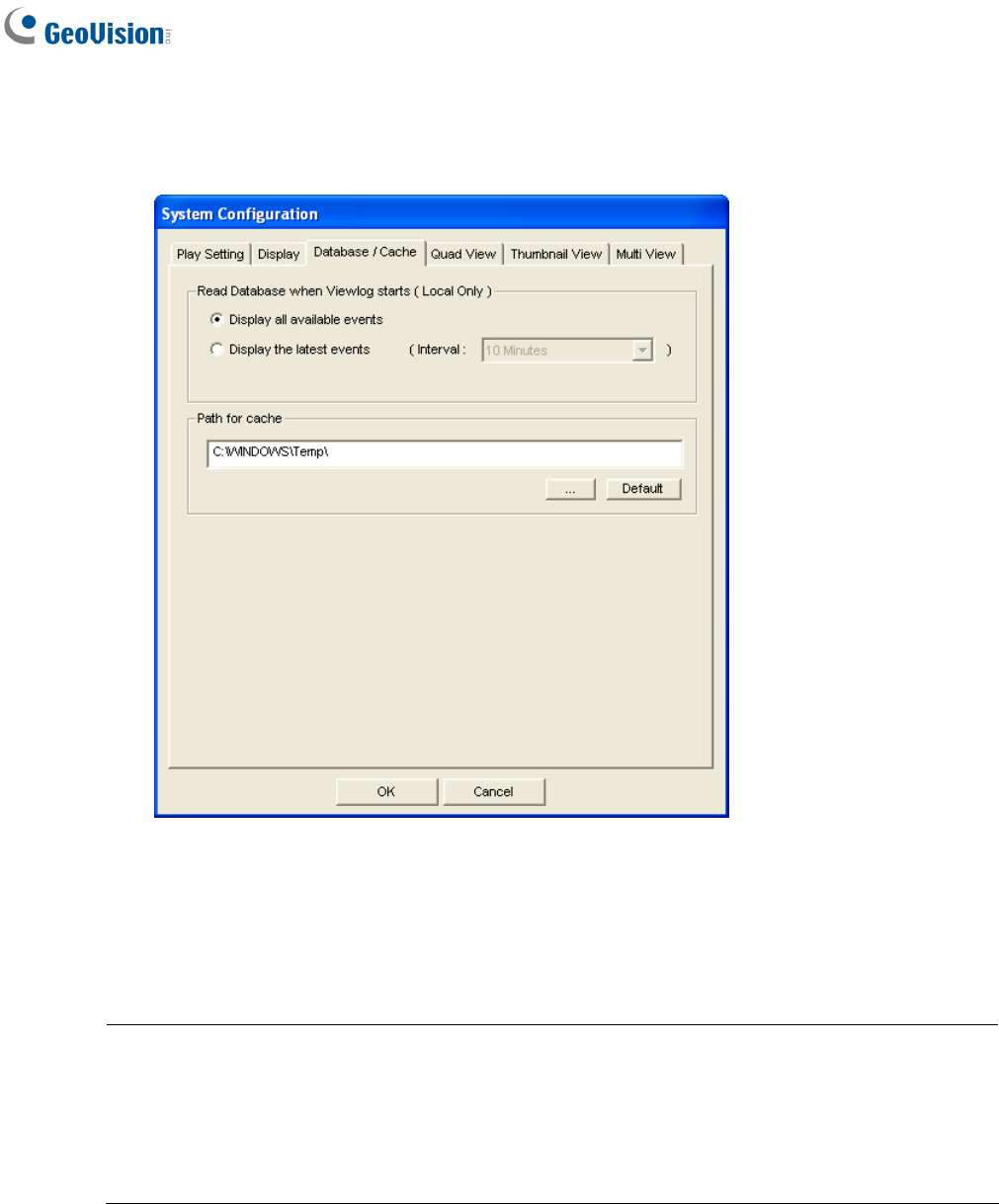

[Database / Cache]
Specify the duration of event files to be loaded at ViewLog startup.
Figure 4-25
Display all available events: Load all recorded event files.
Display the latest events: Check this option and select time length of the event files to be
loaded.
Note: If you check the Display the latest events option, the Event List will not be refreshed as the
latest event is recorded. To refresh the List, click the Advanced button, select Reload Database,
select DVR, and then select
Default Setting to reload the specified time length of the event files, or
Read All to reload all record event files.
[Path for Cache] A cache is memory location that is used to store data temporarily, when you are
using the function of Save AVI, Export DVD or Network Buffering. If the default path does not have
sufficient space for this temporary storage, assign another path by clicking the […] button.
