3.20 Video Analysis Schedule
A schedule monitoring has been added to most of Advanced Video Analysis and Video Analysis
functions. This feature allows you to maximize the use of cameras and video analysis effects on each
camera. With this feature, you can set multiple video analysis effects on each camera at different
times.
For example, previously when you want to configure Counter Setting to count the number of people
during work hours and also configure Intrusion Alarm Setting for thief detection after work hours, you
will require 2 cameras at the same location for this scenario. But with the feature, you can set a
schedule with just 1 camera to do Counter Setting between 7AM-5PM (working hours) and Intrusion
Alarm Setting between 5PM-7AM (after work hours).
Only a few functions of video analysis do not support the schedule feature. These functions are
Camera Popup Setting, Advanced Motion Detection, Video Lowpass Filter Setting and
Panorama Setting.
To set the Video Analytic schedule:
1. Click the Configure (No. 14, Figure 1-2) button, select Video Analysis or Advanced Video
Analysis, select a supported analysis function, select the cameras to be configured and click
Configure. For this example, Counter/Intrusion Alarm Setting is selected and this dialog box
appears.

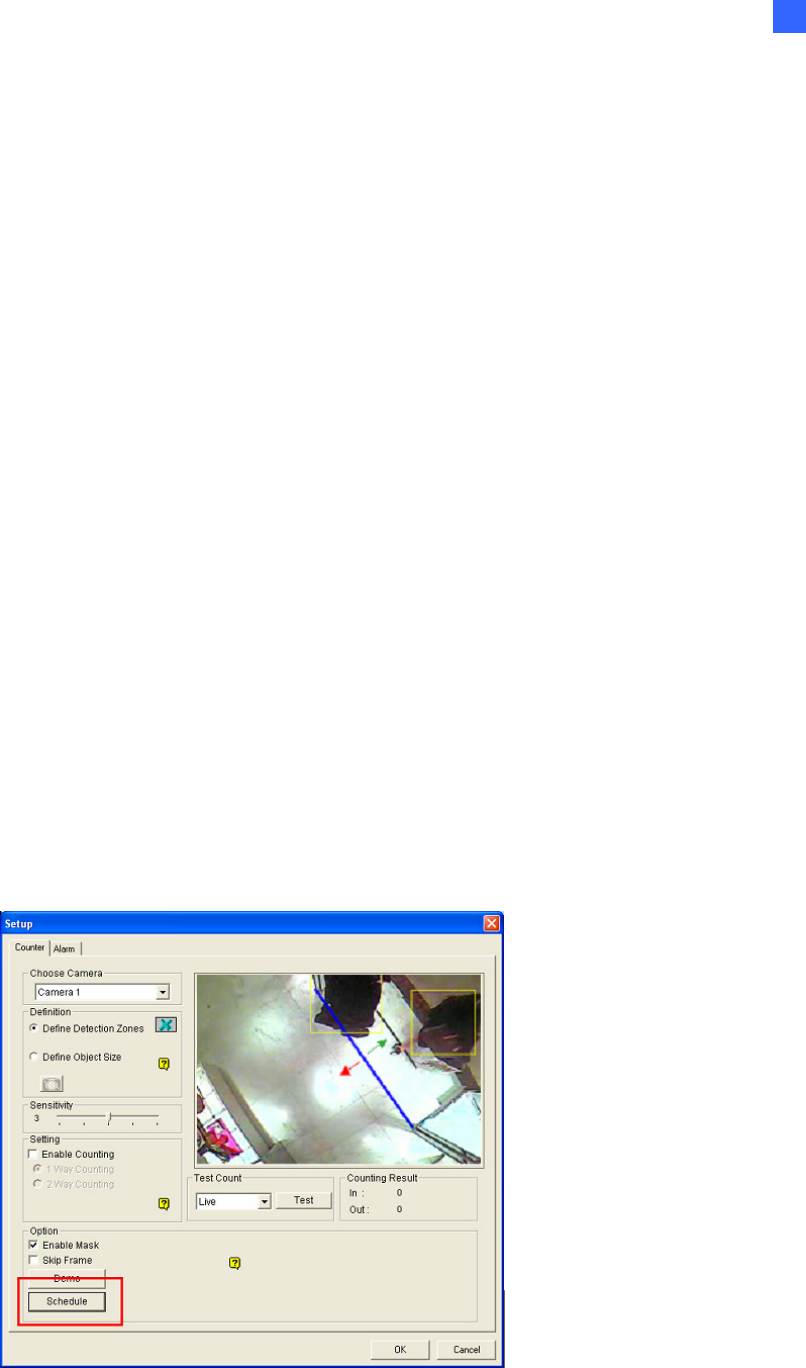

Figure 3-53
