Owner's manual

Configuring Main System
103
1
Setting up a Third-Party Fisheye Camera or Lens
z To set up a camera installed with an ImmerVision IMV1 Panorama Lens, click the camera
number and select IMV1 Panomorph.
z For cameras using other third-party fisheye lenses, click the camera number and select Geo
Fisheye. You will need to adjust the image alignment for optimal results. Right-click the camera

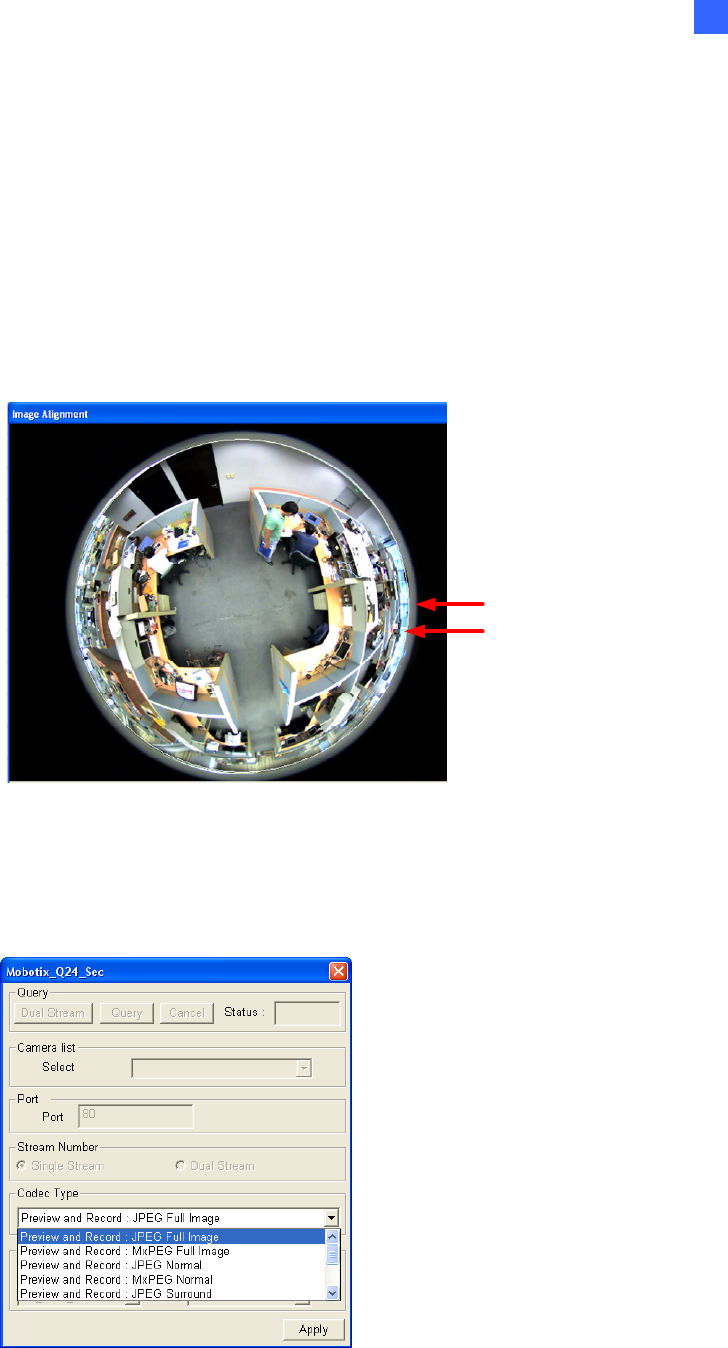

image, select Fisheye Option and select Image Alignment. In the dialog box, align the dotted
circle with the outer edge of the camera image, and then align it with the inner edge of the image
frame.
Outer Edge
Inner Edge
Figure 1-84
z If you are using a MOBOTIX Hemispheric Q24 camera, you can select the different view modes
when adding the camera. After the dialog box below appears, select a view mode from the
Codec Type section.
Figure 1-85
