k Sample Setup

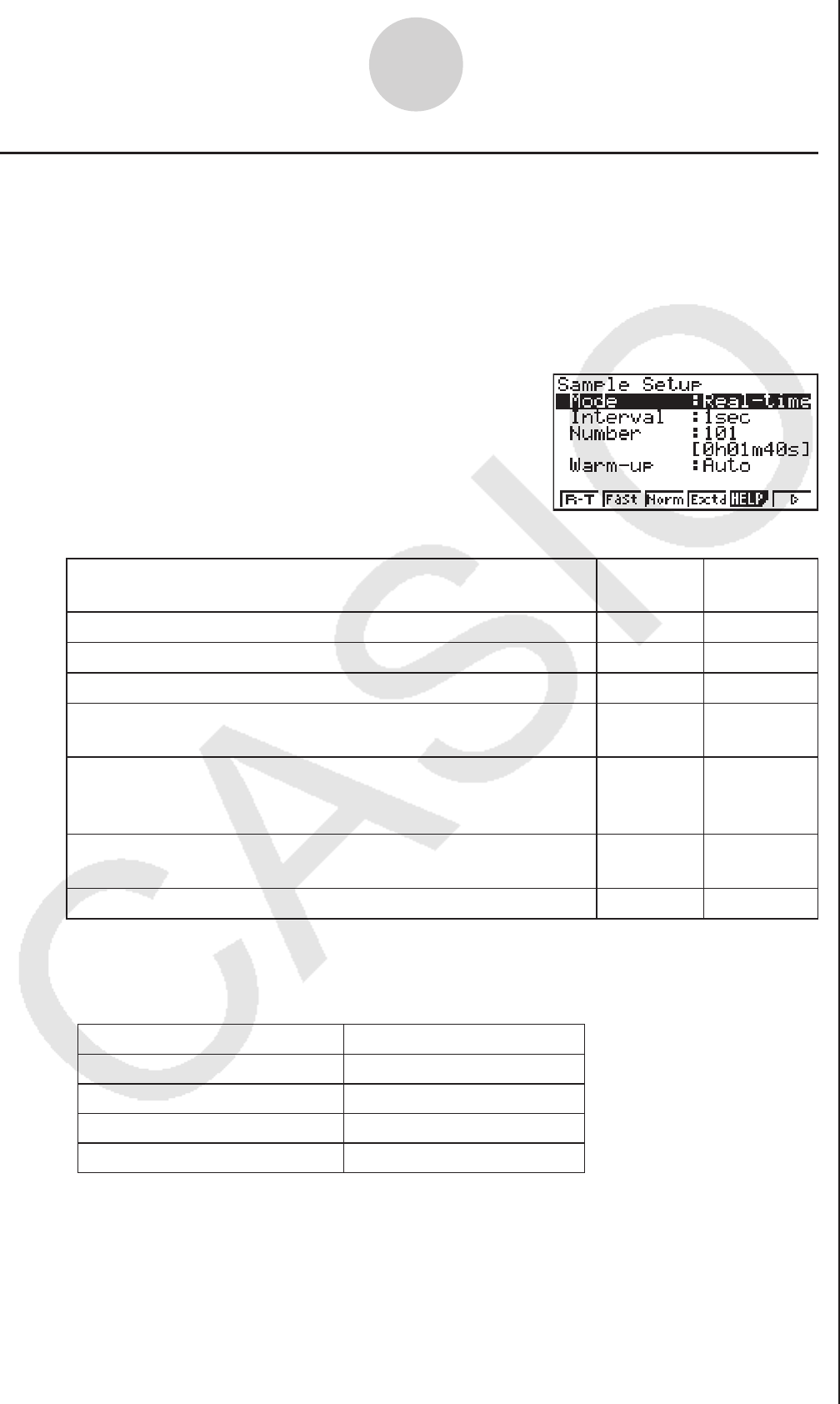

The Sample Setup screen lets you configure a number of settings that control sampling.
u
To configure Sample Setup settings
1. While the Advanced Setup menu (page 3-1) is on the display, press c(Sample).
• This displays the Sample Setup screen, with the “Mode” line highlighted, which indicates
that you can select the sampling mode.
2. Select the sampling mode that suits the type of sampling you want to perform.
To do this:
Press this
key:
To select
this mode:
Graph data in real-time as it is sampled
1(R-T)
Realtime
Perform sampling of high-speed phenomena (sound, etc.)
2(Fast)
Fast
Perform sampling over a long time (weather, etc.)
4(Extd)
Extended*
Sample sound using the built-in microphone (EA-200 only)
6( g)
1(Snd)
Sound
Record the time of the occurrence of a particular trigger
event as an absolute value starting from 0, which is the
sampling start time
6( g)
2(Clck)
Clock
Perform periodic sampling, from a start trigger event to an
end trigger event
6( g)
3(Priod)
Period
Perform sampling other than that described above
3(Norm)
Normal
* While performing measurements with the Extended mode, the EA-200 will enter a
power off sleep state while standing by.
• Note that the mode you select also determines the channel(s) you can use.
Sampling mode: Selectable Channel(s)
Realtime, Extended, Normal CH1, CH2, CH3, SONIC
Fast CH1, Mic
Sound Mic
Clock, Period CH1
