Using Advanced Setup
uu
uu
u To specify the trigger threshold value and trigger edge type
Perform the following steps when “Fast”, “Normal”, or “Clock” is specified as the sampling
mode (page 3-5).
1. Move the highlighting to “Threshold”.
2. Press 1(EDIT) to display a dialog box for specifying the trigger threshold value, which is
value that data needs to attain before sampling starts.
3. Input the value you want, and then press w.
4. Move the highlighting to “Edge”.
5. Press one of the function keys described below.
6. Press w to finalize Trigger Setup and return to the Advanced Setup menu (page 3-1).
uu
uu
u
To configure trigger threshold, trigger start edge, and trigger end edge settings
Perform the following steps when “Period” is specified as the sampling mode (page 3-5).
1. Move the highlighting to “Threshold”.
2. Press 1(EDIT) to display a dialog box for specifying the trigger threshold value, which is
value that data needs to attain before sampling starts.
3. Input the value you want.
4. Move the highlighting to “Start to”.
5. Press one of the function keys described below.
To select this type of edge: Press this key:
Falling 1(Fall)
Rising 2(Rise)
6. Move the highlighting to “End Edge”.
7. Press one of the function keys described below.
To select this type of edge: Press this key:
Falling 1(Fall)
Rising 2(Rise)
8. Press w to finalize Trigger Setup and return to the Advanced Setup menu (page 3-1).

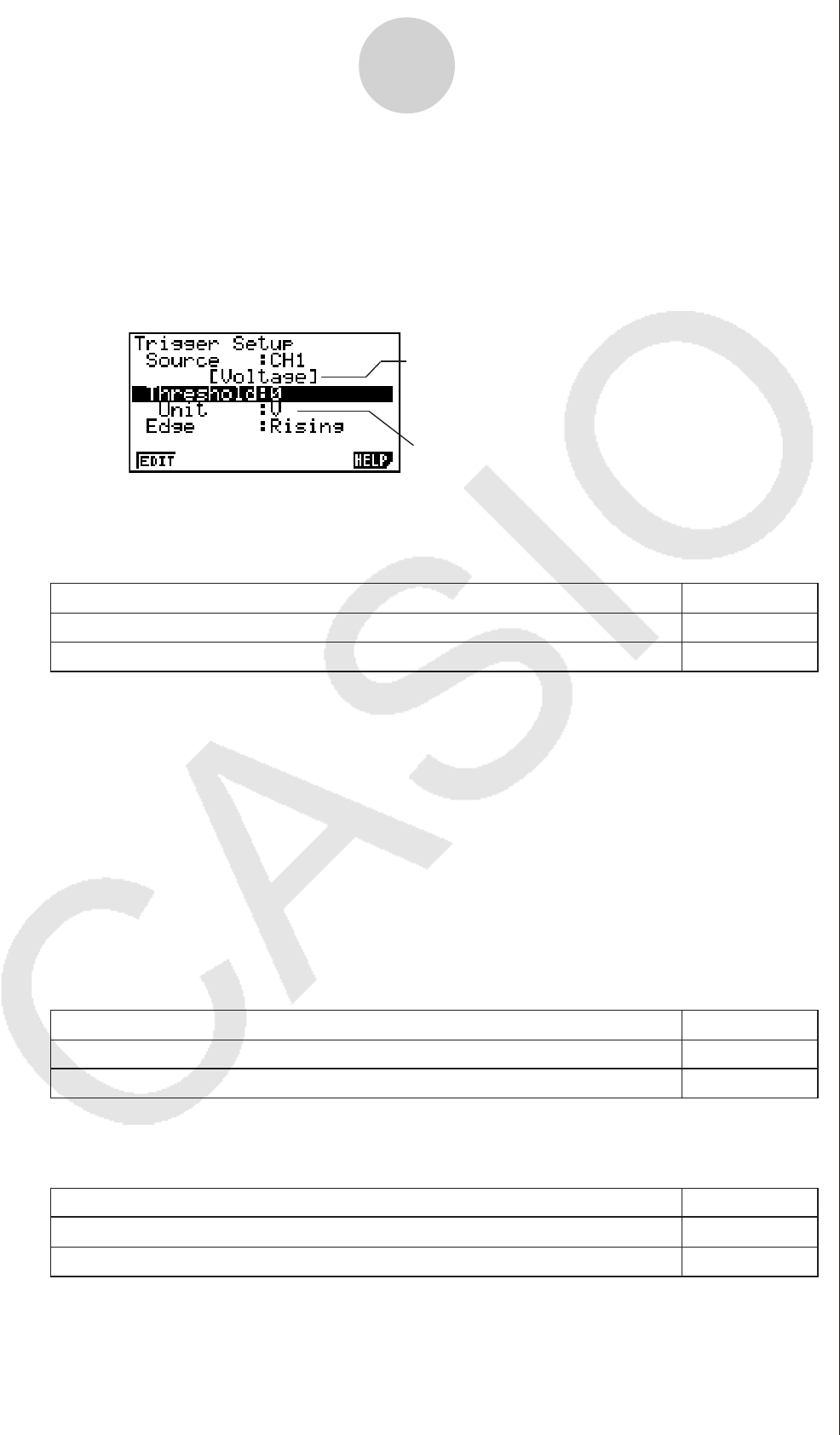

Measurement unit supported by assigned sensor
Sensor assigned to CH1 or SONIC by Channel Setup
(page 3-3)
To select this type of edge: Press this key:
Falling 1(Fall)
Rising 2(Rise)
