4. Operation and Current consumption
1. Operation check
1 Unti-shock, Battery operations
2 Switch, buttons operations
3 SD CARD insersion/eject operation, battery cover open/close operation
4 Resolution and color repeatability check
5 AE operation
6 Charging and cradle connection (USB function etc.) check
7 Appearance check
8 Buzzer check (EX-S1 only)
9 Recording with a microphone, speaker and earphone sound production, and remote controller operation
check (EX-M1 only)
2. Current consumption test
Current consumption (Vcc1 = 3.60 ± 0.05 [V])
• Make sure that current consumption is less than 450 mA in PLAY mode.
• Make sure that current consumption is less than 530 mA in REC mode.
• Make sure that current consumption is less than 2mA when power is turned OFF.
4
5 8
9

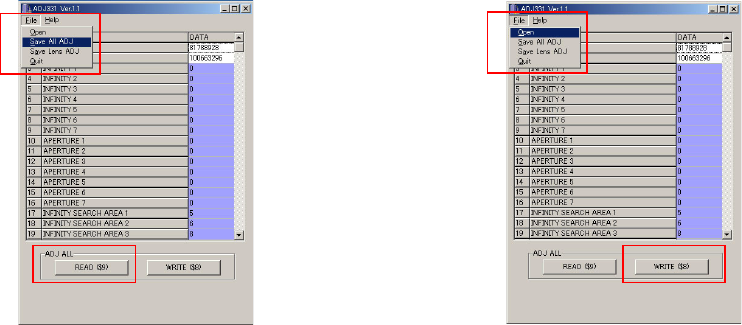

5 Save the information in the computer.
6 Replace the MAIN PCB.
7 Perform the above 1 to 3 after replacing the MAIN PCB without any problem.
8 Open the file which is saved above.
9 Click "WRITE" button of "ADJ ALL".
0 After adjustment, change "1. USB TCC ON" to "2. USB TCC OFF".
