4-22 Axxius 800 - Release 2.2

Configuration

Setup of DS0 Management Channel

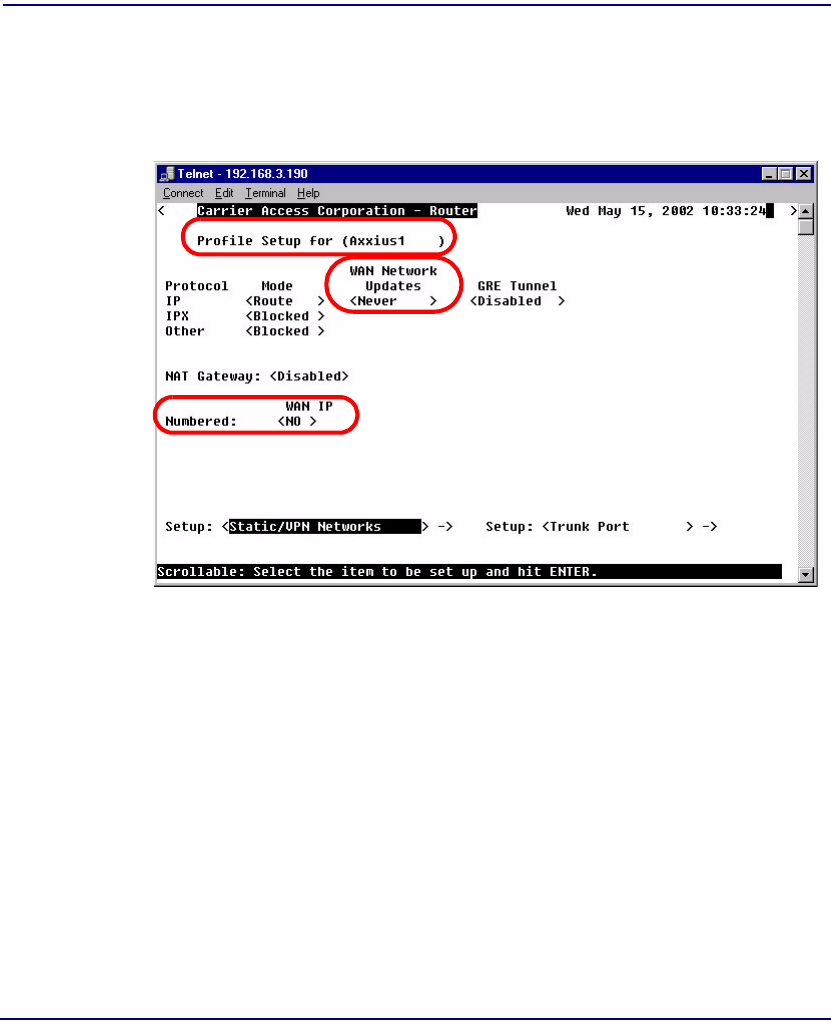

2. Set the following on this screen:

Rename RemoteUnit (default name) to Axxius1.

Set WAN Networks Updates for IP to <Never>.

Set WAN IP: Numbered to <No>.

[TAB] to Setup: <Static/VPN Networks > (scroll to this selection if it is

not displayed).

Note: if the IP Protocol is set to <Bridge > this option will not be

available.

4. Set Setup Static: to <IP Networks> (scroll to this selection if it is not

displayed)

5. Select

[CTRL A] to add a Static IP Address.
