Axxius 800 - Release 2.2 4-19

Configuration

Setup of DS0 Management Channel

Configure Trunk Connections

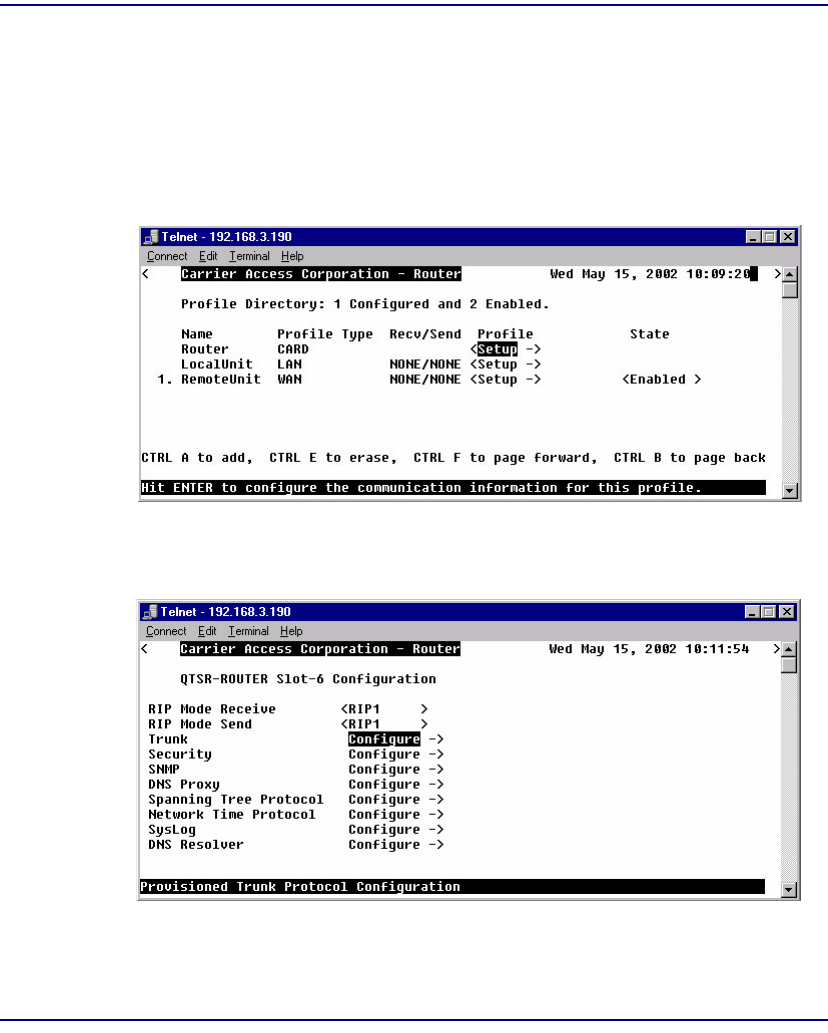

1. Select Configuration < Profile Directory > -> from the Router Main

Menu and select [

ENTER].

2. Select Router CARD <Setup - > from the Profile window and select

[

ENTER].

3. Select Trunk <Configure - > and select

[ENTER].
