Axxius 800 - Release 2.2 4-13

Configuration

Quick Configuration Reload

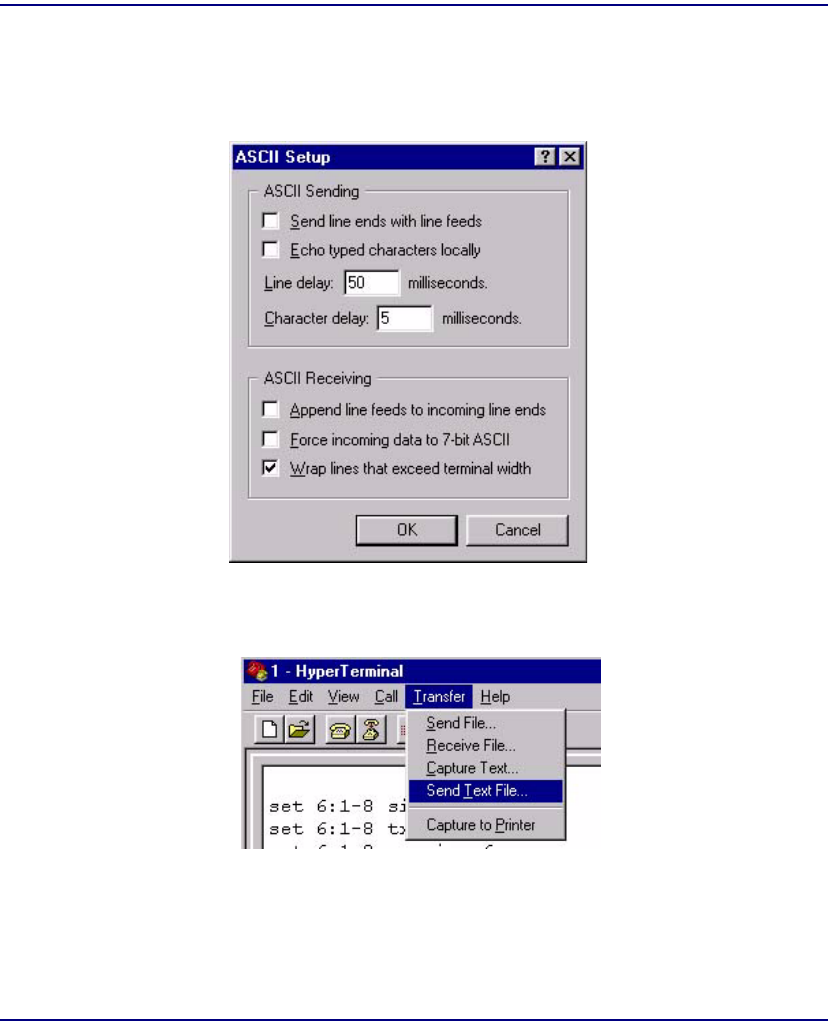

3. Select the ASCII Setup button.

4. Set the Line delay to 50 milliseconds and the Character delay to 5

milliseconds.

5. Select the [OK] button back to the Main HyperTerminal screen.

6. Select Transfer/Send Text File... from the menu bar.

Hyperterm will now send the configuration to the Axxius exactly as it was saved

in the Download Config File process.
