Low Speed Protection Card
LEDs
LEDs

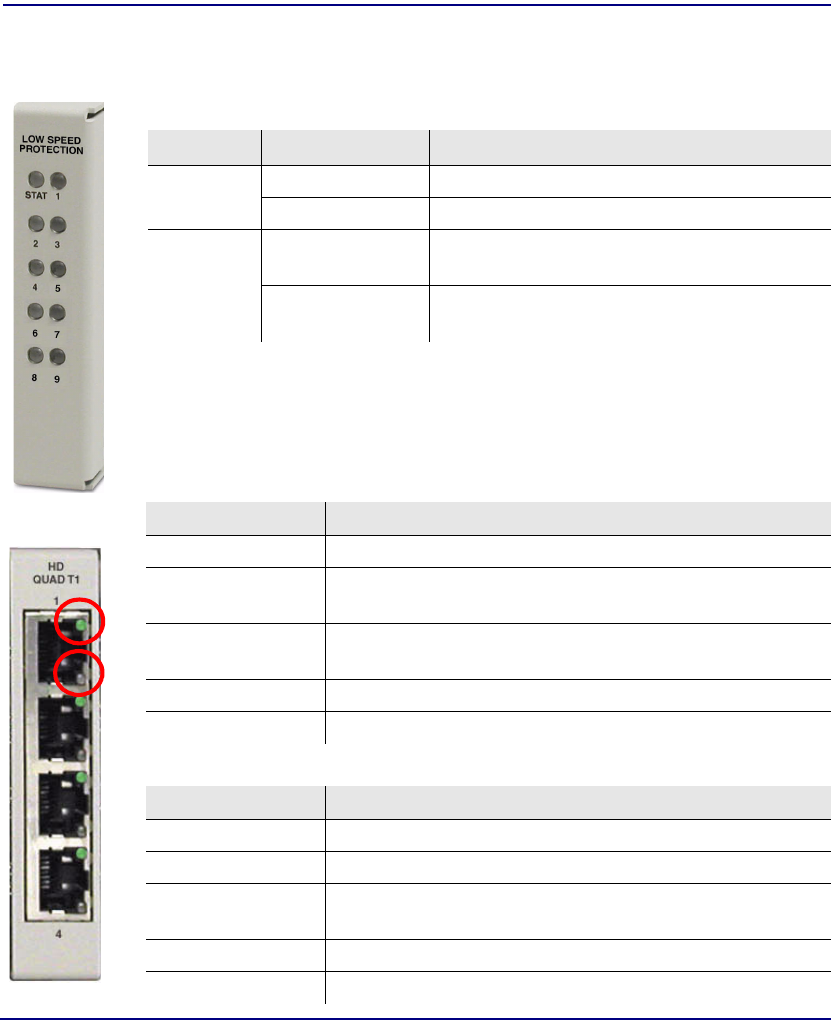

The Low Speed Protection card has 10 LEDs, which are defined below.
Each channel on the Quad T1 card has two LEDs. The description of the top
LED is shown below, the bottom LED is not used with this application.
Quad T1 Backup Card
Quad T1 Protected Card
LED State Description
STAT Green Enabled
Red Disabled
Slot Status
(1-8)
Off The corresponding slot is not being protected
via the Protection card.
Yellow One or more ports of the corresponding slot are
being protected via the Protection card.
State Description
Off Not set up as Backup
Green Port is switched to protection mode (the port it is protecting
will be flashing green)
Red Displays red on backup card after other T1 port in same line
is set up to be protected
Flashing Green Port is set up and ready to grant backup when needed
Flashing Yellow Port is booting up to be backup card
State Description
Off Not set up as Backup
Green Protected port is healthy and not in protected mode
Red Displays red on backup card after other T1 port in same line
is set up to be protected
Flashing Green Port has failed and the Backup card has granted protection
Flashing Yellow Port is booting up to be backup card
