Axxius 800 - Release 2.2 15-19
Terminal Server Router Card
LEDs
LEDs

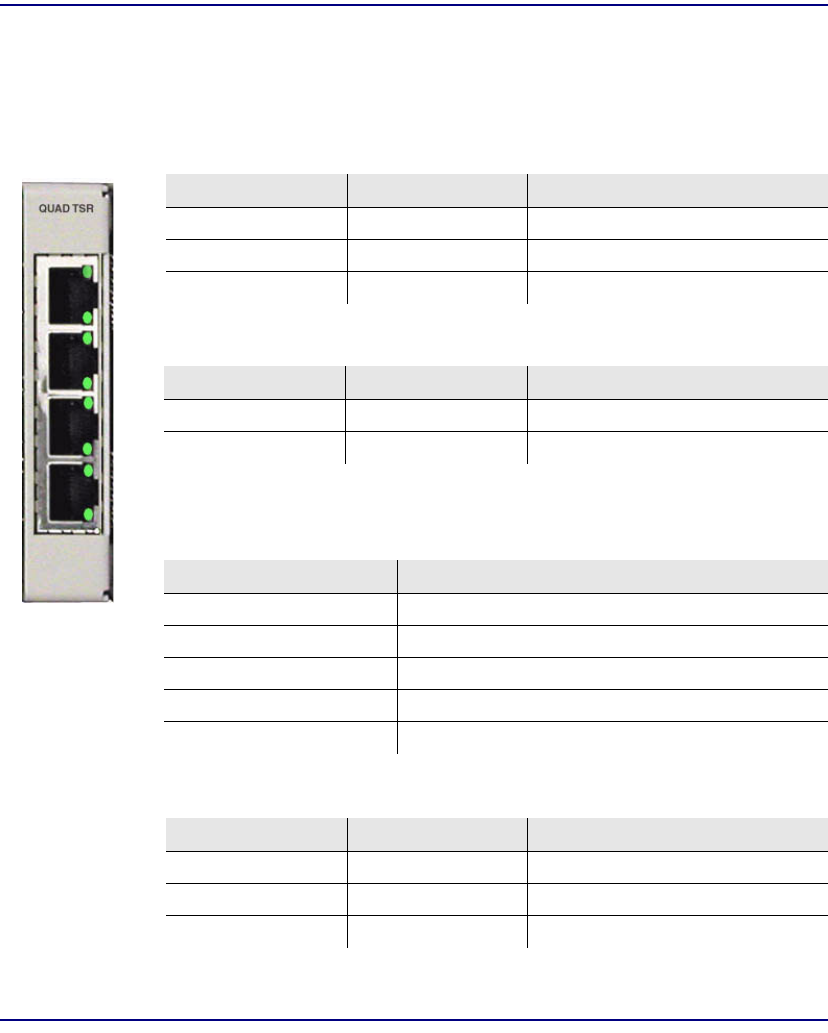

The TSR service card has 2 LEDs per port.
At Power-up
Normal Operation
Port Set for Ethernet
Top LED indicates 100M Link, Bottom LED indicates 10M Link
Port Set for RS-232
TOP LED Bottom LED Description
Off Off Loss of power
Red Red Card is inoperative
Flashing Red Flashing Red Self-test or Boot in-process
TOP LED Bottom LED Description
Green Solid (Link) Green Solid (Link) Port set for Ethernet - see below
Flashing Red Flashing Red Self-test or Boot in-process
State Description
Off No Ethernet link
Green Link but no activity
Red Flashing Current Ethernet collision
Green Flashing Current Ethernet receive
Yellow Flashing Current Ethernet transmit
TOP LED Bottom LED Description
Yellow Flashing Yellow Current transmit
Yellow Flashing Green Current receive
Yellow Off No Activity
